VW Tiguan Original Rear View Camera

Complete kit for retrofitting an original reversing camera for VW Tiguan AD1, AX1
Fits vehicles with:
- Navigation system MIB2 (PR no.: 7UF, 7UG, 7UT)
- Option infotainment MIB3 (PR no.: 8AR)
- Composition Media (PR no.: I8E or I8F) in conjunction with PR no.: 9WT or 9S8 or QV3

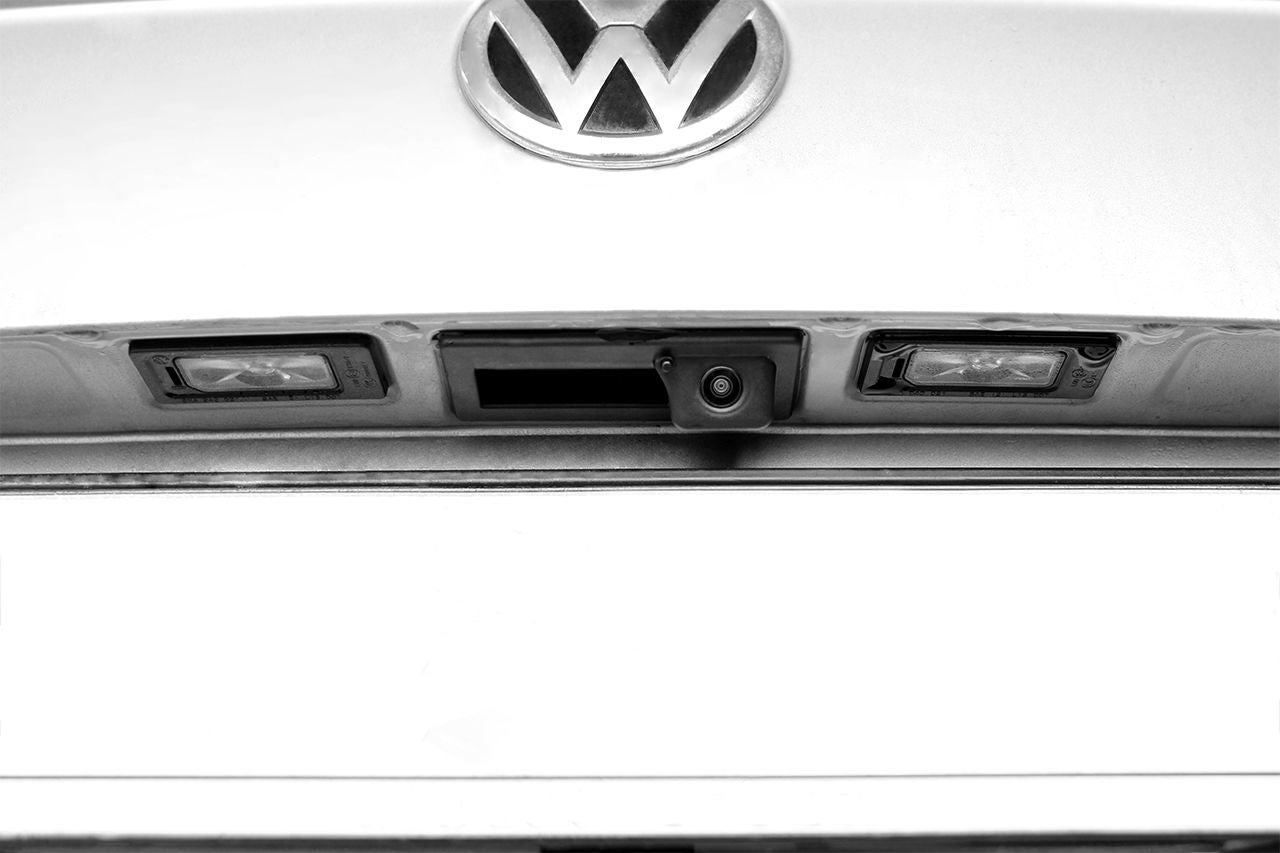

Integrated camera in the rear handle

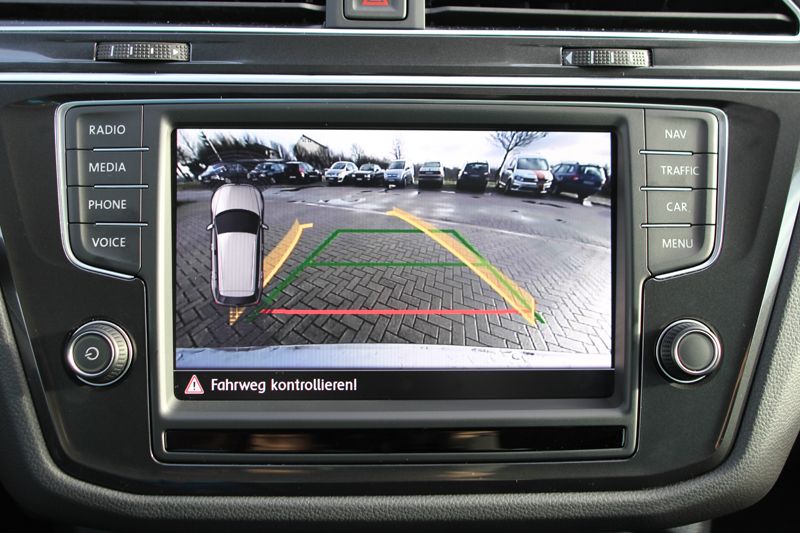

Displays the rear area on the navigation screen
Automatic display switching when reversing
Much easier orientation thanks to guide lines and fields that are integrated into the video image and change depending on the steering wheel angle.

Two modes are available:
- Parking mode 1 (Perpendicular parking): Useful for parking in a space that is perpendicular to the direction of travel or for backing into a longer driveway
- Parking mode 2 (Longitudinal parking): Useful for parking along the direction of travel at a curb

Selectable options:

- Version 1
- Version 2 (with additional option to retrofit Trailer Assist*)

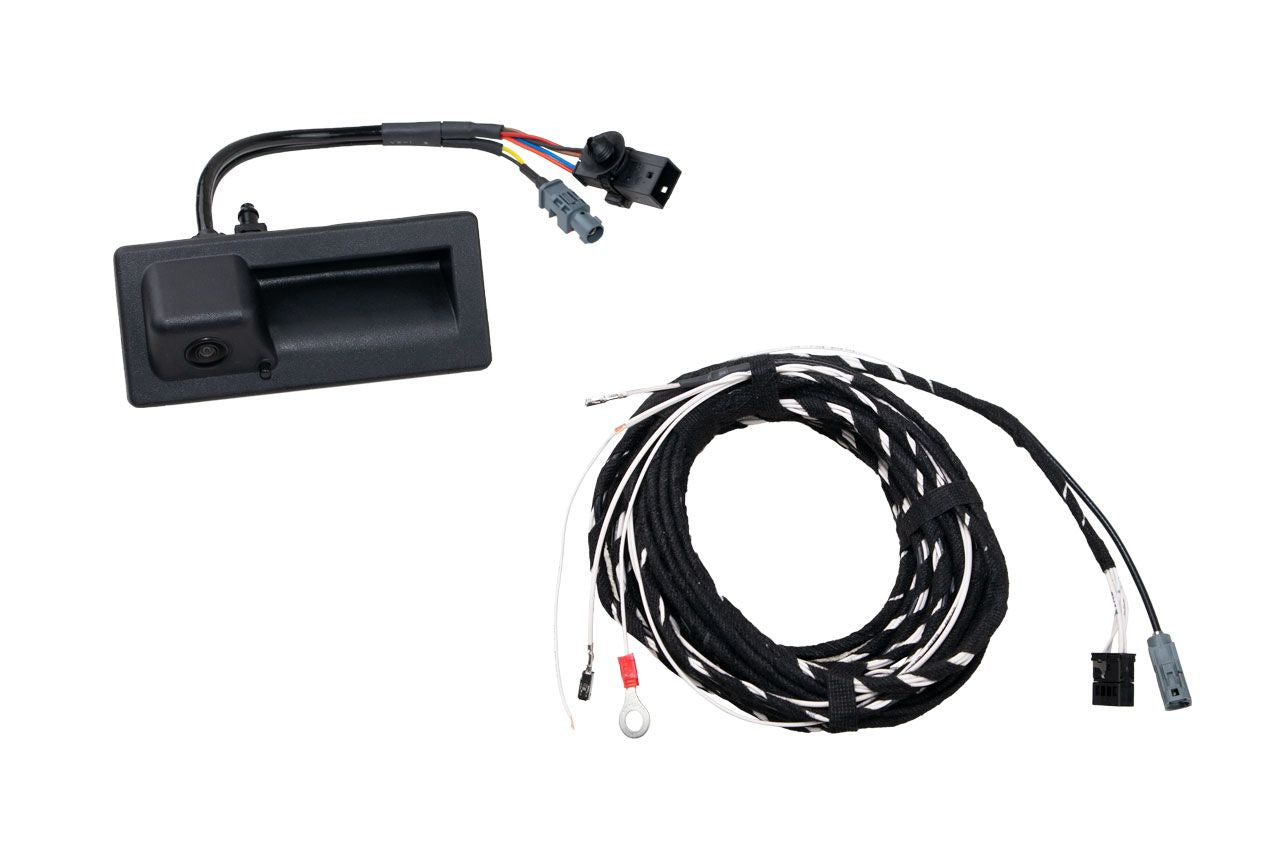

Scope of delivery:

- Cables
- Handle with integrated camera
- Encoding dongle

Note:

- Without navigation, the main part with part numbers 3Q0035819X and 3Q0035820X is not compatible
- The camera has a connection to the cleaning system, if necessary also order item 45757
- *only in combination with Park Assist, PR no.: 7X5
- After installation, coding is required.
