Steelmate PTS400EX (DP)

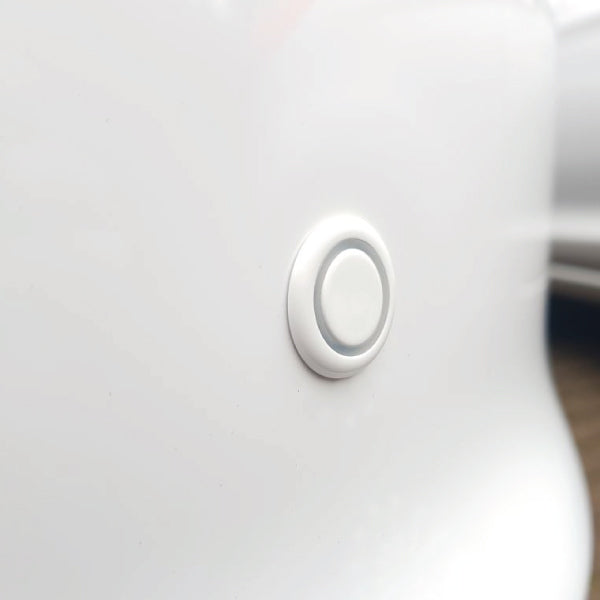

The Steelmate PTS400EX (DP) is a premium 4 sensor parking sensor kit that can be used front or rear, and features an OEM sounding buzzer. The system can be programmed to ignore tow bars, bumpers or spare wheels. The PTS400EX (DP) is compatible with our DS1 & DS2 visual displays and can be used as a 2 sensor system front or rear if required. The sensor hole size is 19mm in diameter. The visible external diameter of the sensor head is 22.9mm with a depth of 20.1mm and they feature detachable cables and the ability to change the angle of the sensor head between 4 and 10 degrees with detachable mounting rings included in the kit.

Technical parameters:

- Voltage: 12/24V
- Temperature: -40 to >+80°C
- Speaker volume: 70 to >90dB
- Range (rear): 0.3 to >1.5m
- Range (front): 0.3 to >1.0m

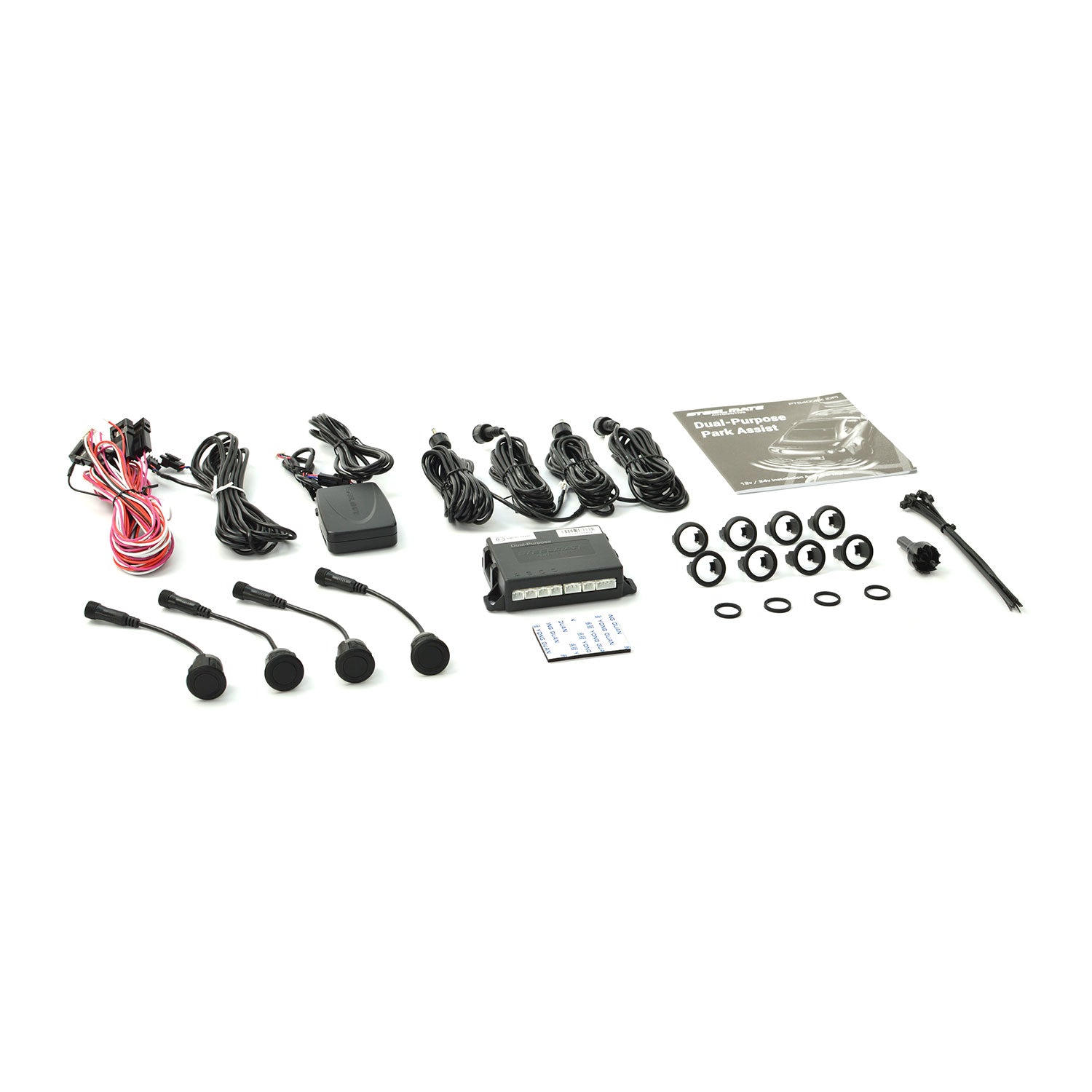

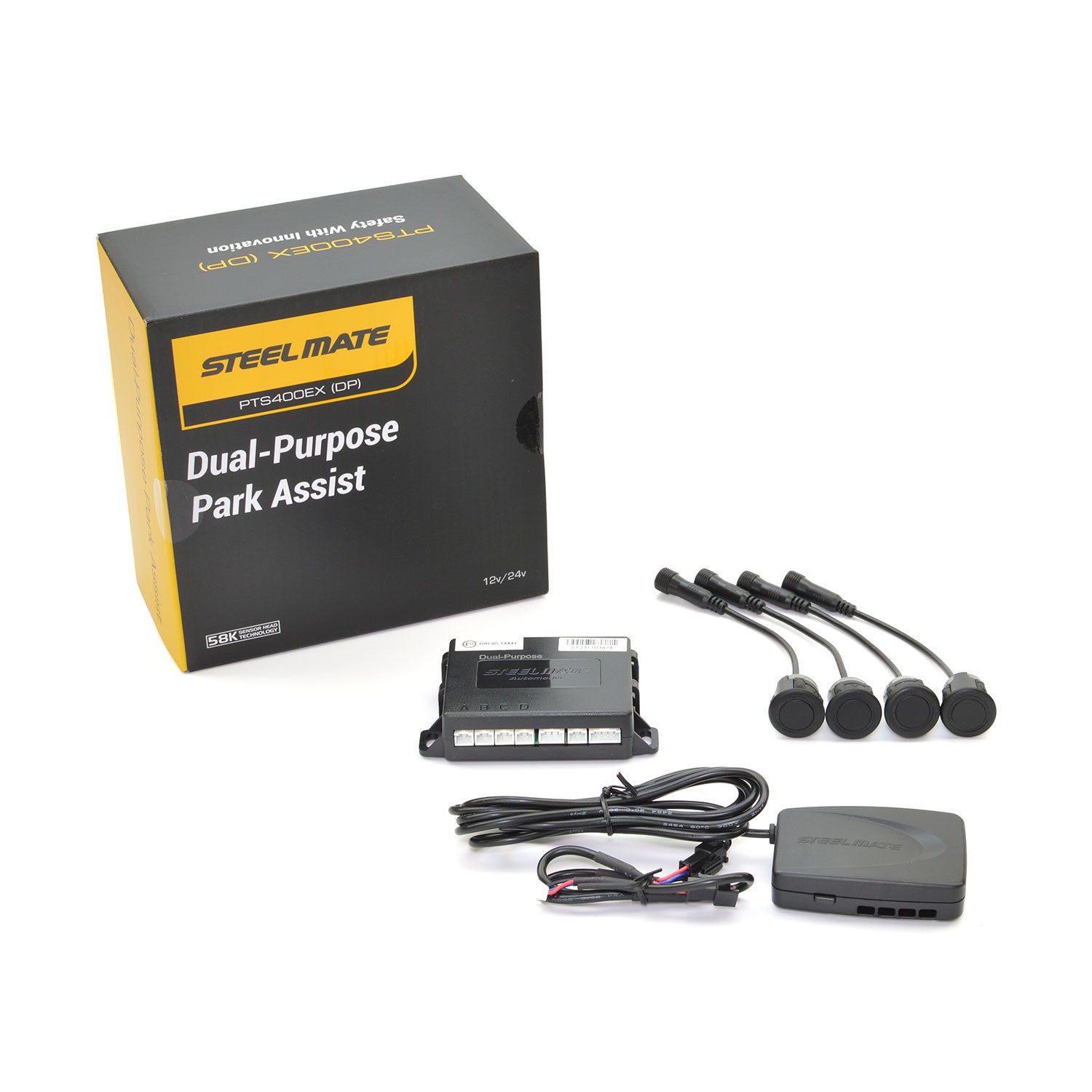

Included in the kit:

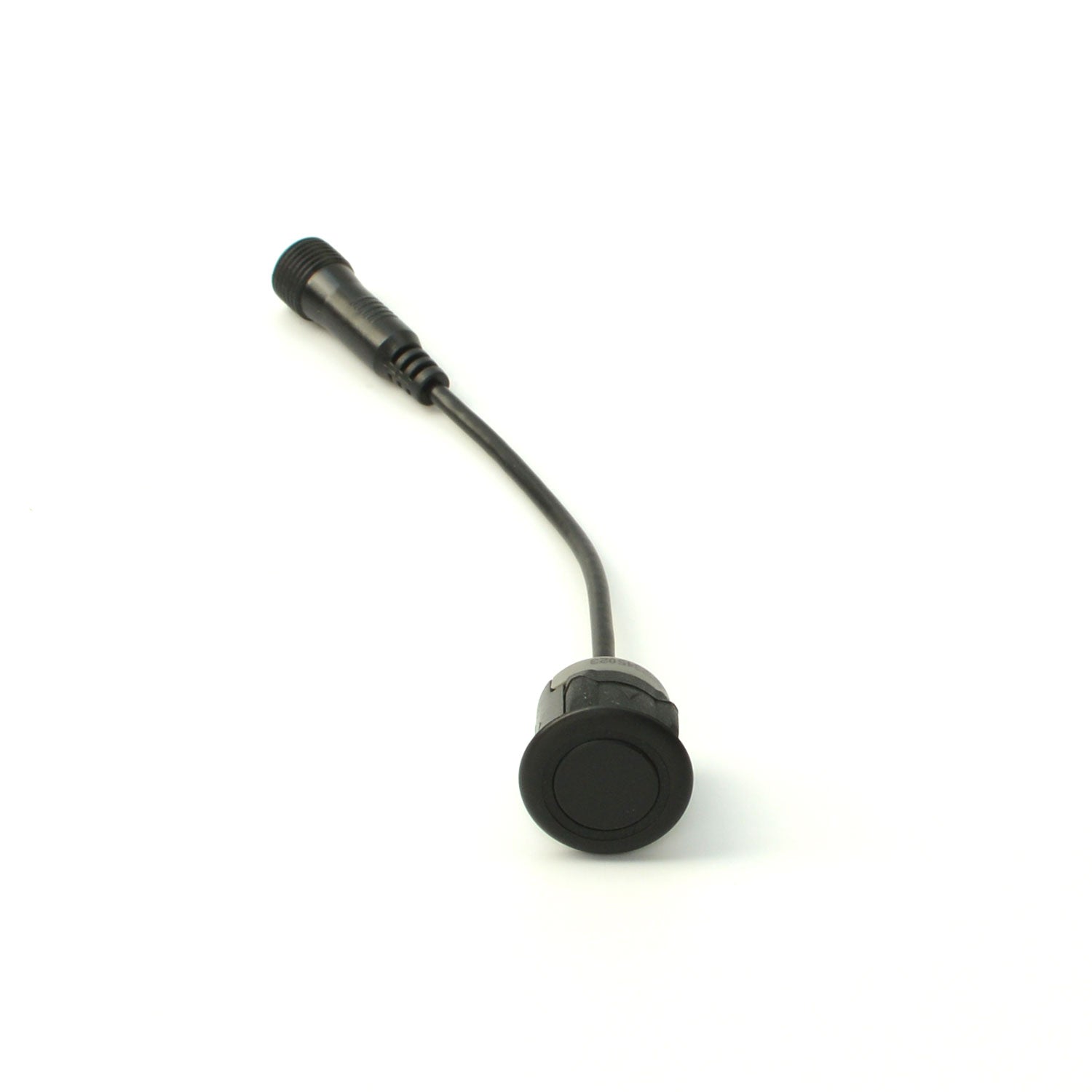

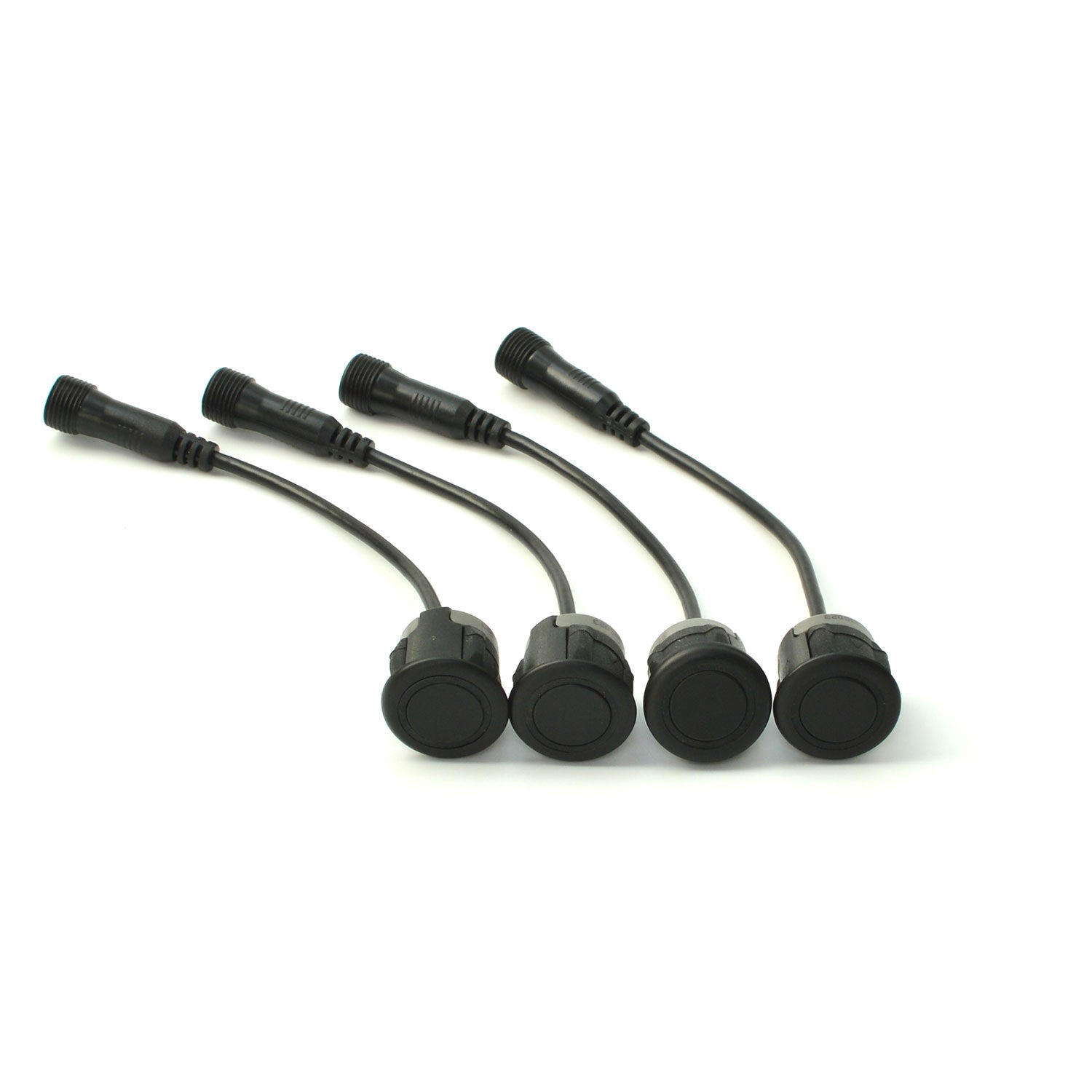

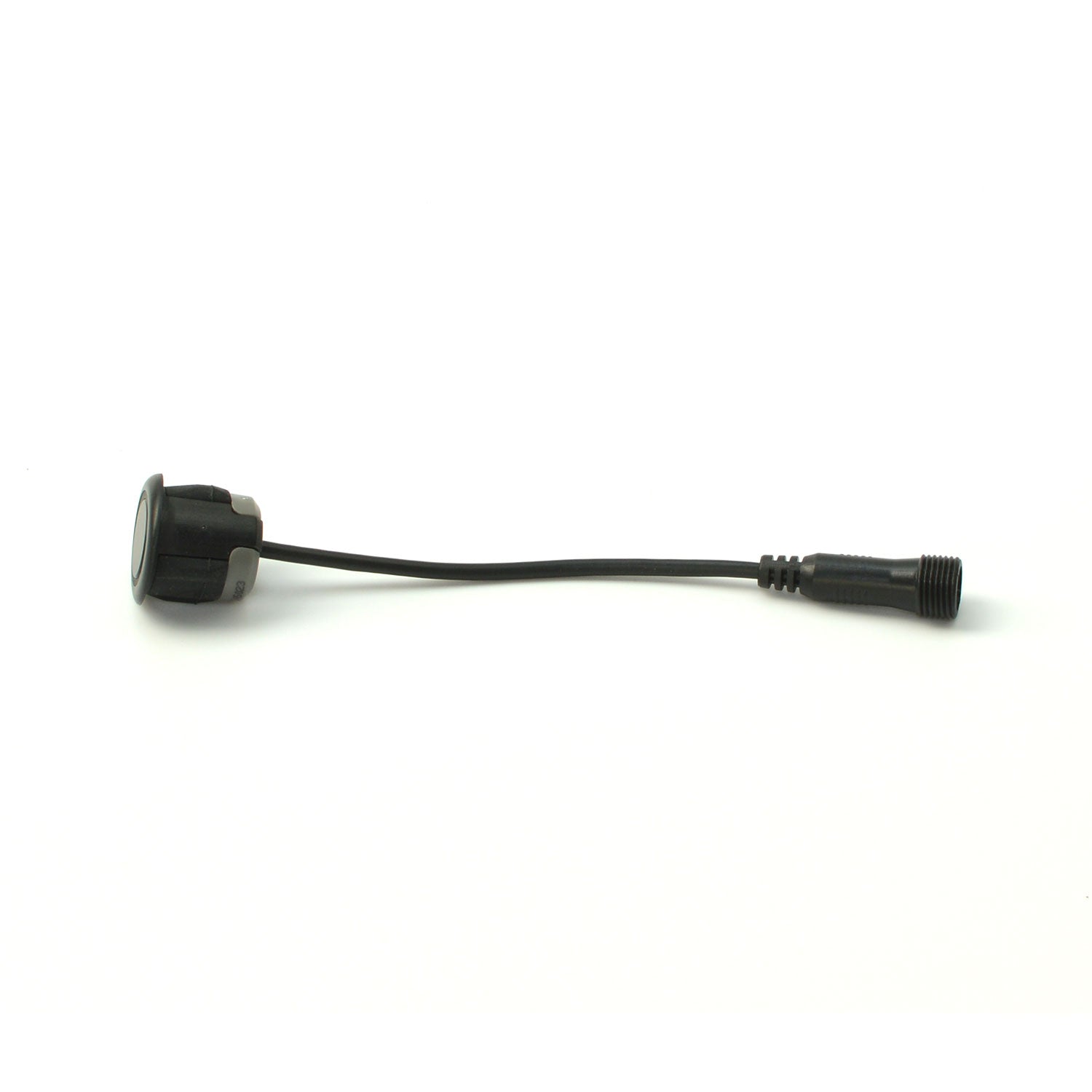

- 4 x sensor heads with 4 degrees
mounting ring.

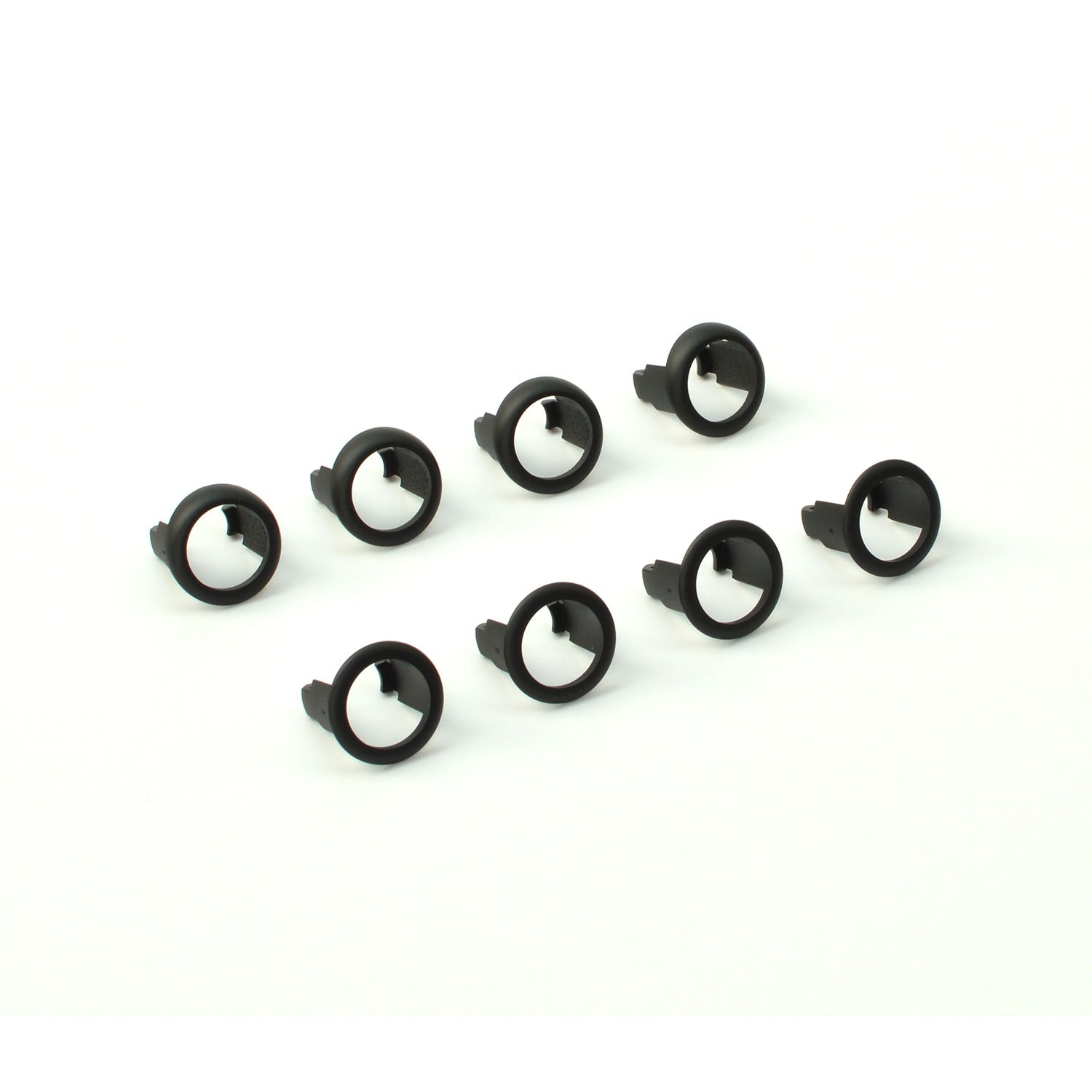

- 4 x 0 degree mounting ring.
- 4 x 10 degree mounting ring.

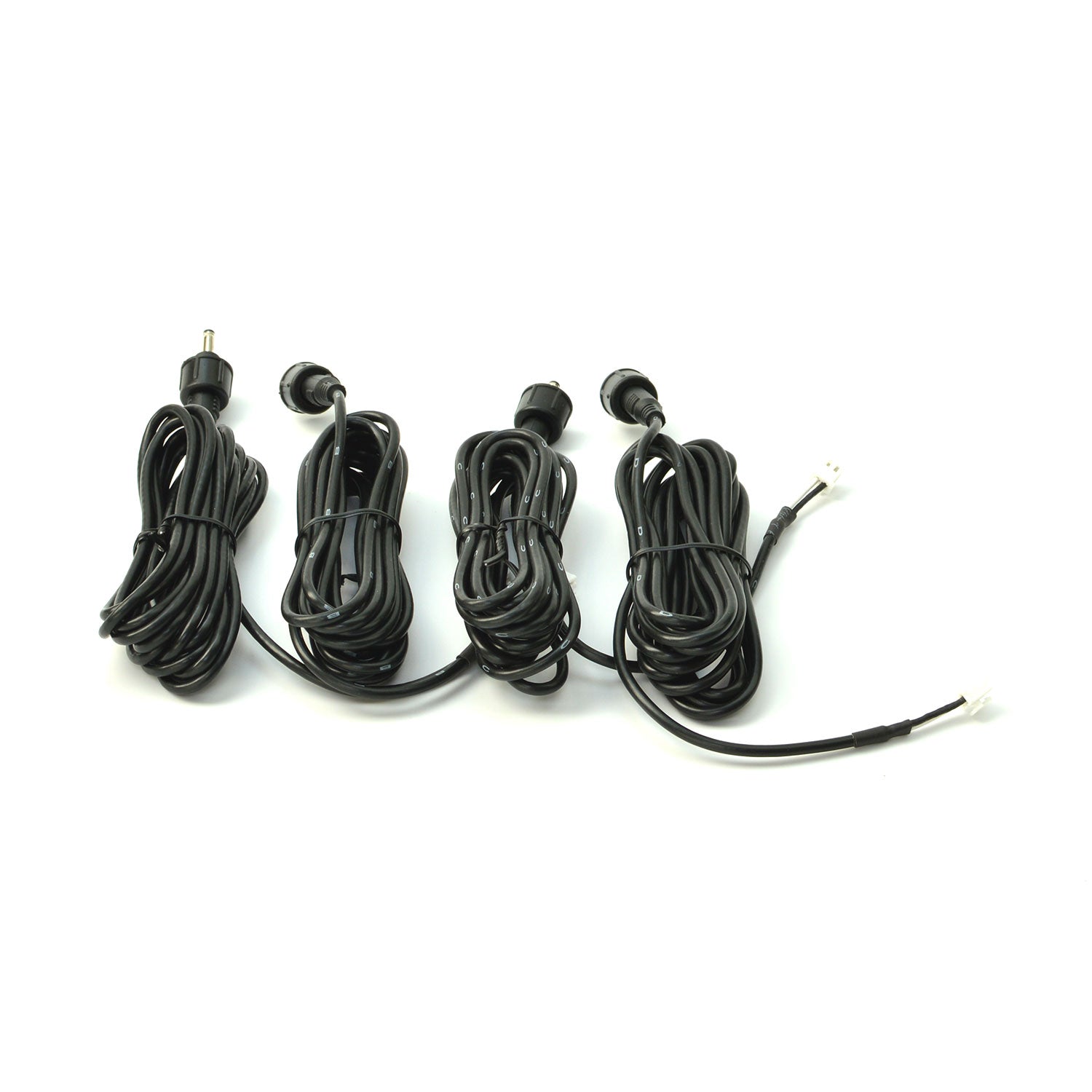

- 4 x 2.7m sensor cables.

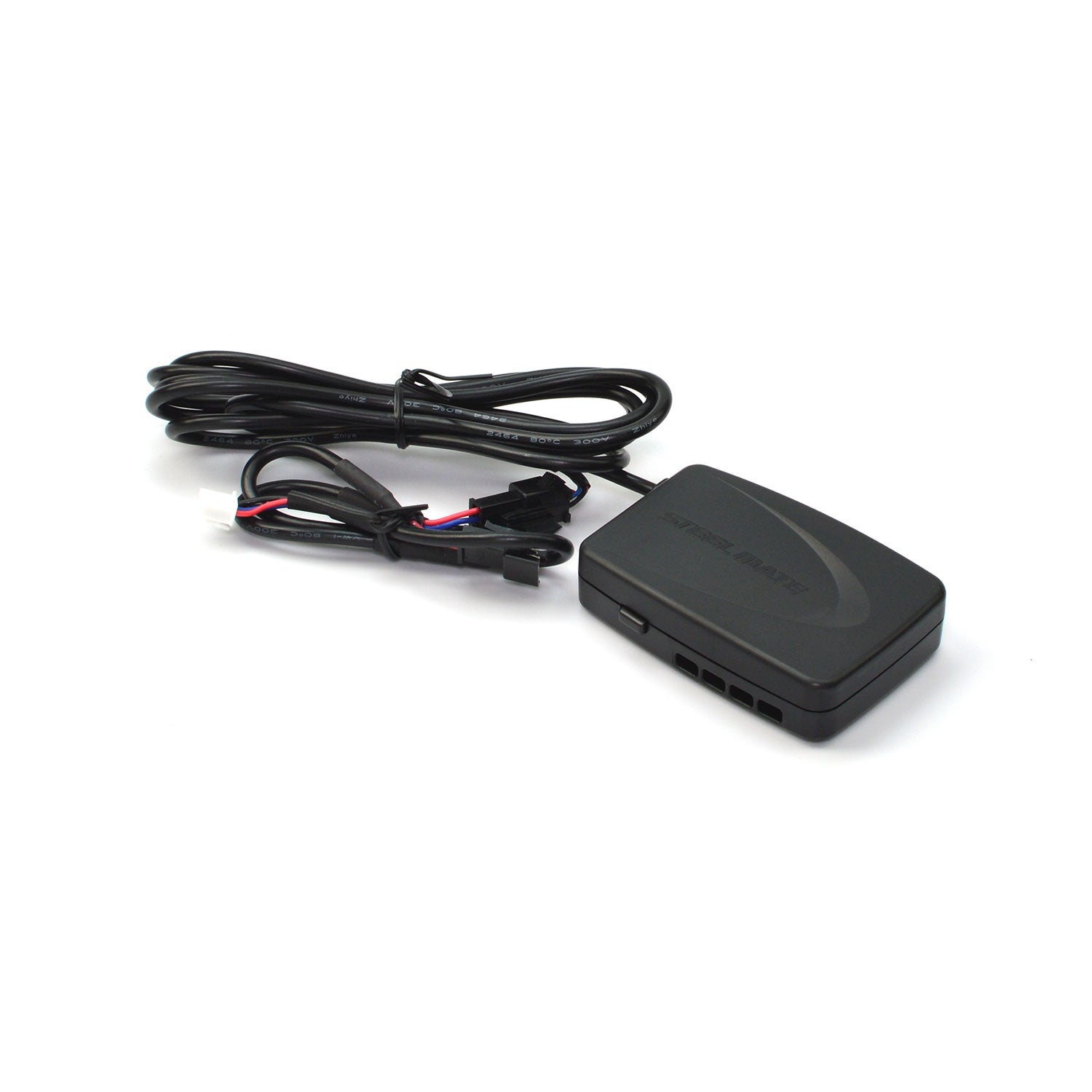

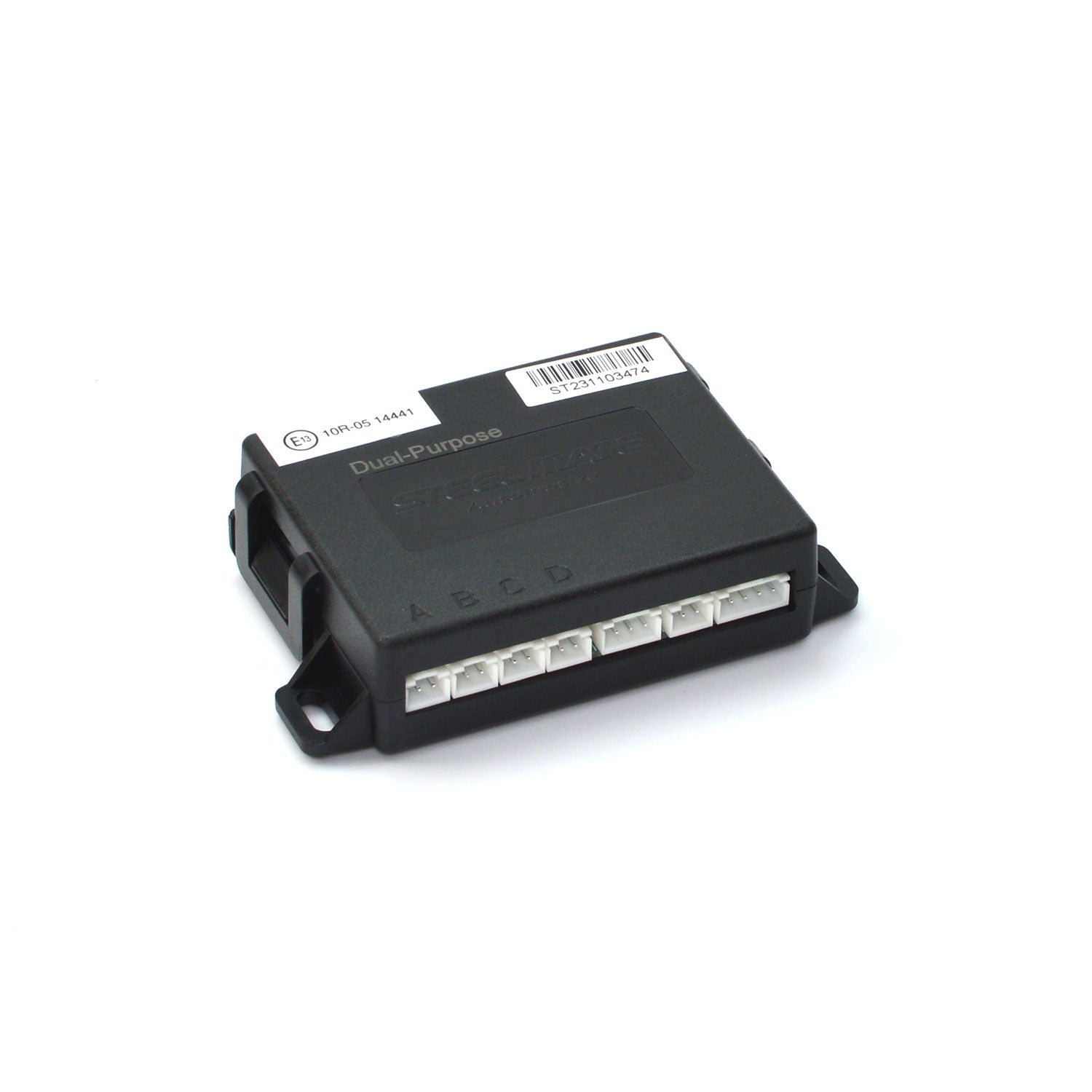

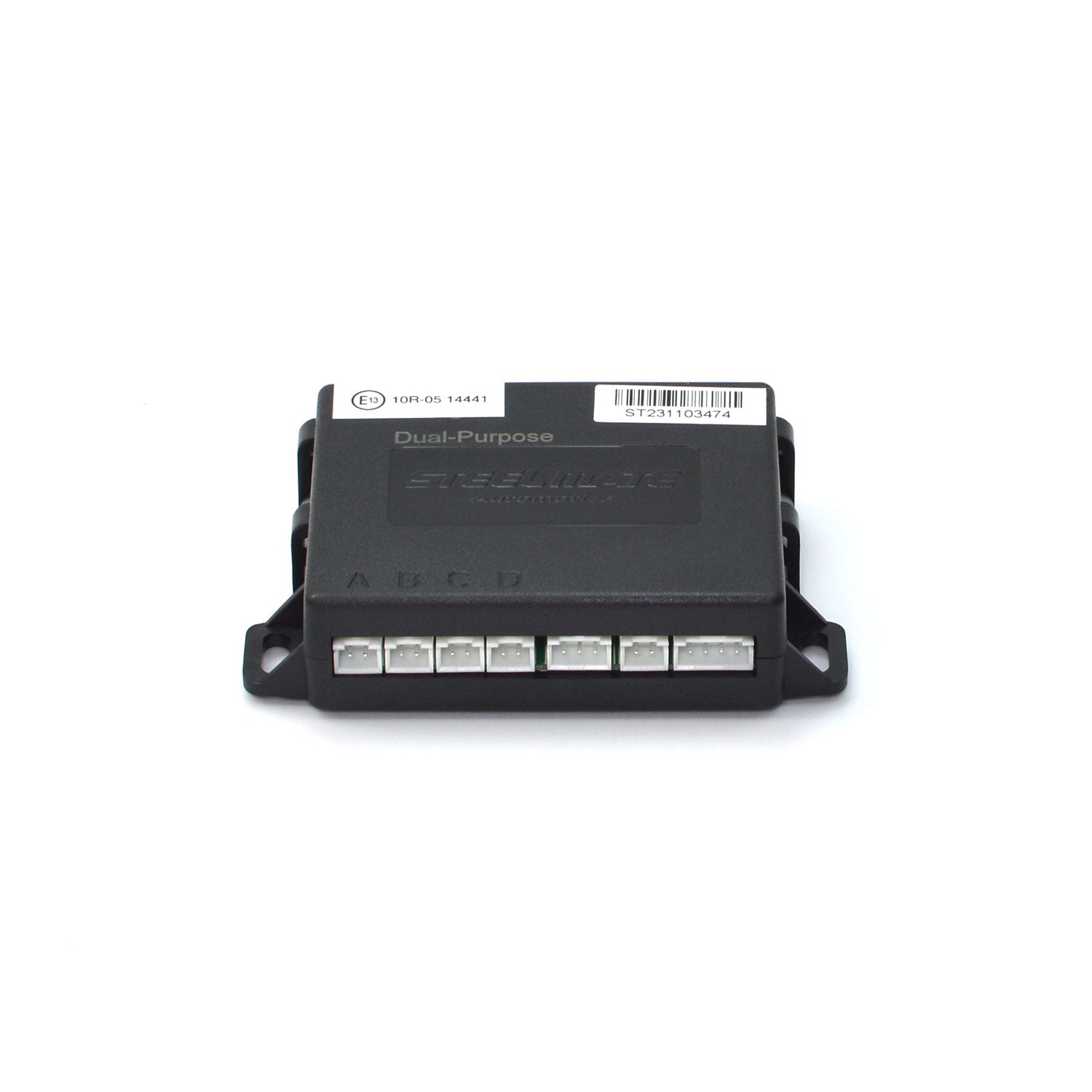

- 1 x control unit.

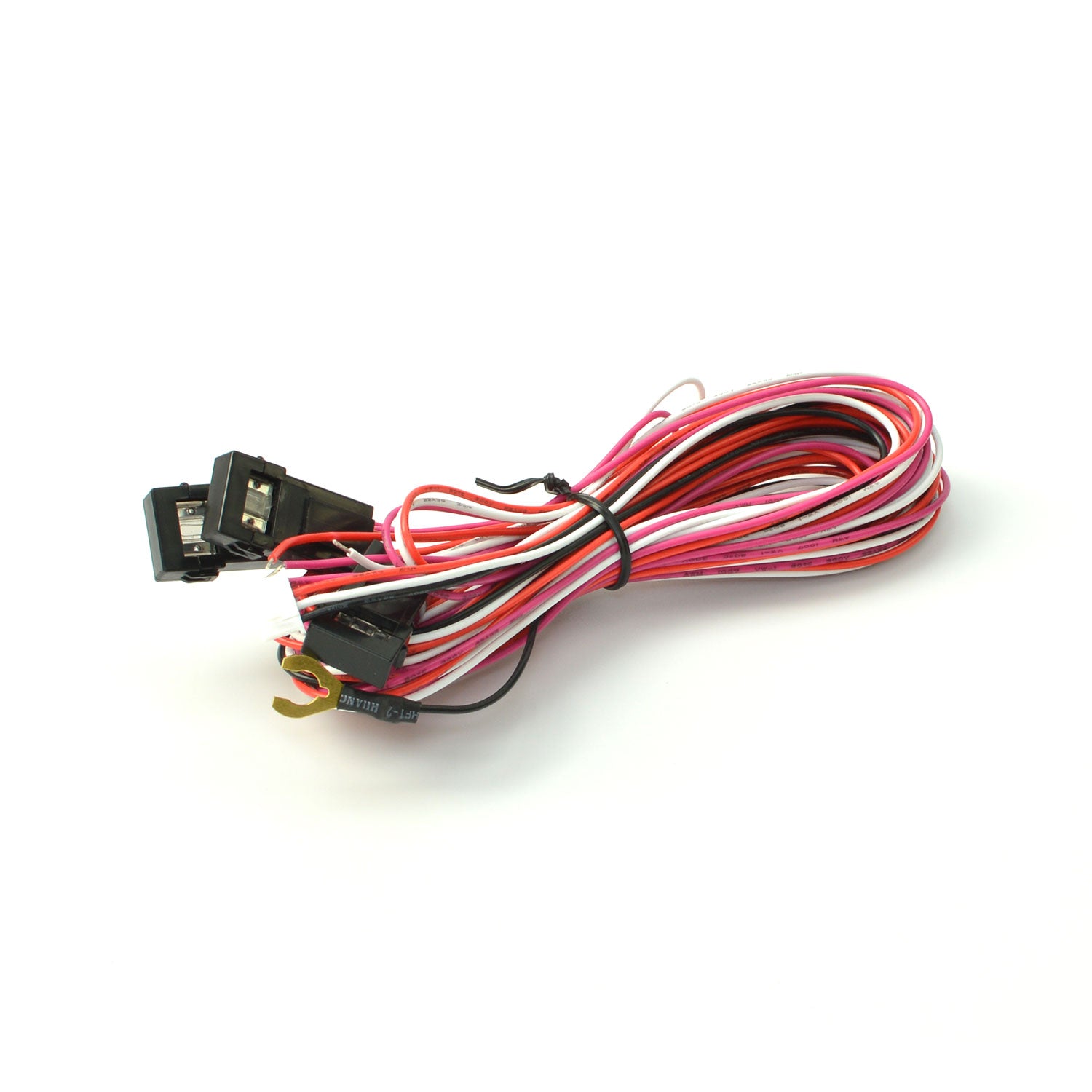

- 1 x Power cable.
- 1 x Speaker

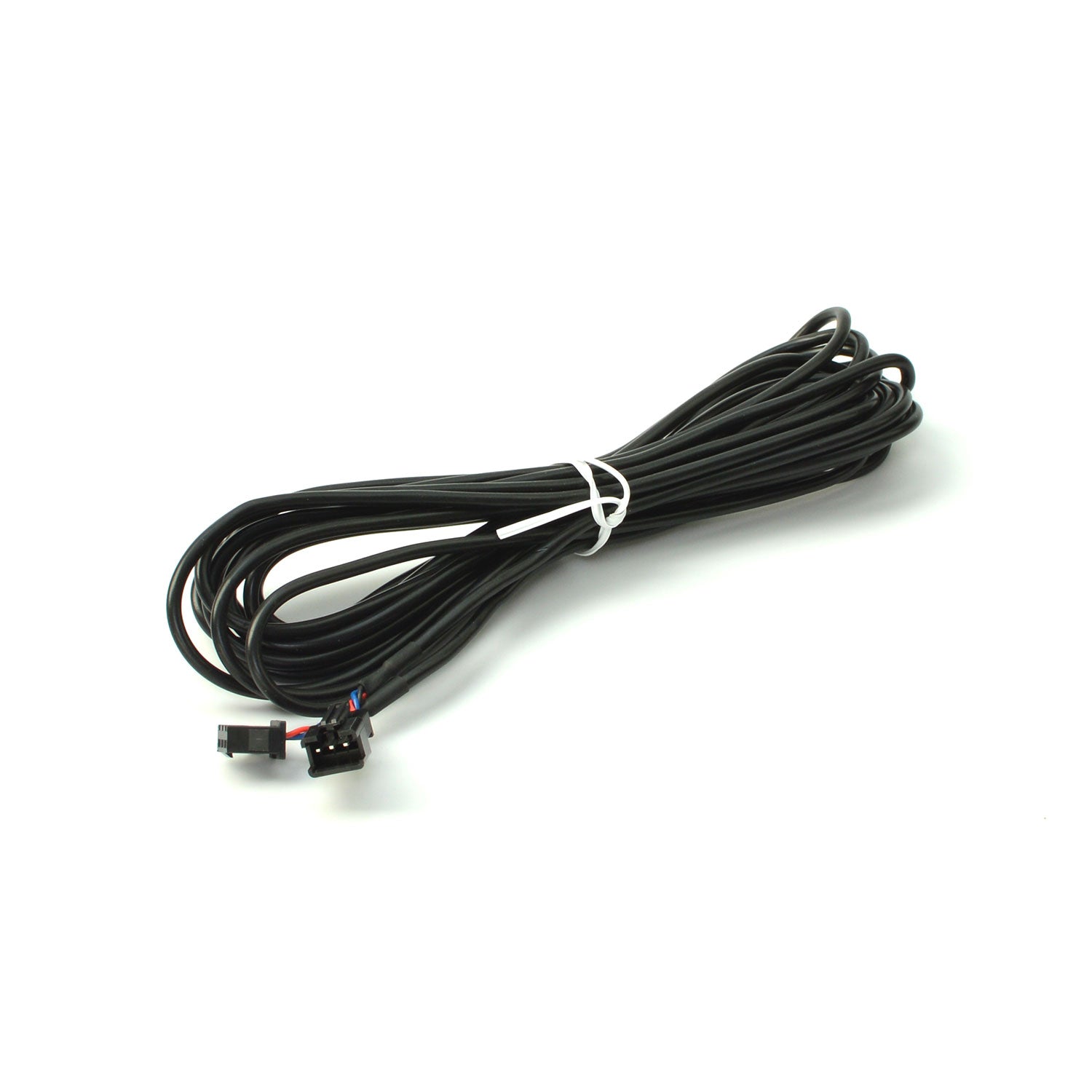

- 1 x 4m speaker/visual display extension cable.
- 1 x 19mm hole saw.
- 1 x User/installation manual.
