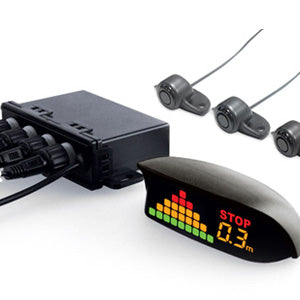

Steelmate PTS400Q-COM

Rear parking assistant for commercial vehicles with wireless LED display. Wireless technology that works up to 30 meters. New anti-false alarm patents. The kit includes 4 sensors that are mounted under the bumper. The control box can be mounted outdoors due to waterproof construction. Sensors painted in high gloss black.
NOTE: For 24 volt systems only.

System description:

- Acoustic and visual alarm
- Wireless LED display
- Fast obstacle detection
- Automatic identification of damaged sensors
- When the obstacle is at a distance of 30 cm from the vehicle, a continuous tone is heard
- A unique technology for mounting sensors (metal clips)
- Sensors with waterproof connector
- Antihook function – measurement shift +20 cm (spare wheel, frame beam, bumper)

Technical parameters:

- Supply voltage: 24V DC
- Working current: <2.5 W
- Detection range: 0.3 m to 1.8 m
- Working temperature: -40°C to 80°C
- Buzzer: 70 dB to 90 dB
- Sensors: Ultrasonic 18.5 mm
