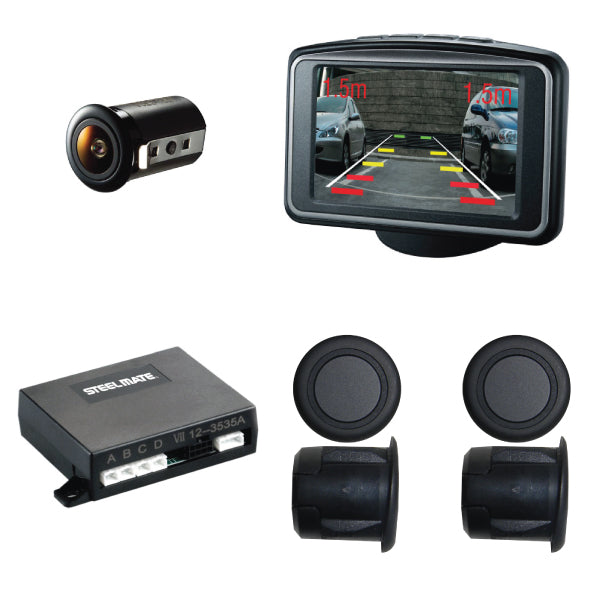

Steelmate PTSV404

Main features:

- 4-sensor system for rear bumper, with camera and 3” high-resolution TFT monitor.
- Parking assistance lines on the monitor for safer parking.
- Accurate digital distance and rear view image on the monitor.
- Camera with high light sensitivity and wide-angle image.
- Self-test for damaged sensor.
- Clock or calendar options.
- Technology to prevent false alarms.
- Selectable voice/sound alert, adjustable volume.
- Cable length from ECU to monitor: 7 m.

Parking sensors:
- Input voltage: 10>16V DC
- Operating current: <250mA
- Detection range: 0.1>2.5m
- Viewing range: 0.3>2.5m
- Operating temperature: -40°C>+85°C

Camera:
- CMOS camera
- Video standard: PAL
- Minimum illumination: 1.5 Lux
- Angle: H100°*V85°
- Operating temperature: -30°C>+85°C

For TFT monitor:
- Size: 3 inches
- Camera hole size: 18.8 mm
- Input voltage: 9>16V DC
- Operating current: <250mA
- Operating temperature: -20°C>+60°C
- Signal volume: 70>90dB

Included in the package:
- 4 x 14D-12 sensor heads
- 4 x 2.5m sensor cables
- 1 x Color Shock Mount Camera
- 1 x ECU
- 1 x Power cable set
- 1 x Video cable set
- 1 x Speaker
- 1 x 18.8mm hole saw
- 1 x User/installation manual
