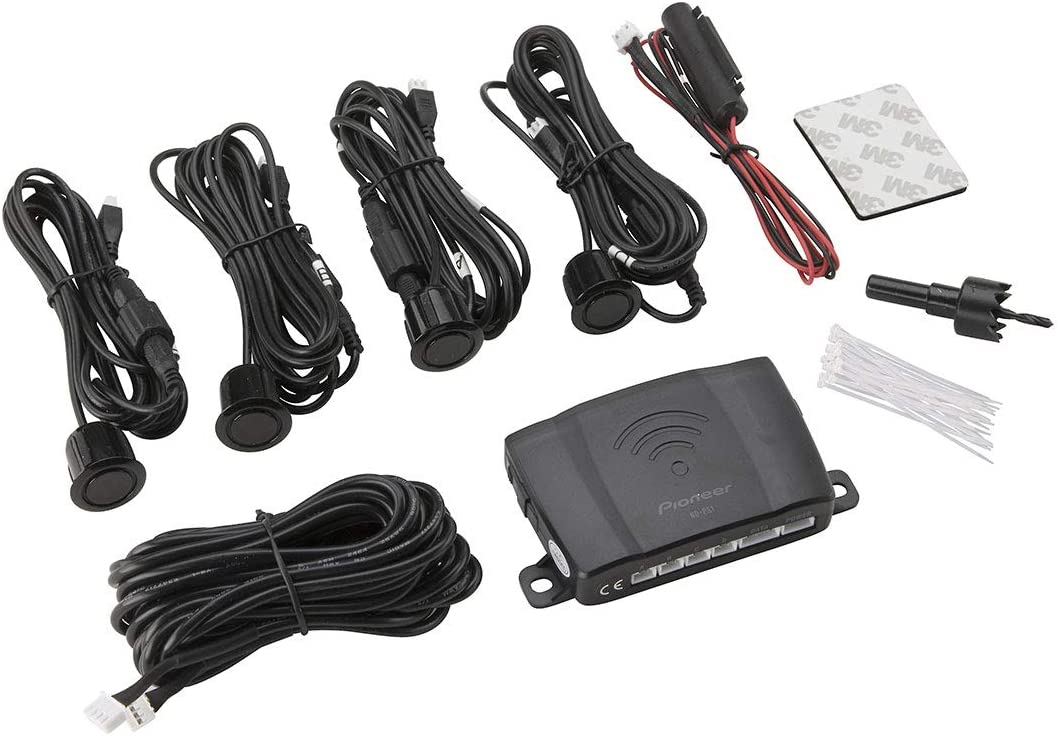

Pioneer ND-PS1

Pioneer's optional ND-PS1 rear parking sensors are easy to install and designed to connect directly to Pioneer's SPH-10BT and SPH-20DAB. Once connected, you can park easily and safely thanks to the audible and visual warnings on the head unit.

When used with Pioneer's SPH-10BT, SPH-20DAB and the Pioneer Smart Sync app, you can also view the parking assist screen on your compatible smartphone.

Control box

- Nominal voltage: 14.4 V DC
- Operating voltage: 10.8 ~ 15.1 V DC
- Rated current: 10 ~ 30 mA at 14.4 V DC
- Detection range: 0.3m ~ 2.5m
- Dimensions (WxHxD): 105.3mm x 21.8mm x 56.0mm
- Operating temperature range: -30 °C ~ 80 °C
- Weight: 50 g/1 unit

Cable length:
- Power cable: 1 m
- Connection cable: 5 m

Sensors:
- Center frequency: 40 kHz
- Direction factor X-axis: 70°
- Direction factor Y-axis: 70°
- Maximum input voltage: 120 Vp-p (at 40 kHz)
- IP code: IP67
- Size: φ 23.5 mm x 19.8 mm (without cable)
- Cable length: 2.5 m
