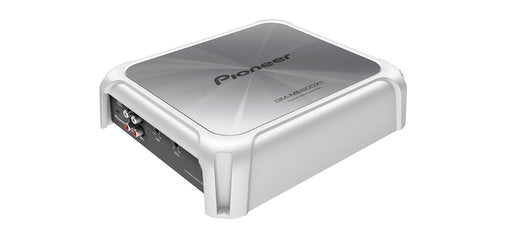

Pioneer GM-ME500X1

Marine Class FD 1-channel mono amplifier with wired remote control for Bass Boost (1600W)

Channels: 1
Speaker terminals: Block type
LPF: Yes
Peak output power:
- 1 x 600W (4Ω)
- 1 x 1000W (2Ω)
- 1600W Total
Continuous output power (RMS):
- 1 x 300W RMS (4Ω)
- 1 x 500W RMS (2Ω)
- 1 x 800W RMS (1Ω)
Frequency range: 10 Hz – 240 Hz
Input level control:
- RCA (0.2V – 6.5V)
- SP (0.8V – 16V)
Distortion: less than 0.05%
Signal-to-noise ratio: over 100 dB
Size, chassis (W x H x D): 265 mm x 215 mm x 60 mm
Bass Boost: Yes
Auto Start High Level Input: Yes
Bass Boost Remote: Yes
Crossover frequency: 40 – 240Hz (-12 dB/oct)
Mono: Yes
