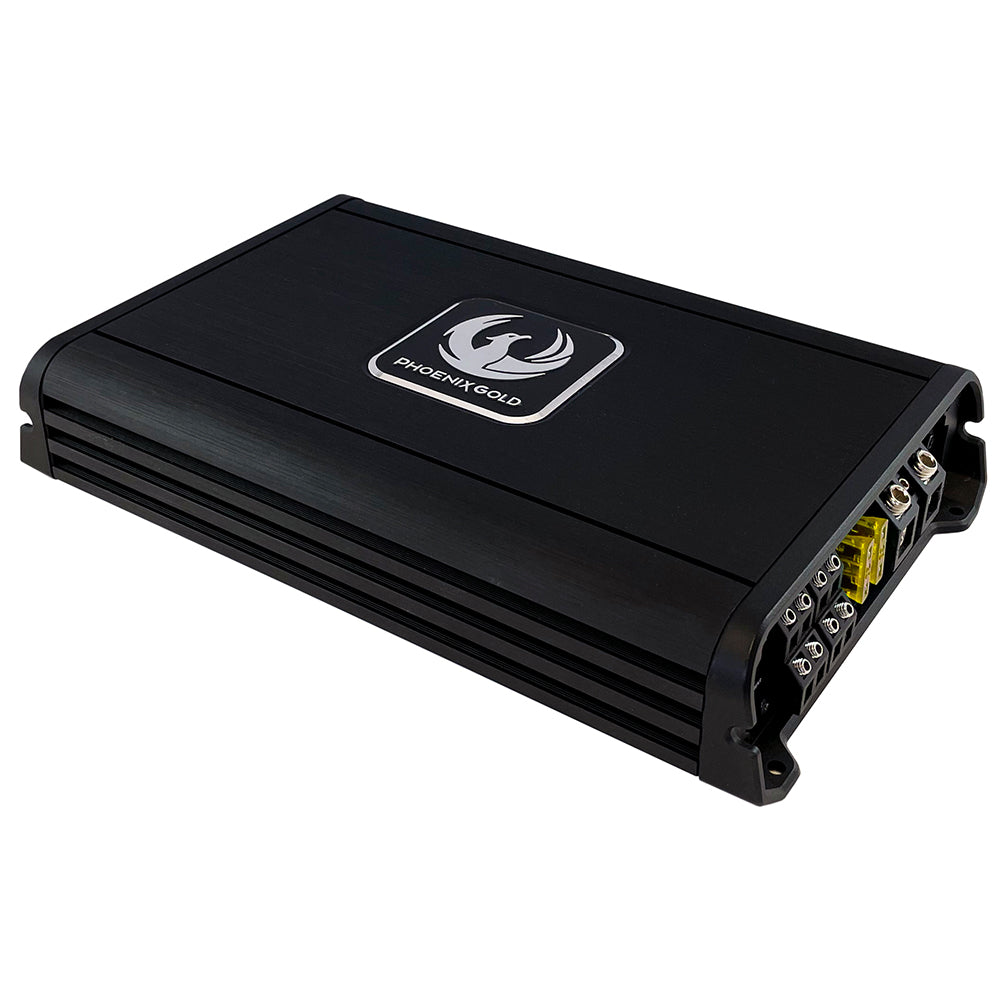

Phoenix Gold 24V ZT6004R

The ZT6004R is a powerhouse packed into its compact, elegant design, offering an unparalleled listening experience. Engineered for precision and performance, this 600W 4-channel 24V Class-D amplifier redefines what is possible, catering to installations of all scales. Now includes an amplifier remote control.

The ZT6004R is a powerful 600W 4-channel 24V Class-D amplifier with a stunning compact design that will fit even the smallest installations. Featuring our high-quality gold-plated circuit board, the system uses its high-quality connection terminal to ensure clean, crisp power delivery to all your components.

At its core lies a crafted, high-quality gold-plated design circuit board, a testament to the craftsmanship that ensures unwavering, clean power delivery to every connected component. This amplifier is perfect for those seeking uncompromising sound quality in limited spaces. The ZT6004R delivers exceptional power ratings and effortlessly showcases the sound.

With 100W x 4 @ 4Ohm, 150W x 4 @ 2Ohm and a staggering 300W x 2 @ 4Ohm when bridged, it elevates the soundscape with its Class-D technology. It goes beyond raw power to encompass a frequency response spanning 20Hz to 20kHz and a signal-to-noise ratio exceeding 96dB.

Versatility meets precision with its 12dB per octave high and low pass filters, adjustable from 50 to 250Hz. This adaptability allows users to fine-tune their audio experience to perfection. Additionally, the low-to-high level input range of 0.2V to 10V extends compatibility. No matter what sound system you create, the ZT6004R stands strong, amplifying every note and beat with precision.

High-Level Auto-Turn On – turns the amplifier on when an audio signal is applied.
OEM Connection Ready – compatible with aftermarket/original source devices.
Remote Ready – control bass/gain with the included ZRBC remote control (wired).
High and low level inputs – versatile connection to suit any vehicle.
Heavy Duty Connector Block – enables maximum power delivery.
4-Way Protected Circuit – protection against thermal damage, reverse power, speaker polarity and low voltage.

ZT6004R Product Specifications:
Class D
4 channels
Frequency range: 12Hz – 22kHz
RMS power (2Ω): 4 x 175W
RMS power (4Ω): 4 x 105W, 2 x 350W bridged.
Signal-to-noise ratio (SNR) (full power): -90dB
Total Harmonic Distortion (THD): <1%
Low Pass Filter (LPF): 50Hz – 400Hz (12dB/oct)
High Pass Filter (HPF): 50Hz – 400Hz (12dB/oct)
Subsonic filter: No
Bass boost @ 45Hz: 0 – +18dB
Input sensitivity: 0.25V – 9.8V
Fuses: 2 x 20A
Remote control: Yes (included)
High-level input via RCA: Yes
Automatic power on: Yes
Phase control: No
Operating voltage: 20V – 32V
Idle current: 0.55A
Current consumption: (Max) 34A
Overall efficiency: (4Ω) 88%
Power outlet: 20 mm²
Speaker terminal: 4mm²
Dimensions: (LxWxH) 254 x 160 x 48.3mm
Weight: 1.76 kg
