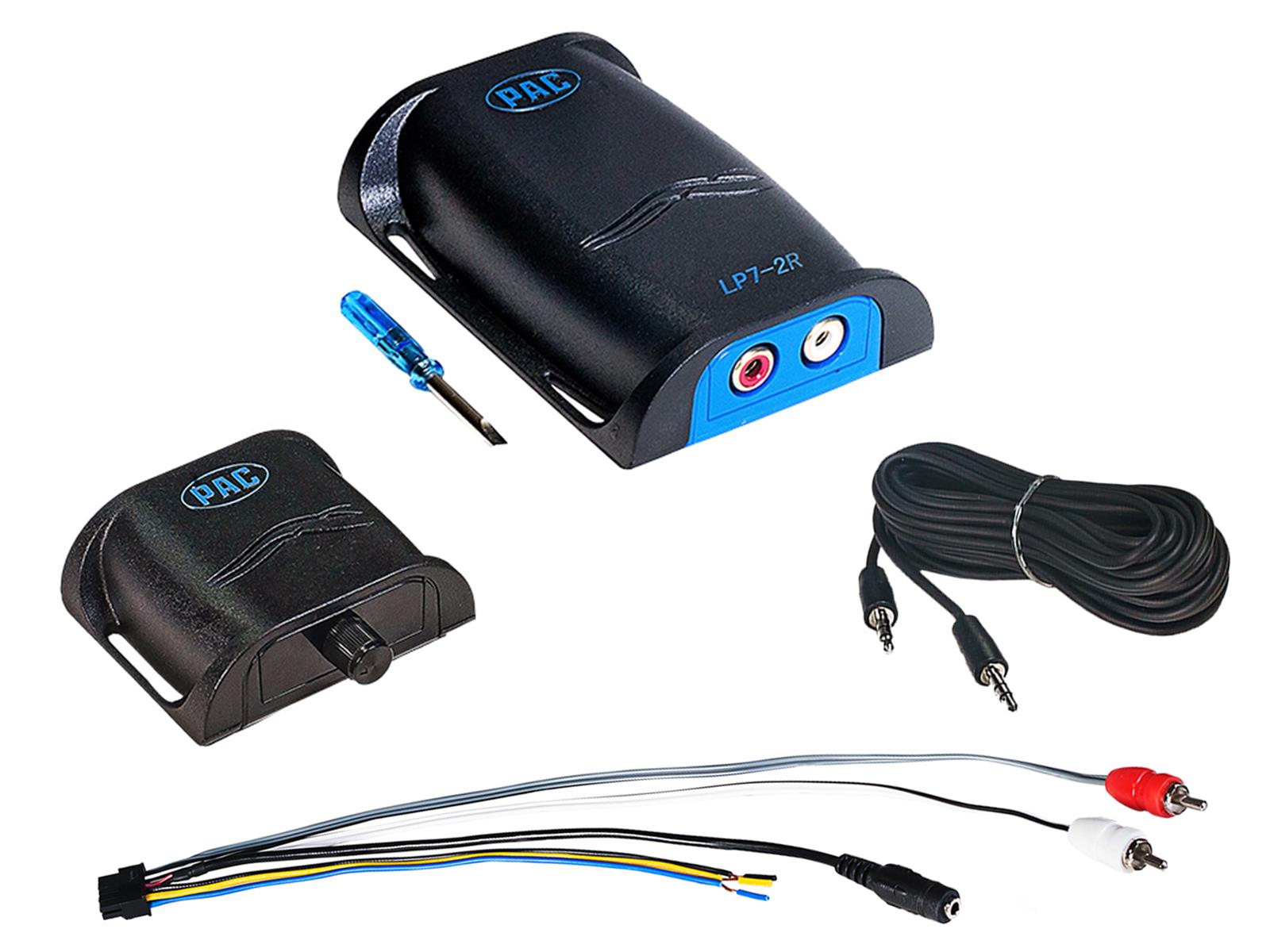

PAC Audio LP7-2R

The LOCPRO™ LP7-2R can be used either to replace an OEM radio and retain the factory-installed amplifier system or to add amplifiers to a system that does not have RCA outputs. The LOCPRO™ LP7-2R will also monitor the audio input signal and automatically create a remote amplifier turn-on for systems that do not have one. Level matching is achieved using precision stereo gain controls and allows for proper adjustment of the audio output from the radio for optimal system performance. Differential inputs also allow for use in OEM BOSE and other premium system scenarios. These instructions cover the most common applications for the LOCPRO™ LP7-2R.

Specifications

Built-in remote start circuit
Includes remote level control
Accepts both high-level and low-level input
Simple stereo gain controls
Ultra-compact housings - achieved by lowering transformers into the circuit board
High power - conservatively rated @ 55 watts per channel
Full frequency response from 20Hz to 20kHz (+/- 1.5 dB)
Simple cable setup
Possibility of cable tie or screw mounting
