Dräger Interlock 7500

Dräger Interlock®7500 is an approved alcohol interlock developed for vehicles, to be used in preventive use or in conditional operations (alcohol interlock after drunk driving).

Special features of the Interlock 7500 are the extremely short warm-up time and its quick readiness for use.
The Interlock 7500 specifically measures alcohol. The measurement result is reliable and accurate. In addition, attempts to bypass or manipulate the device are identified and stored. The device can identify whether the alcohol detected in the breath sample is real alcohol or only mouth alcohol. All relevant events are saved in the Data Log such as date, time, breath sample taken, any measured alcohol concentration, vehicle starts and stops.

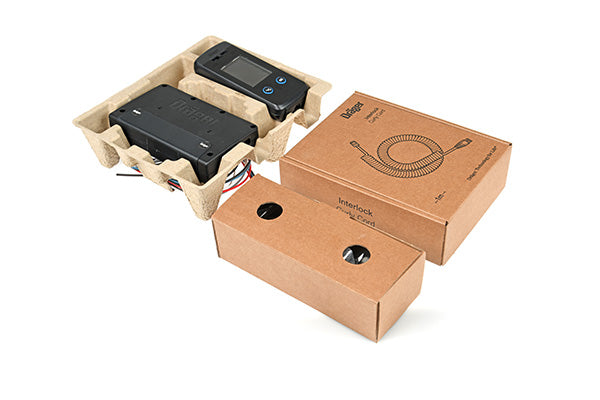

Holder for handset included, screws for mounting not included.

- Measuring principle: Electrochemical sensor
- Operating conditions: Temperature -40 °C to 85 °C
- Readiness for use:
- <5 sec. (above 0 °C)
- <60 sec. (at -20 °C)
- <110 sec. (at -40 °C)
- Display: Color
- Calibration interval: Normally 12 months
- Data logging: Saved in the control unit, up to 200,000 events
Dimensions (HxWxD):
- Handset: 138mm x 61mm x 36mm
- Controller: 148mm x 90mm x 32mm
- Voltage: 12-24V
- Power consumption:
- <2.5A max
- <1 mA standby
- Approval: EN 50436-1:2014, EN 50436-2:2014, EN 50436-6:2015, E1 Mark, ECE Regulation No. 10, NHTSA:2013, AS 3547 Type 4
- Weight: 920 grams
