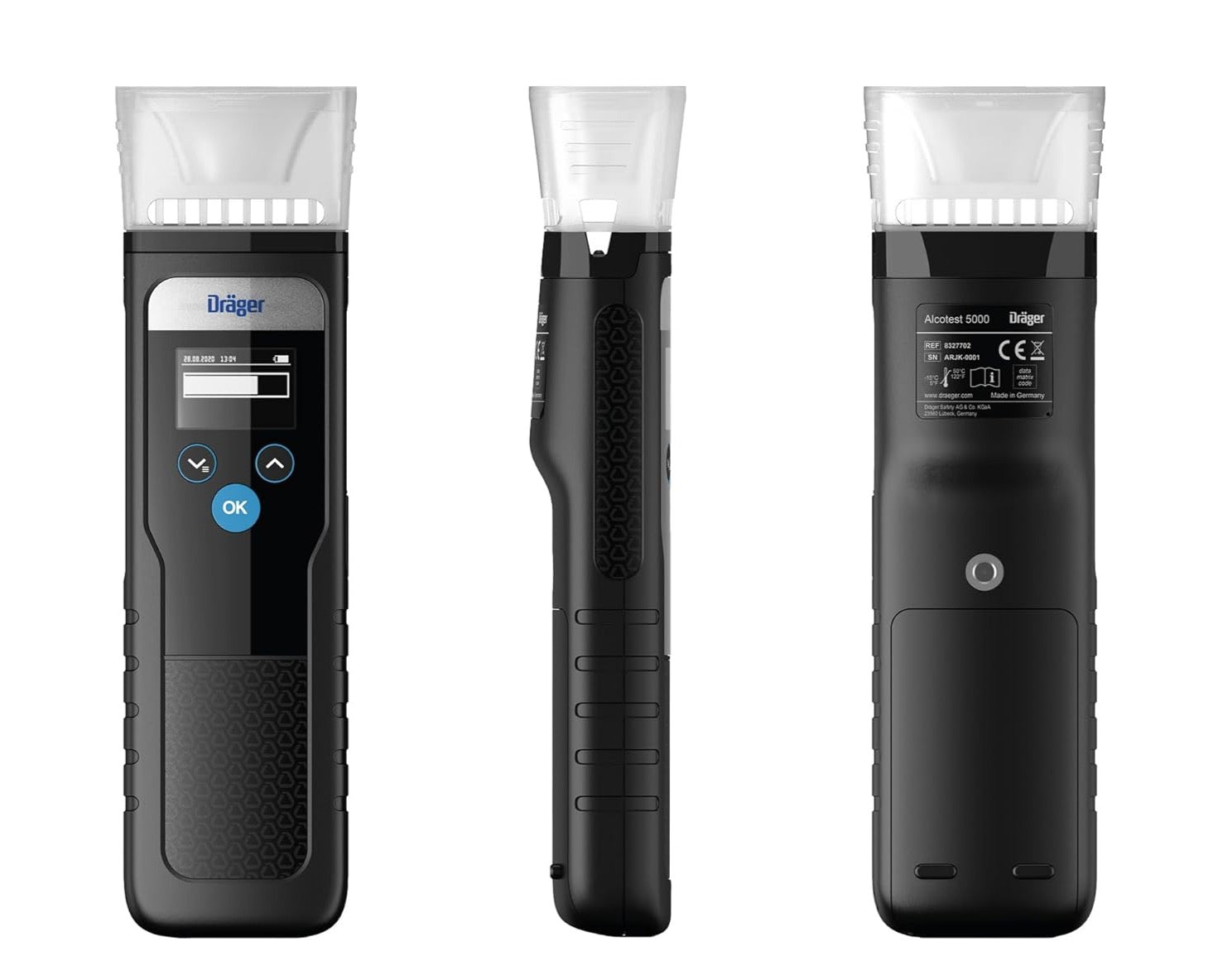

Dräger Alcotest 5000

The Dräger Alcotest® 5000 is designed for rapid alcohol testing without requiring physical contact with the test subject, thanks to the hygienic funnel design of the mouthpiece.
Only alcohol or no alcohol is presented and up to 12 tests per minute can be performed.
The target group for this variant is users who want to test several people in a short time where there is a need to select those under the influence of alcohol but without presenting the measurement value.
The mouthpiece design makes breath testing on others hygienic for both the person performing the test and the person being tested. Mouthpieces are replaced as needed and can be purchased in packs of 10.

Sampling

Automatically starts when airflow is detected
Passive sampling can be done with or without a funnel
Sampling can be triggered manually while the test subject is blowing into the funnel

LED lights

Two colors, to support test results and warning messages on the display

Signals

Various signal tones to support display and warning messages

Memory

For the last 500 test results with test number, date and time

Power supply

3x AA batteries

Dimensions (W x H x D)

Approx. 63 x 219 x 41 mm

Weight

245g

Warning

30 days before the service interval expires

Service interval

24 months

Operating temperature

-15°C to +50°C
