FM
Type of tuner: High-End Codem Automotive Tuner
World tuner (switchable): EU, America, Thailand
Waveband: FM1, 2, MW, LW
Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Enhanced Other Networks (EON), Program Service Name (PS), Program Types (PTY), Regional Programs (REG), Traffic Announcement (TA), Traffic Program (TP)
Travelstore: yes (FMT)
Band Scan / Preset Scan: yes / yes
Station memory: 25
Sensitivity: lo/dx
Interference suppression: yes
Frequency response (Hz) -3 dB: 30 – 15,000
Bluetooth
Supported version: Bluetooth 2.0 with EDR
Supported profiles: HFP, PBAP, A2DP, AVRCP, SPP
Audio streaming: yes
Pairing (number of units): 5
Pair code: 1234
Hands-free calling: via microphone + radio speaker
Hands-free volume: variable
Microphone: built-in + external microphone connection
Key functions: accept/hang up/reject call/redial
Phonebook access: yes (up to 1,000 entries per phone)
Twin Connect: yes (2 phones connected simultaneously for telephony)
Navigation Audio Mix: yes (Navigation commands via A2DP)
AutoWake-Up: yes (radio off / ignition on)
Data
CD: CD-DA, CD-R, CD-RW
Disk drive type: Automatic loading
USB: USB 2.0
Memory card: no
Formatting USB / SD: FAT 32, FAT 16
Media player
Playback format: MP3, WMA
Title display: ID3 tag (version 2), file, folder
Folder and file browsing: yes (without song interruption)
Multiple folder levels from MSD: yes
iPod, iPhone control: yes (via USB)
Android MP3 control: yes (with Android 2.3 operating system and higher)
Fast folder browsing: yes (via other encoder)
Display modes: yes (file, folder, song, artist, album, clock, time, total time, all modes)
Character display: File names up to 50, tags up to 30
Variable display scrolling: yes (once / always if > 9 digits)
Mix / Repeat / Scan: yes / yes / yes
Fast media reading: yes (from USB)
Bitrate (kBit/s): 32 - 320
Variable bitrates: yes
CD player
Shockproof memory: yes
Frequency response (Hz) –1 dB: 20 – 20,000
Equalizer
Number of bands / Model: 3 / semi-parametric
Bass / Treble: yes / yes (+/- 7 steps)
Balance / fader: yes / yes (+/- 9 steps)
X-Bass: yes
Sound settings: Rock, pop, classical
Amplifier
Number of channels: 4
Maximum power: 4 x 50 watts
Sine power at 14.4 V: 4 x 24 watts
Display
Type / Numbers: DOT (1-row) / 9
Angle: Wide view
Color: negative, black and white
Brightness: adjustable
Clock display: 24 / 12 hours

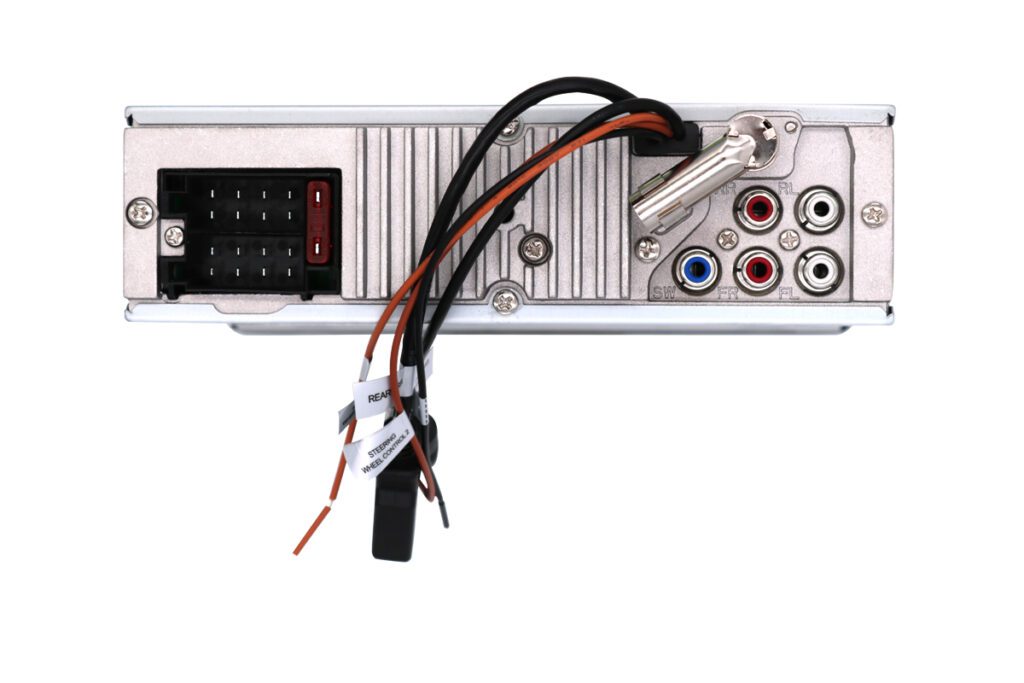

Inputs
Antenna (number): 2 (FM ISO)
USB (number / type): 2 (front + rear / standard A-Type)
iPod/iPhone: yes (via front and rear USB)
Memory card: no
Aux-In (number, type): 1 front (3.5 mm jack)
Telephone masking / Line-In: yes / no
Steering wheel control: yes (analog programmable)
Outputs
Speakers (number): 4
Preamplifier channel: 4-channel (Cinch)
Preamp volume: 4 V
Variable amplifier operating time: yes
Sub-Out: yes (Cinch, variable gain/frequency)
Generally
Twin-Encoder concept: Left for volume control & mute, right exclusively for browsing, phone book, tuner & menu
Software update: via USB
Variable search time: yes
Confirmation signal: yes (on/off)
Front panel: Fixed panel
Panel / decorative ring color: Black / black
Encoder/button light: Blue/red
Operating voltage: 18-32 V
Permanent memory storage: yes
Demo mode: yes
Weight (kg): approx. 1.6
Height x Width x Depth (mm): 52 x 178 x 170
IR remote control: yes
