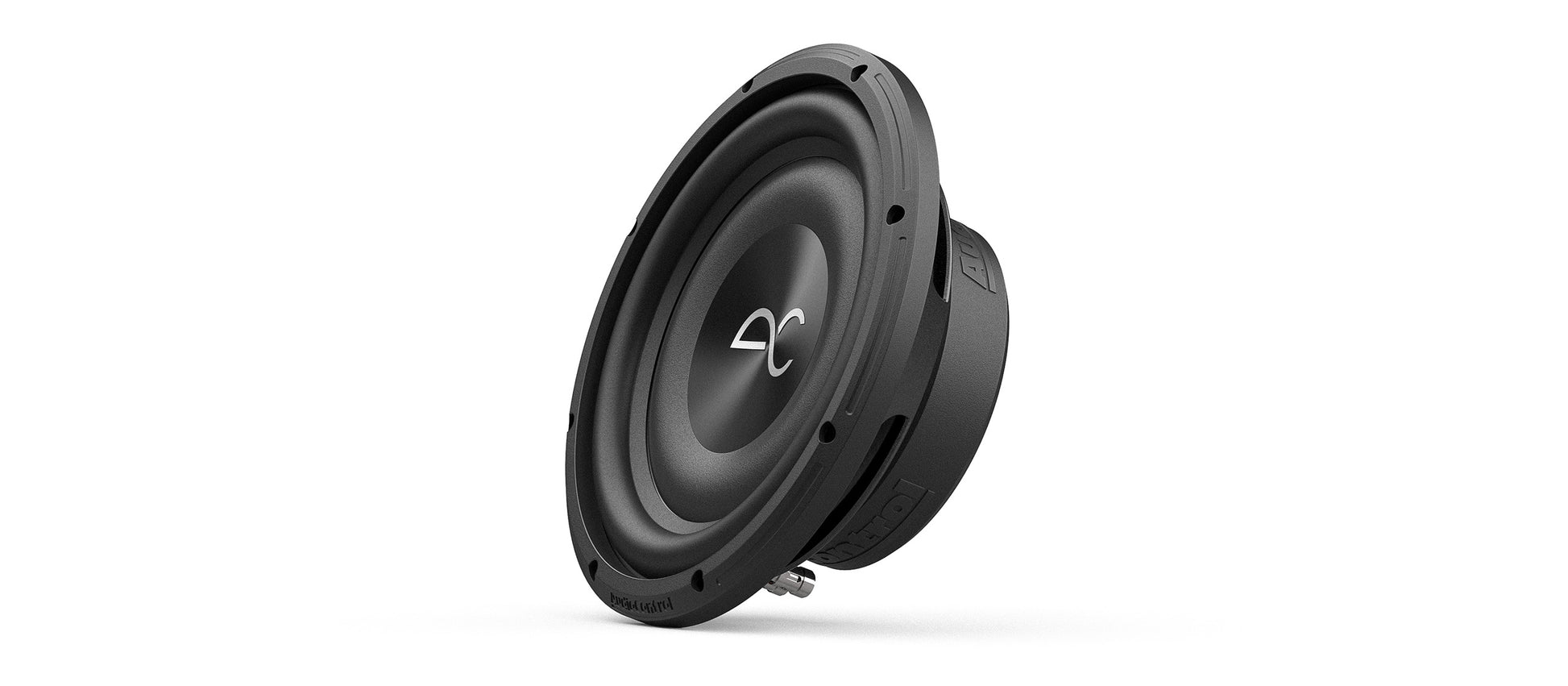

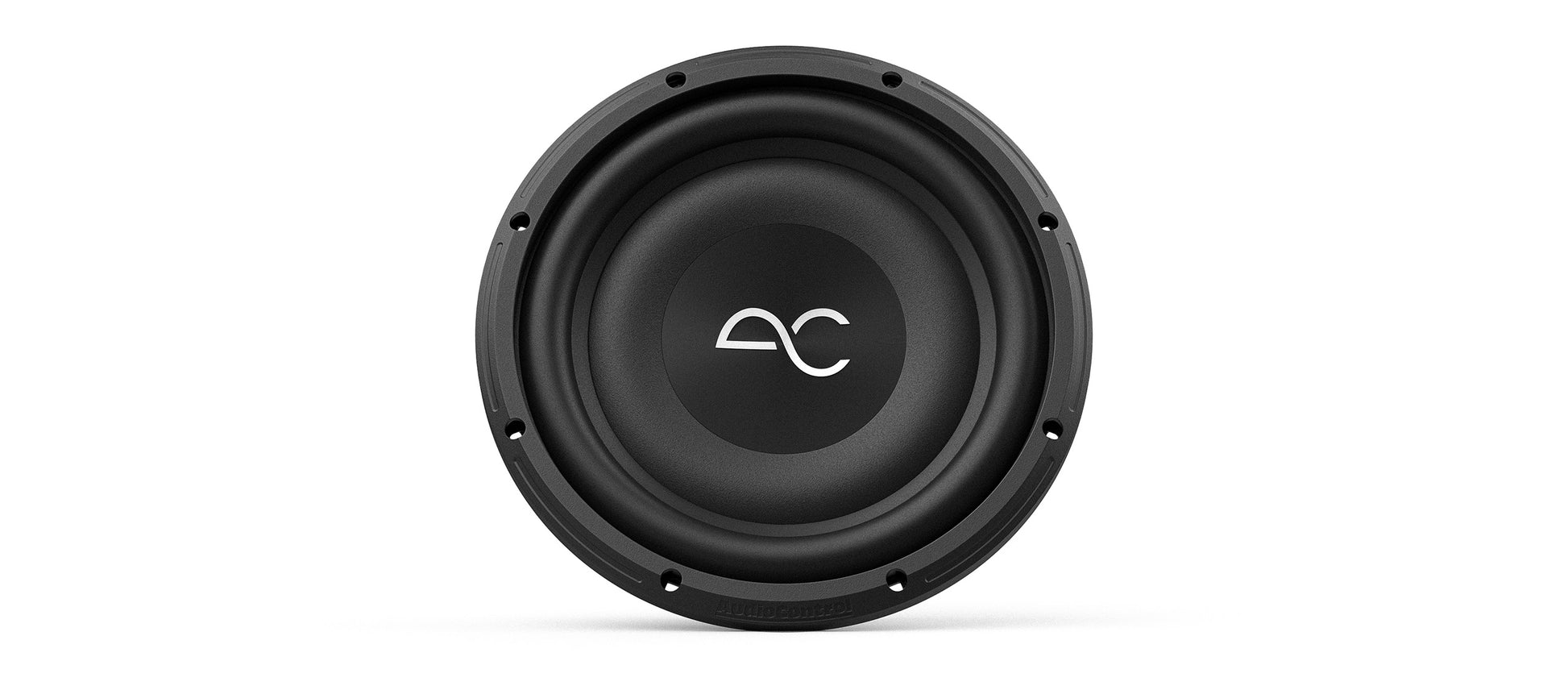

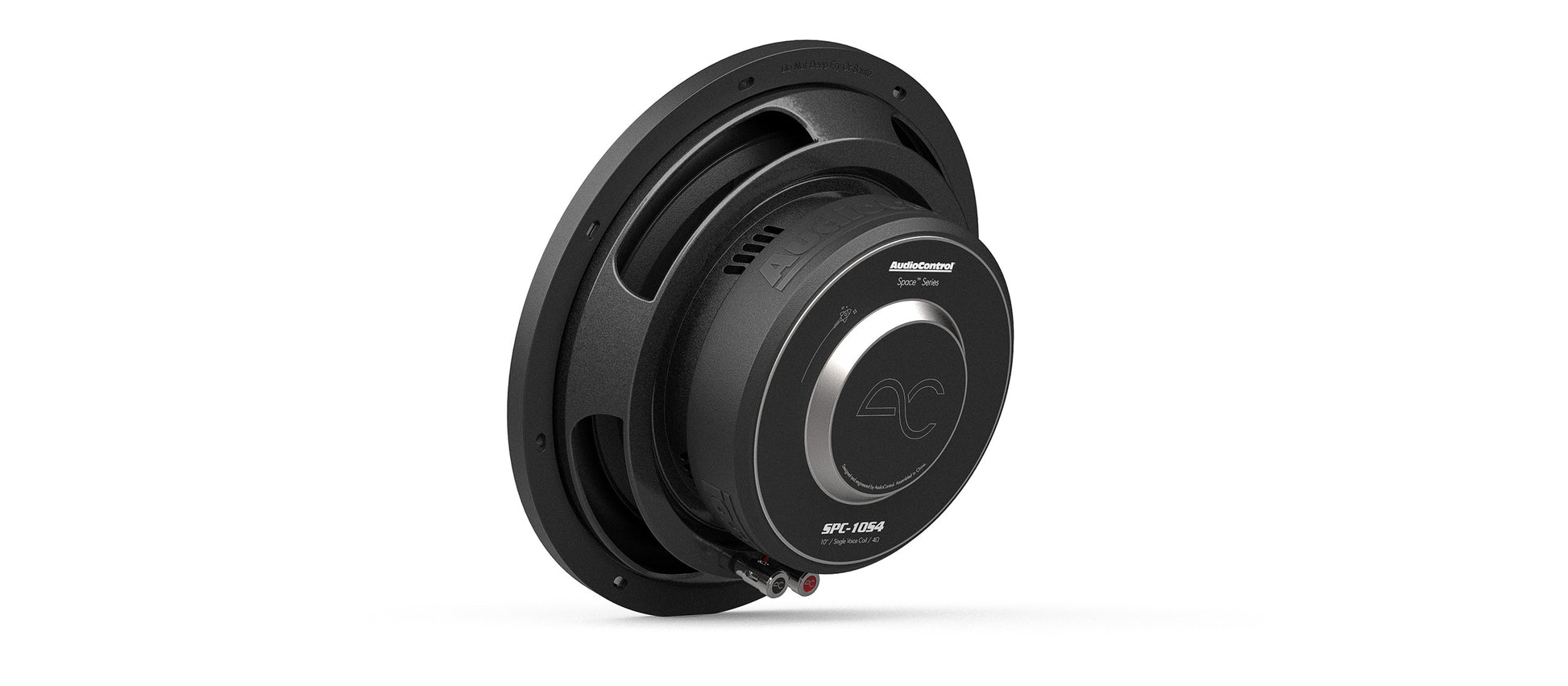

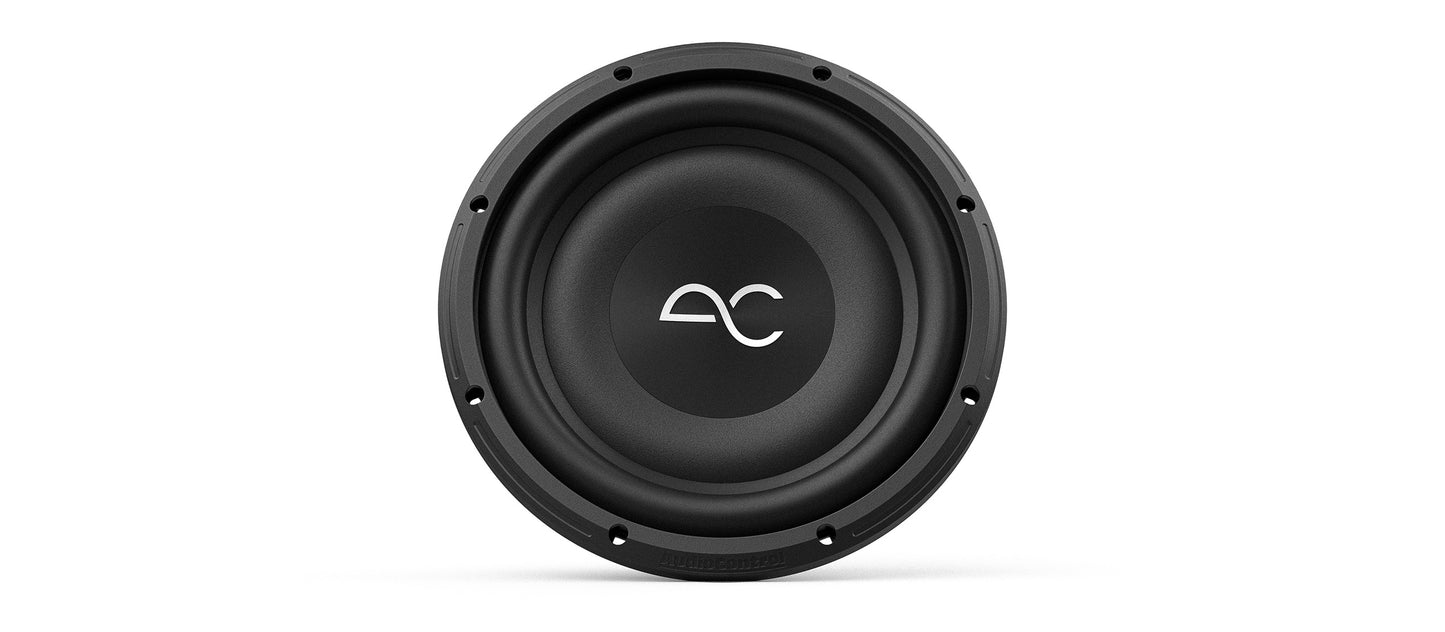

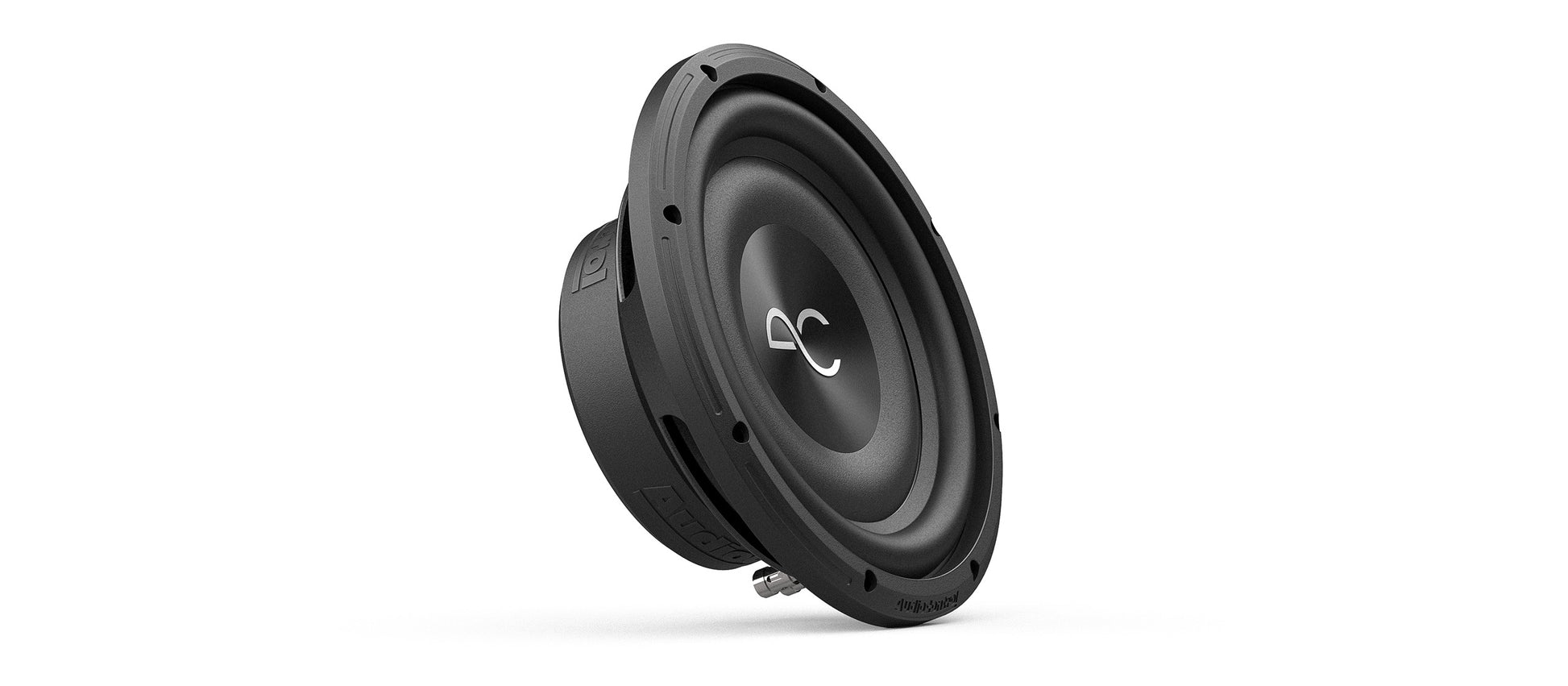

AudioControl SPC-10S4

SPACE SERIES 10-INCH 4 OHM LOW-PROFILE SUBWOOFER.

Ready to take your musical experience to the next level? Look no further than the Space Series subwoofers! These slim yet powerful subwoofers pack a punch - delivering maximum low-frequency output in a shallow space. The ultimate solution for deep, rich bass in a sleek, slim design. Add to that their weatherproof features and you can enjoy your music in any environment, worry-free. No matter where you are, we know there's nothing like playing your favorite tunes and feeling your mood improve drastically. So what are you waiting for? Get the Space Series subwoofers and enhance your vehicle's listening environment by creating a powerful atmosphere of sound.

AudioControl has been helping people create great sound in their cars for over 45 years, and the Space Series subwoofers are no exception. The injection-molded polypropylene cone with fiber matrix ensures every note is reproduced to perfection, so you can feel the bass hit. The 3-layer high-temp voice coil former means they can handle even the most intense bass without breaking a sweat. And don't worry about distortion ruining your jams - these subwoofers feature an optimal thermal efficiency design to ensure your bass stays clean and clear. These subwoofers not only sound amazing, they're built tough too. With their weather-resistant design and removable grilles, you can enjoy your music even if your vehicle likes to play off-road.

THIELE/SMALL PARAMETERS:
Nominal Impedance (Z) 4 ohms

DC Resistance (Re) ]] 3.2 ohms

Resonance Frequency (Fs) 37.3460 Hz

Piston Area (Sd) 0.0330 m2

Force Factor (BL) 14.0082 Tm

Mechanical Q Factor (Qms) 2.8618

Electrical Q Factor (Qes) 0.4044

Total Q Factor (Qts) 0.3543

Sensitivity 1W/M (SPL) 87.2957

Mechanical Comp (Cms) 0.1719 mm/N

Moving Mass (Mms) 105.6787 g

Linear Excursion (Xmax) . 9 mm

Volume Acoustic Comp (Vase) 26.1432 Ltr

Reference Efficiency (NO.) 0.32% RMS

Power (Pe) 400 Watts

Frequency Response 20-250 Hz

Voice Coil Diameter 2.5 in/63.5 mm

Displacement 1.275 Ltr

Closed box Volume: 12-22L
Ported Box Volume: 26-56L

DIMENSIONS:
Overall Dimensions: 264 mm
Cut Out Diameter: 232 mm

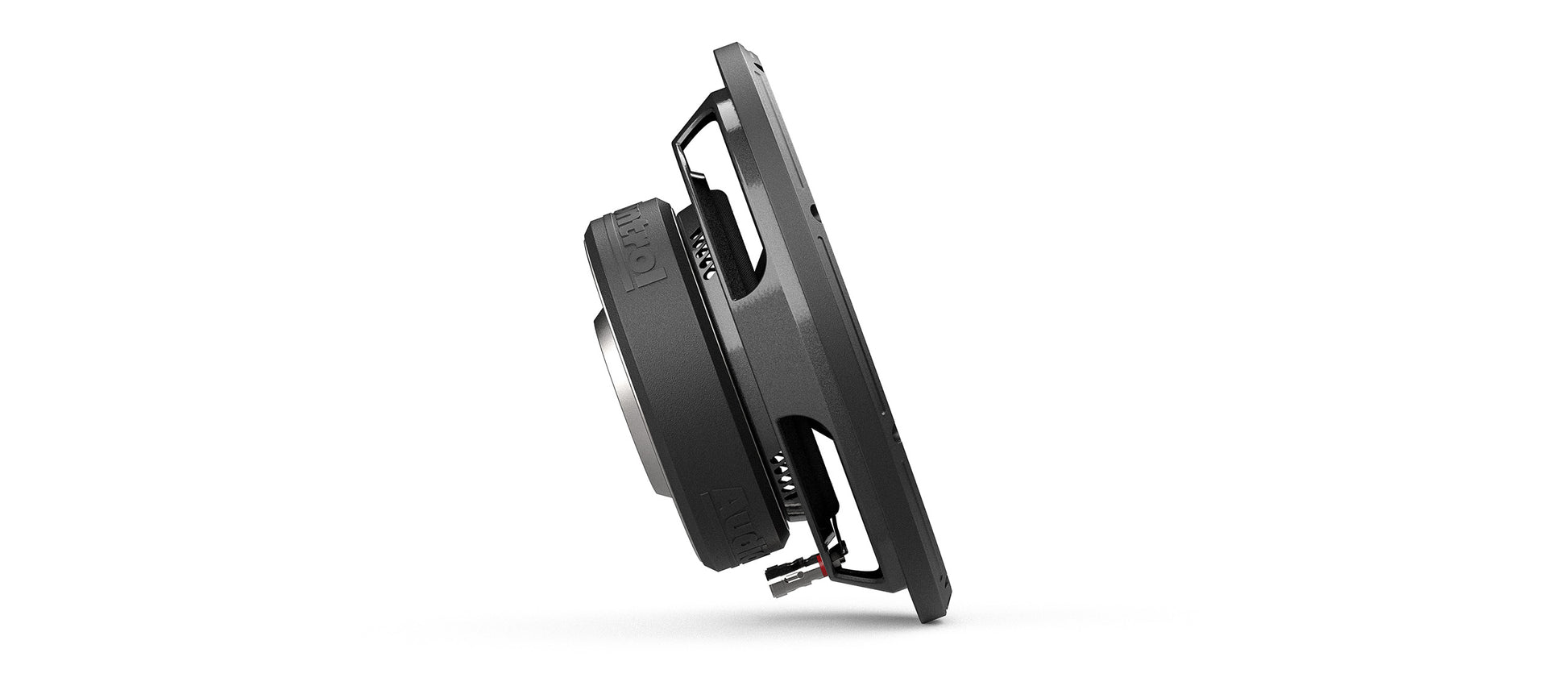

Mounting Depth: 89 mm
Mounting Height (w/o Grille): 18mm
Mounting Height (w/ Grille): 31mm

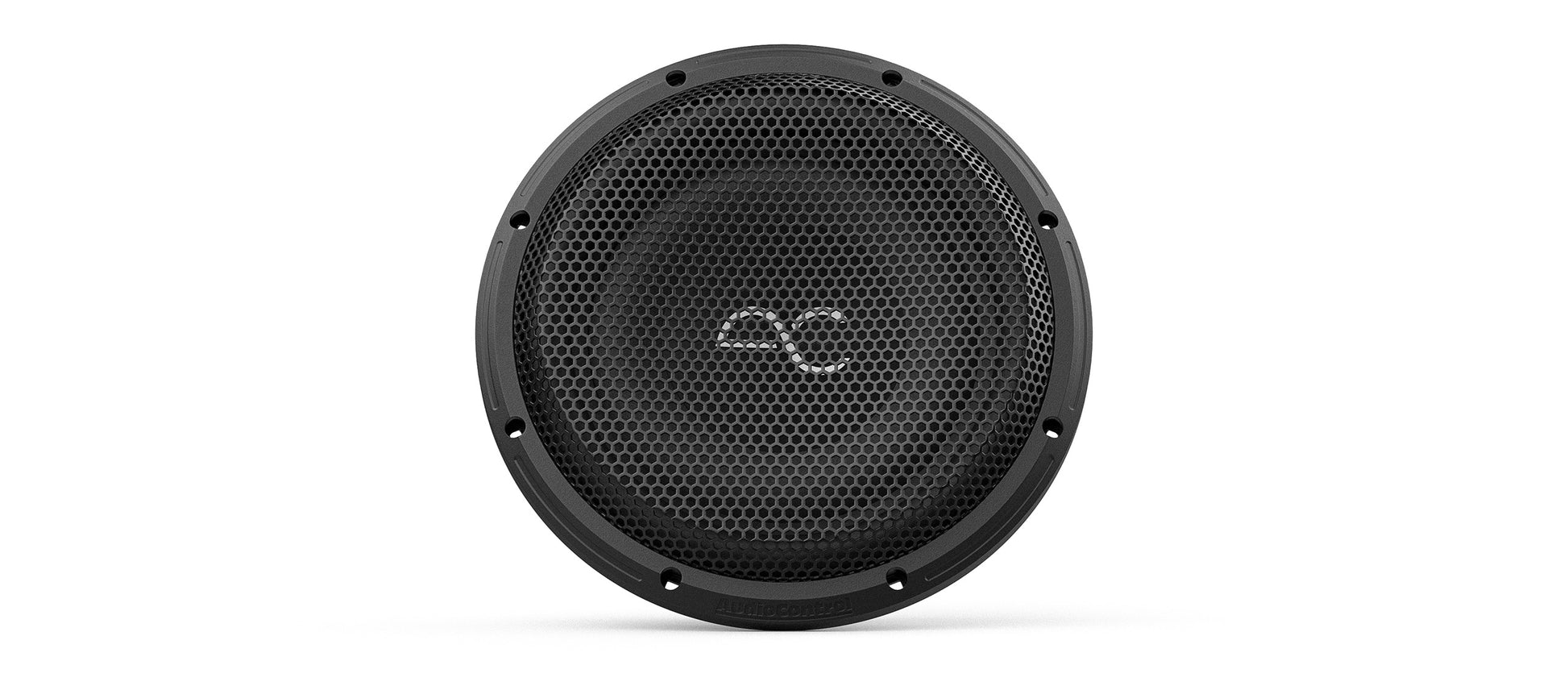

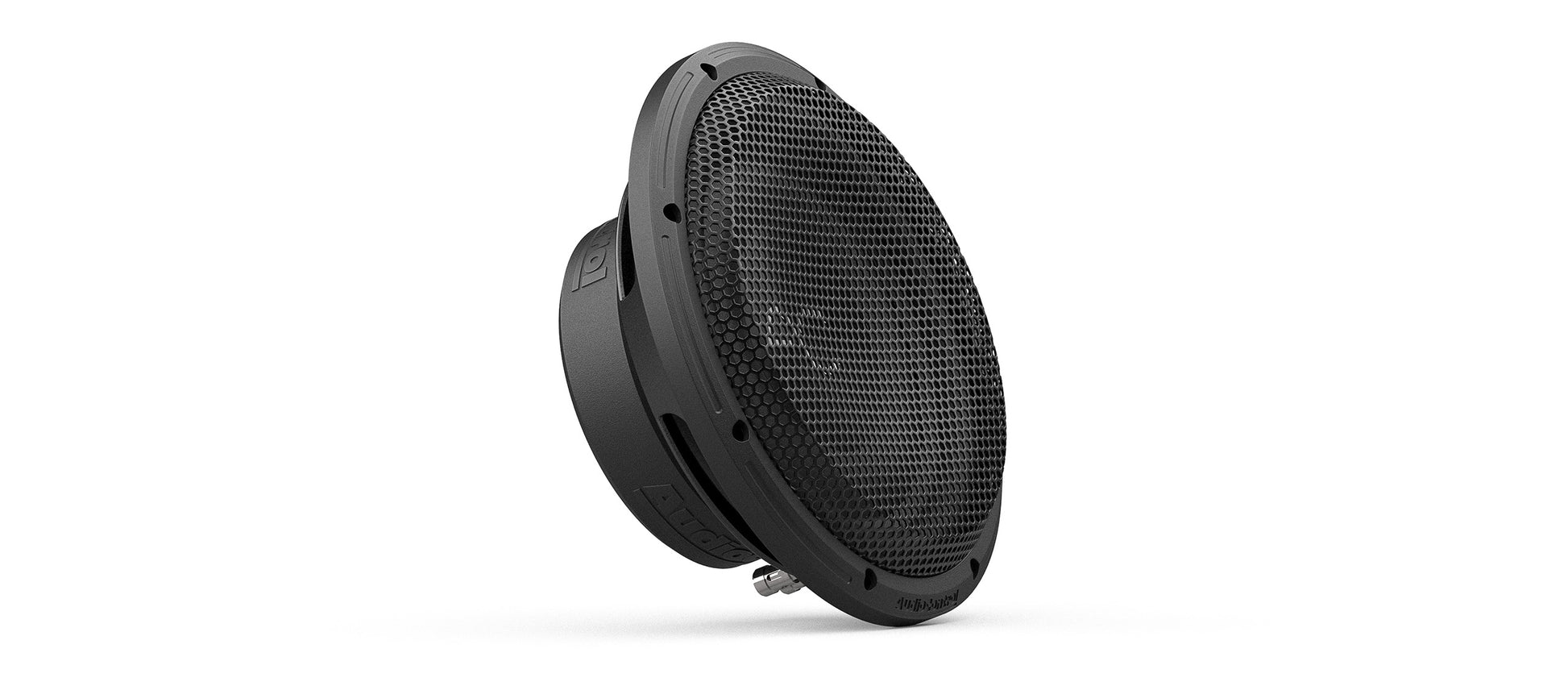

Removable subwoofer grille included.
