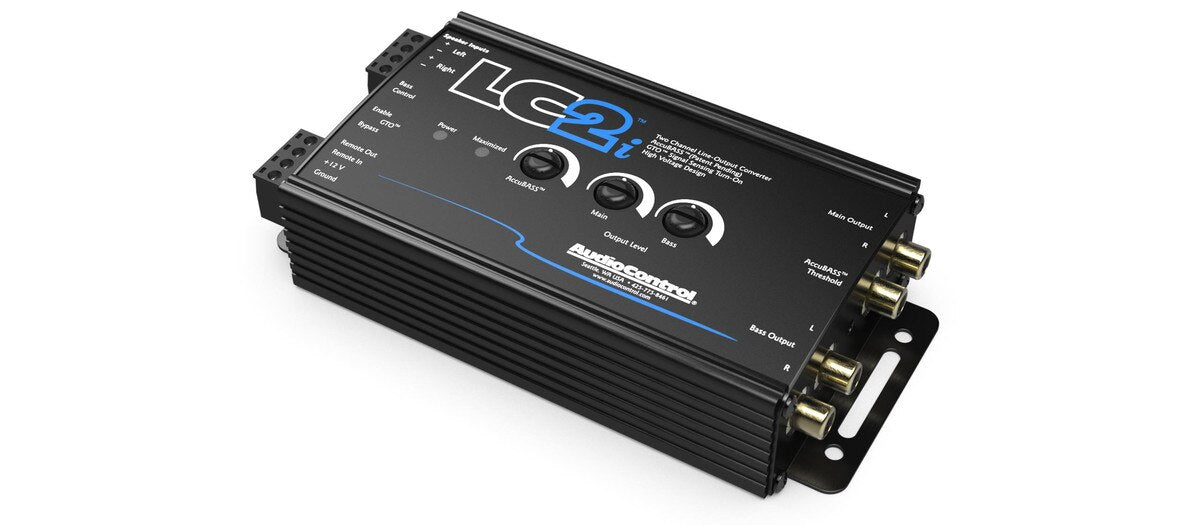

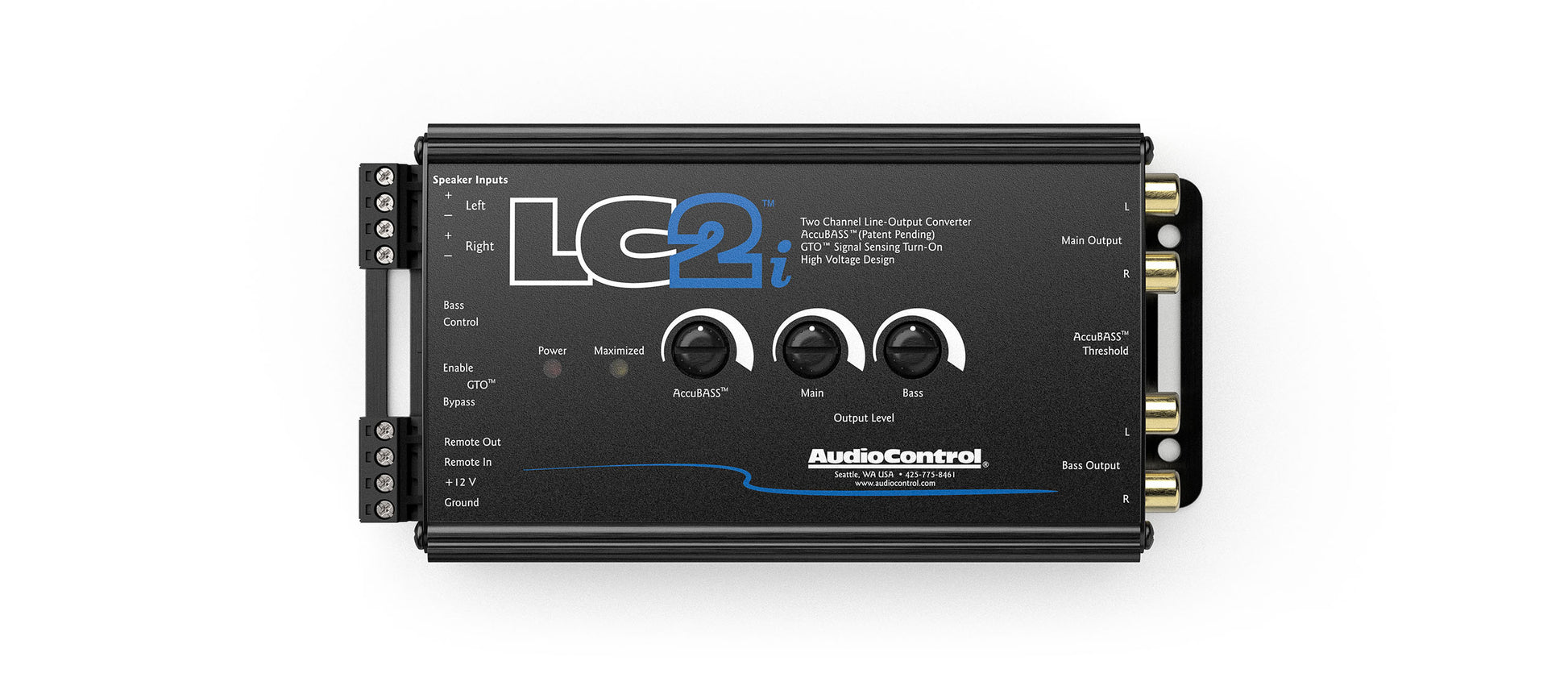

Audio Control LC2I

2-CHANNEL LINE OUTPUT CONVERTER WITH ACCUBASS®
The LC2i is a compact two-channel processor with active input circuitry, allowing it to accept speaker-level signals of up to 400 watts per channel from factory-installed source devices or amplifiers. It converts them into high-quality preamp signals that can then be routed to aftermarket processors and/or amplifiers. Users can enjoy maximum sound quality while retaining the use of factory volume and steering wheel controls.

FEATURES:
Two channels with inputs for active speakers.
Accepts 400 watts of signals per channel.
Fixed and variable outputs with discrete level control.
AccuBASS® processing for bass roll-off correction.
GTO Signal detection.
Input for remote control (accessory: ACR-1).
Compact design.

SPECIFICATIONS:

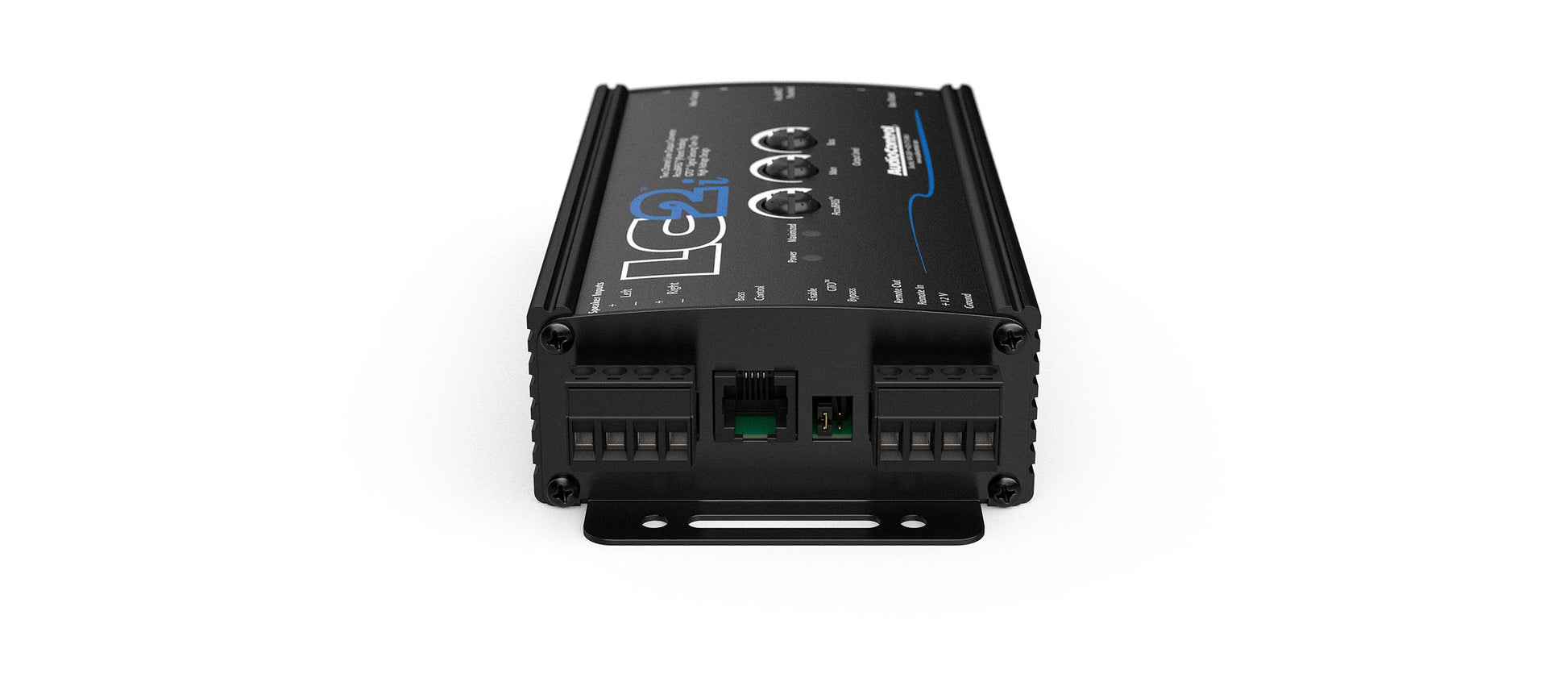

INPUTS:
Speaker Level Input: 1 (2 channels).
Maximum Speaker Level Input: 400W per channel at 4Ω.
Input Impedance: 20kΩ.

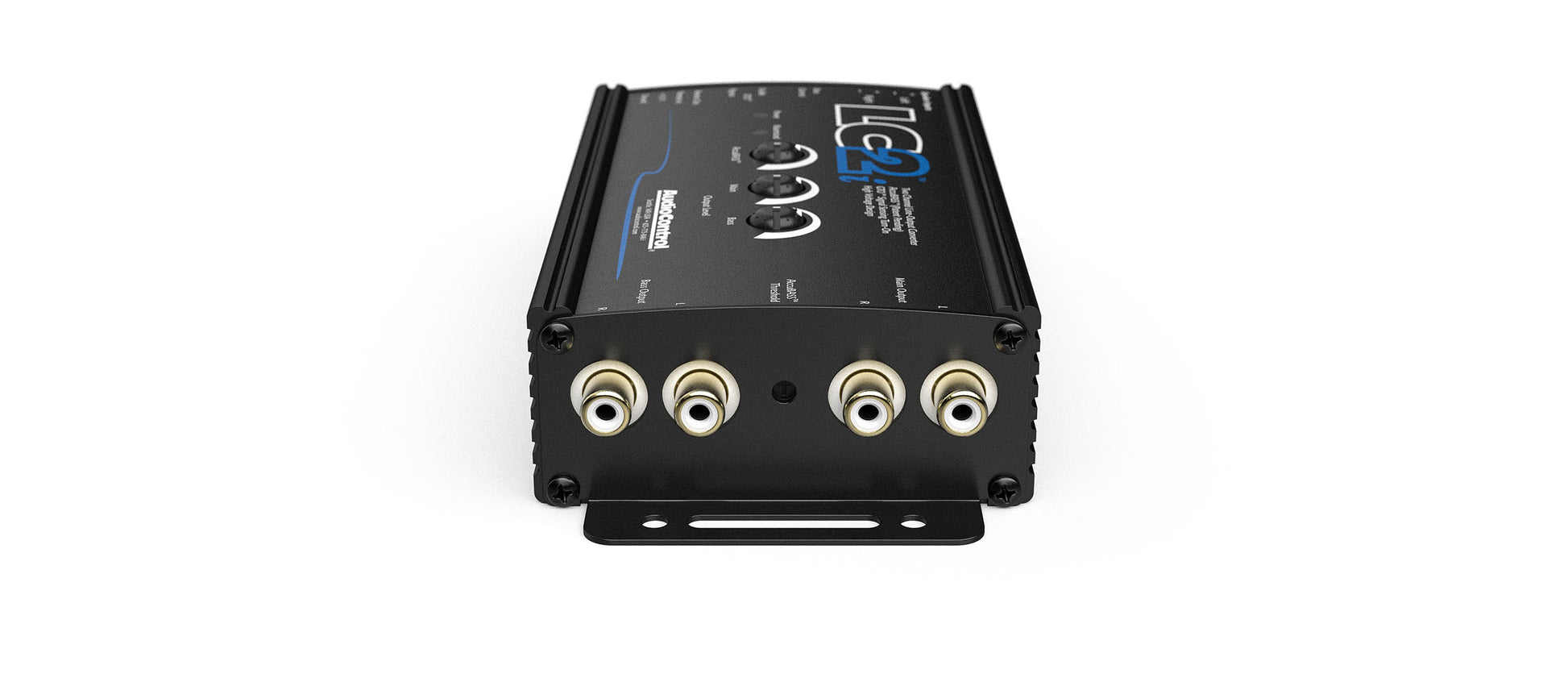

OUTPUTS:
Preamp Outputs: 2 (2 channels main, 2 channels bass).
Maximum Output Level: 9.5Vrms/13V peak.
Output Impedance: 150Ω
PERFORMANCE:
Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 33 Hz – 100 kHz ±1 dB
CONTROL:
Remote In
12VDC Remote Out (always active when unit is on)
GENERAL:
Current Draw: 150mA
Recommended Fuse Rating: 1A
WEIGHTS & DIMENSIONS
Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
Weight: 0.5kg
