Ampire KCX505

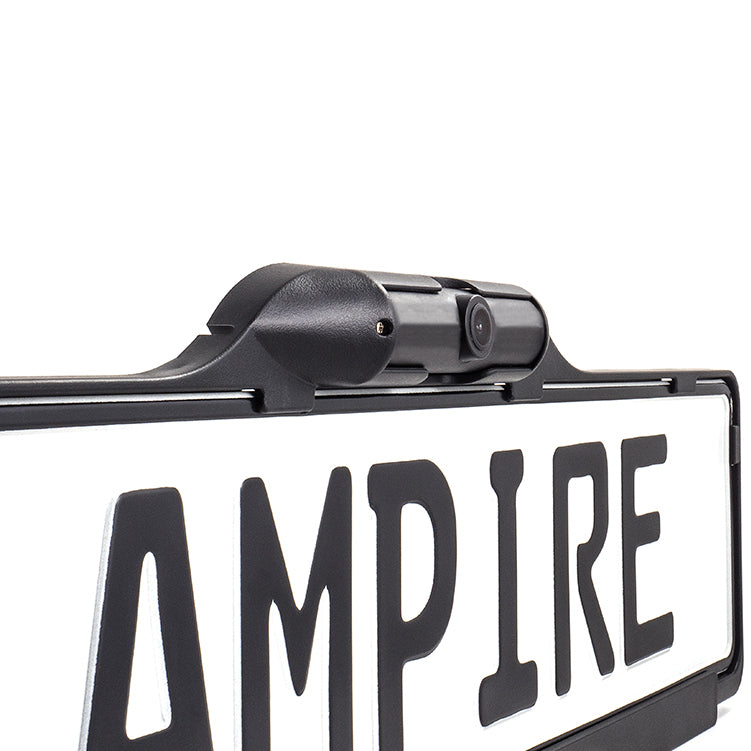

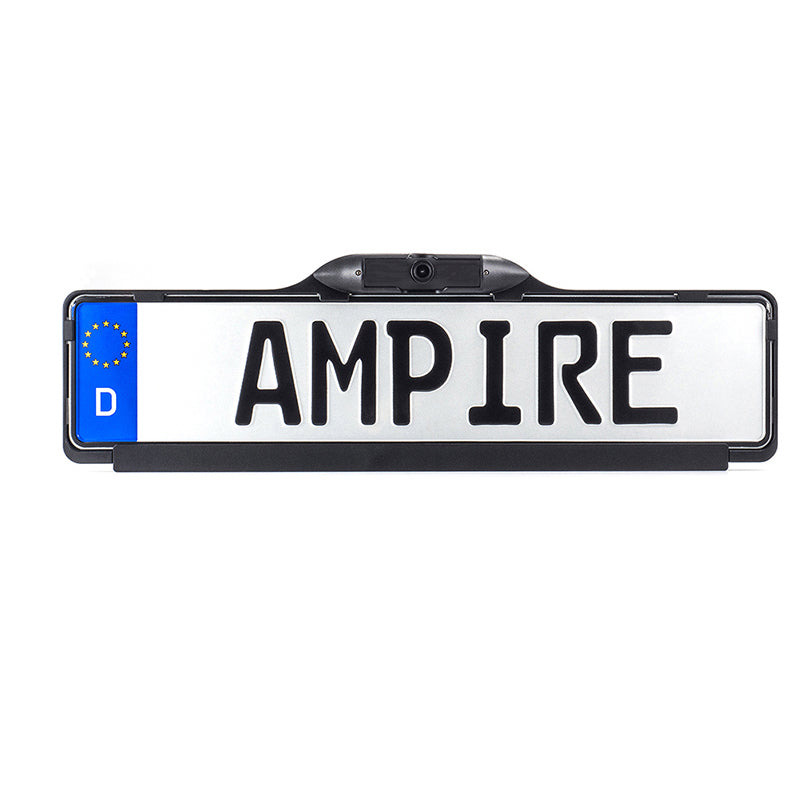

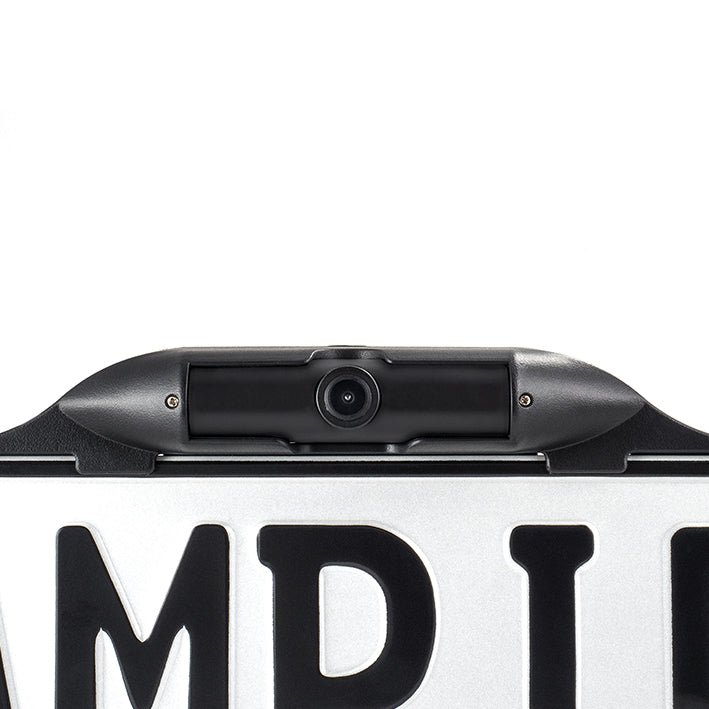

The KCX505 camera is a very high quality CMOS camera, integrated into a robust holder for mounting behind the EU-format license plate.
The camera's vertical viewing angle is of course infinitely adjustable to adapt to the inclination. The video signal is mirrored for mounting at the rear of the vehicle. This product has only been developed for EU license plates in the size 110x520mm. Please check before ordering whether your license plate fits.
For example, EU license plates from Austria are 10 mm higher and will not fit in the KCX505.

IMPORTANT:
When cleaning the vehicle, avoid direct contact between the camera lens and the pressure washer.
Do not install the camera at the front of the vehicle, the glass lens will be destroyed by gravel from vehicles in front.
The camera is not suitable for continuous operation or monitoring.
It must not be used with ignition (K15), only by activating the reverse signal, otherwise the camera may be damaged by overheating.

TECHNICAL SPECIFICATIONS:
Image sensor: 1/3" CMOS PC3089 color sensor.
- Switchable guide lines (on by default).
- Image reproduction: mirrored / normal (default mirrored).
- TV standard: NTSC.
- Viewing angle: 150° diagonally 120° horizontally.
- Degree of protection according to DIN 40 050: IP69.
- Effective resolution in pixels: 720 (H) x 480 (V).
- Frame rate: 60Hz.
- Video signal: 1.0Vpp, 75 Ohm.
- Level / White Balance:
Automatic- Operating temperature: -20°C to 70°C; RH 95%.
- max. storage temperature: -40°C to 80°C; RH 95%.
- max. dimensions: 158 mm x 530 mm.
- Video connection cable: 10 m length.
- Cinch video connector (male).
- Power connection cable: 1.2 m length.
- Operating voltage: 12/24 volts DC-.
Power consumption: 82mA.
- E-approval: E13*10R00*10R05*14176*00

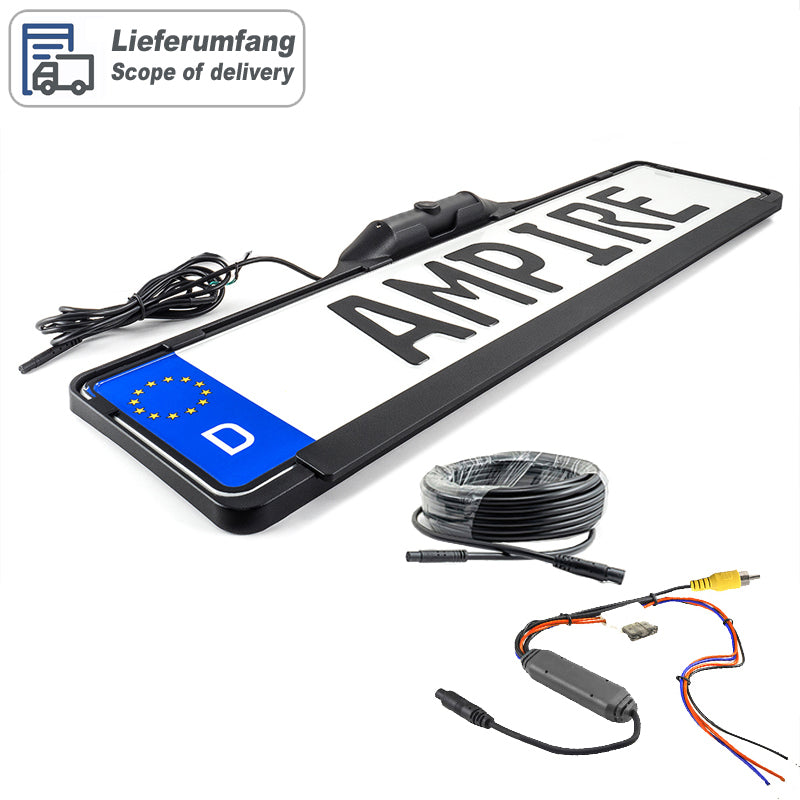

SCOPE OF DELIVERY
- Camera.
- AK1035 power supply.
- AK1034 Mini-DIN extension cable 10m.
