Ampire KCX302

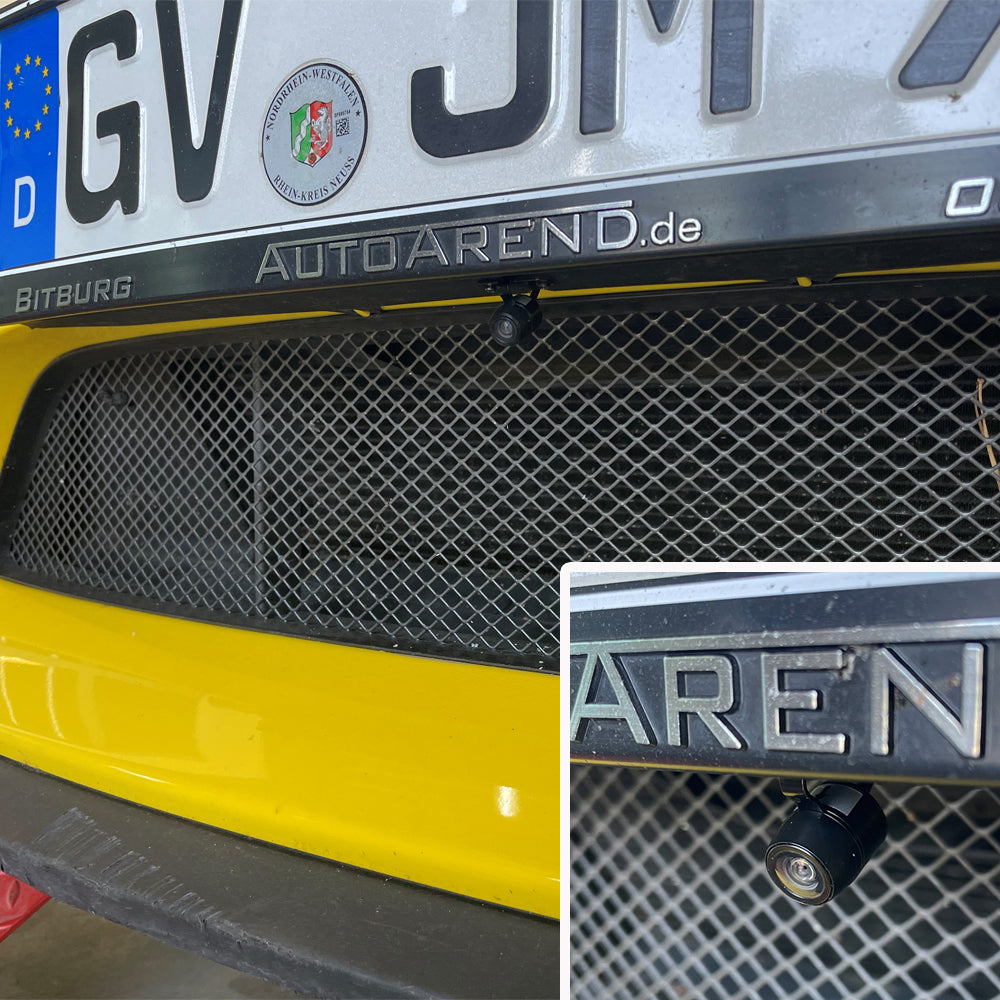

The new KCX302 miniature car camera is a reversing camera with an unlimited range of applications in cars, buses, campers, trucks or trailers. The matt black housing is particularly weatherproof, IP69K waterproof and very robust. As an option, two different guide lines (narrow/wide) can be displayed in the video signal to make parking easier for the driver. Comes complete with 8-meter extension cable with high-quality copper wires.

FEATURES:
-Wide-angle camera in plastic housing.
- Can be used in 24/7 continuous operation.
- IP69K waterproof with stainless steel bracket.

TECHNICAL DATA:
- 2 different help lines: factory disabled (can be turned on).
- Matte black housing with stainless steel mounting hardware.
- Image display: mirrored (adjustable).
- Image display: rotated 180° (adjustable).
- Image sensor type: 1/4'' 1233 HD Color CMOS Low Light Sensor.
- Video signal: NTSC with 60 frames/second.
- Pixel resolution: 960H-480V.
- DIN protection class: IP69K.
- Resolution: 800 TV lines.
- Exposure: 1/50-60 ~ 1/15000 seconds
- Signal-to-noise ratio = > 46 dB
- Dynamic range >>74 dB
- Light sensitivity < 0.01 Lux / F1.2
- Output signal 1.0 Vp-p, 75 OHM
- Automatic white balance.
- Automatic adjustment of
video level
- Operating voltage 12 Volt DC-
-Power consumption 25-55mA
- Diagonal viewing angle 170 °
- horizontal viewing angle 115
- Vertical viewing angle 95
- Camera mounting dimensions 12.5 x 15 mm
- Operating temperature -40°C to +75°C
- Storage temperature -60°C to 105°C
- E-certified
