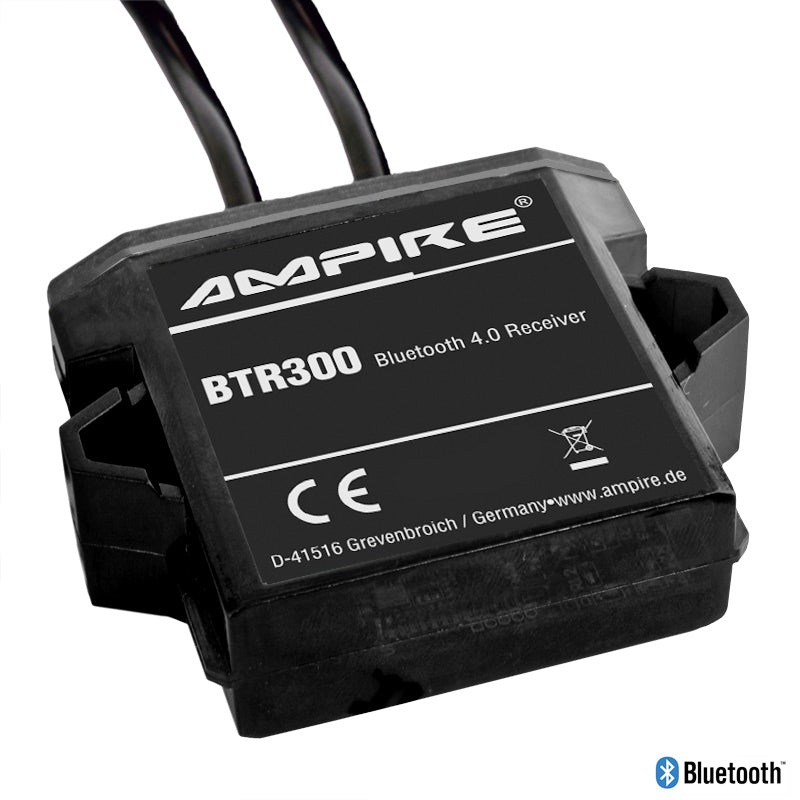

Ampire Bluetooth Receiver BTR300

Bluetooth receiver for easy connection via USB and AUX sockets.

Just connect the plugs – Plug & Play
Power supply via USB and music playback via the cable
The Bluetooth receiver can be installed discreetly, hidden away because it has no buttons that need to be used
All settings such as volume, music selection and play/pause are performed on the device

Waterproof, marine certified
Automatic activation
QDL-licensed Bluetooth 4.0 CRS I9chip
A2DP in the highest EDR specification – BT audio streaming also uncompressed files such as Wave, Flac, Lossless, MP3 etc.
3.5 mm jack plug with signal output 1.0 V
SSID display name: BTR300

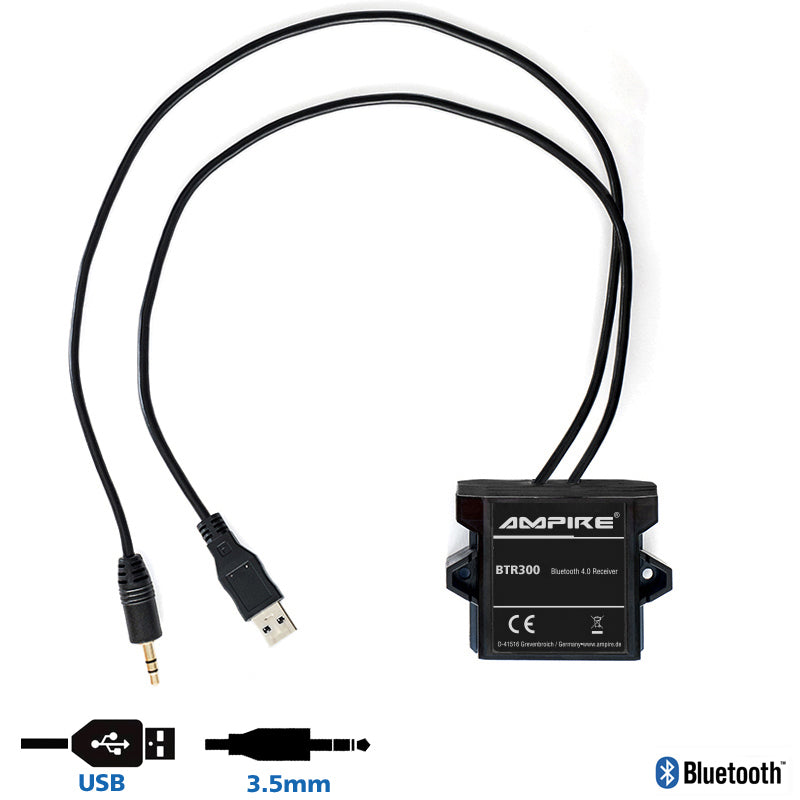

Connections:

USB input (5 VDC power supply)
3.5 mm jack output

Technical specifications:

Voltage: 5 volts DC
Current consumption: 40 mA max.
Bluetooth 4.0
Frequency range: 20 Hz-20 kHz
Output voltage: 1 V RMS
Cable length: 300 mm

Note:

Multiple devices can be connected to the BTR300, but only one device can stream music at a time
The BTR300 always remembers the last device used and automatically connects when turned on
A connection to another device must be made manually
If the connected device is out of range for more than one minute, the connection will be automatically disconnected and the BTR300 will enter pairing mode [LED (6) will flash]
BLUETOOTH APPROVAL – Declaration ID D025151 Referred to Qualified Design ID 56386 – Date of Registration 08 December 2014
