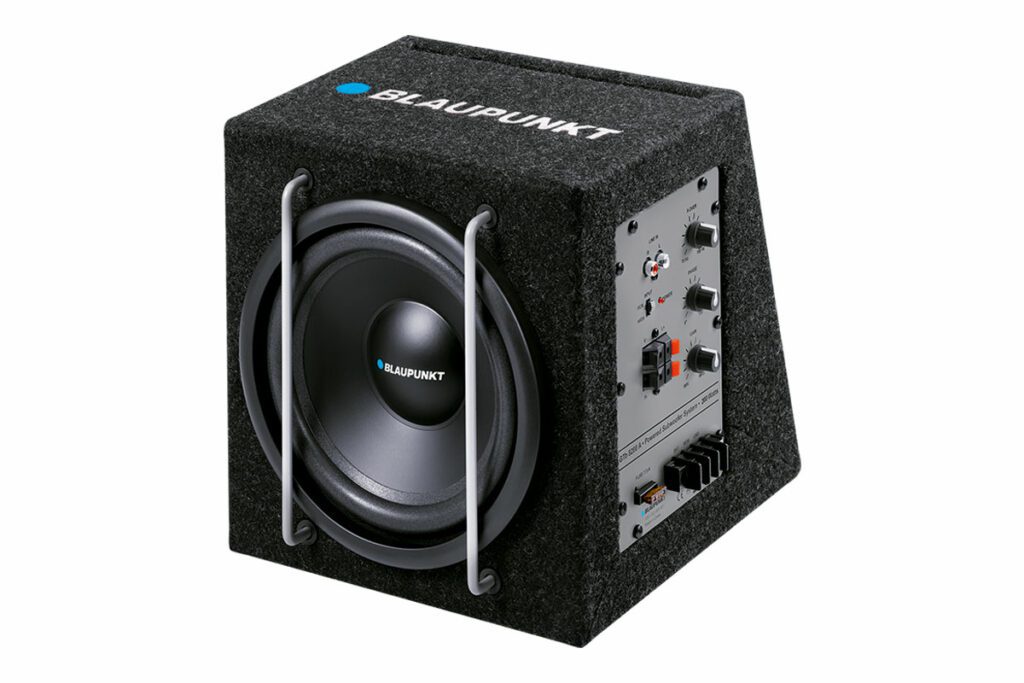

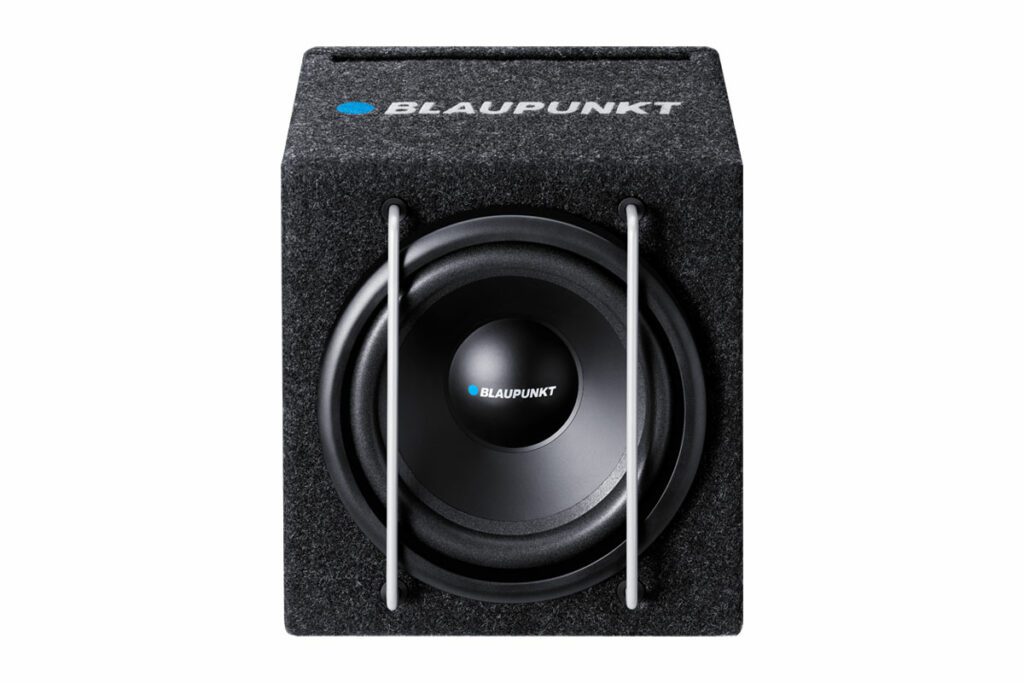

Blaupunkt GTb 8200 A

Experience high-quality bass from Blaupunkt. Equipped with advanced Class-D technology, the amplifier delivers up to 200 watts of maximum power and a stable RMS power of 75 watts. With adjustable settings for low-pass filter, phase and an impressive frequency response, you can tailor the sound exactly how you want it.

Amplifier

Technical concept: Class-D
Max power (Watts): 200
RMS power (Watts): 75
Frequency response (Hz): 300-200
Low-pass filter (Hz): 70–190
Phase (°): 0-180
Input sensitivity (V): 0.3-8
Cinch (RCA) / high-level inputs: 2 / 2
Automatic on/off function: after approximately 30 seconds
Power indicator color: Green
Error indicator color: Red
Integrated fuses (number/value): 1 / 7.5 A

Subwoofers

System: Single cone subwoofer
Diameter (mm): 200
Impedance (Ohms): 2 x 2
Frequency response (Hz): 30-200
Sound pressure level dB (2.83 V/m): 92
Cone material: Spun paper cone (SPC)

House

System: Bass reflex
Cover material/color: Carpet/black

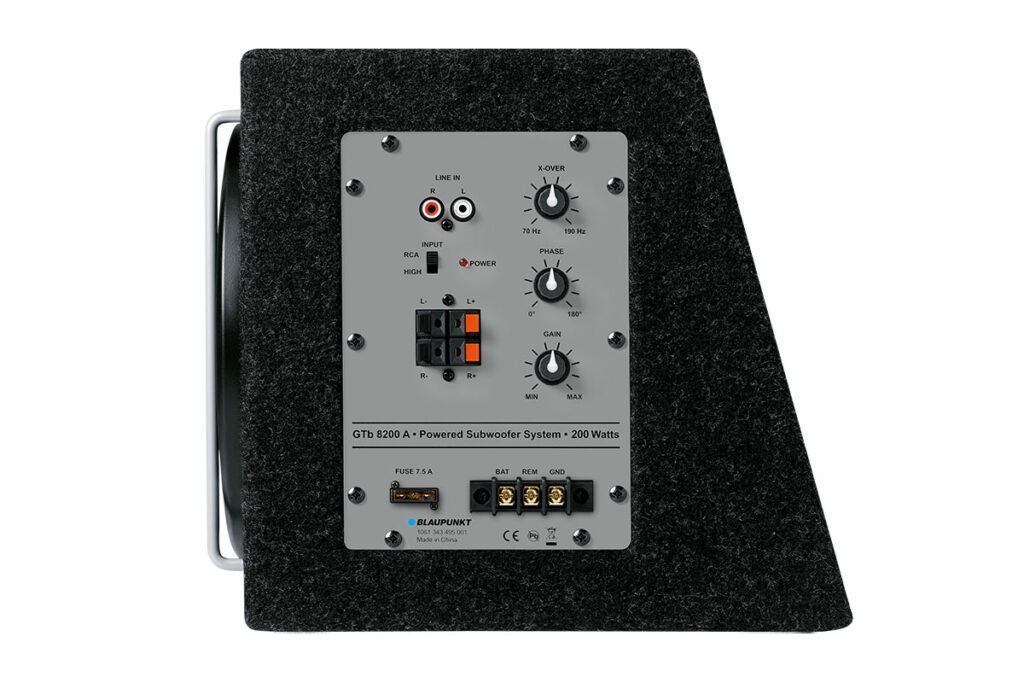

Connections 12V/ground/switching voltage: Screw terminals
Dimensions (W x H x D): 250 x 272 x 260 mm
Weight: 6.9 kg

Scope of delivery

Installation and operating instructions: Yes
Metal cover for subwoofer: Yes
