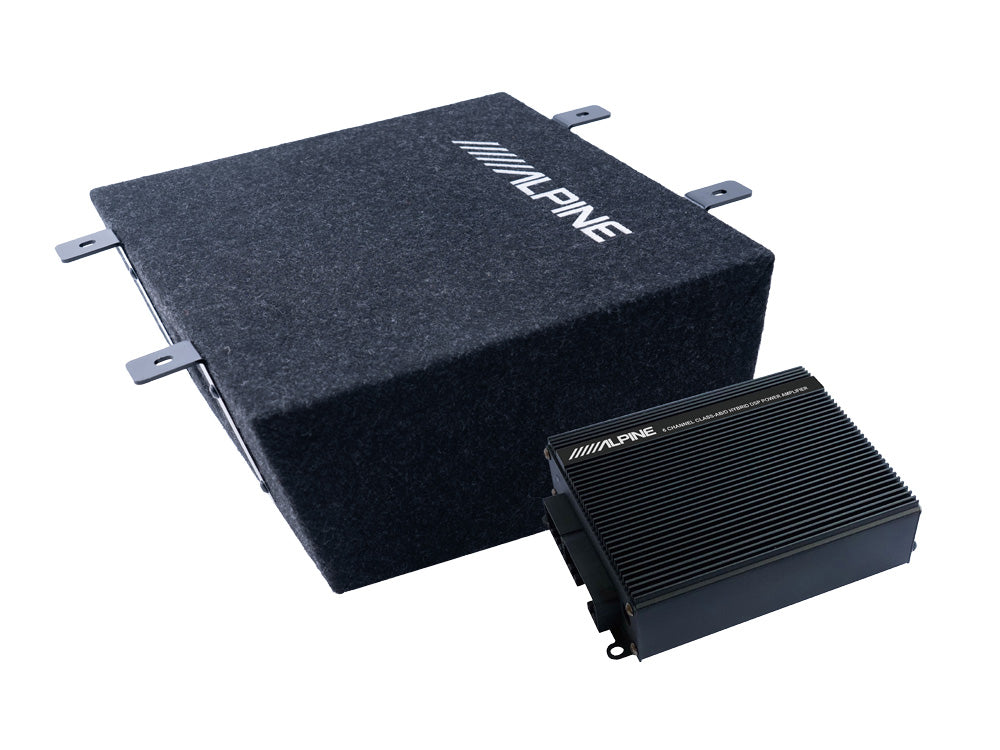

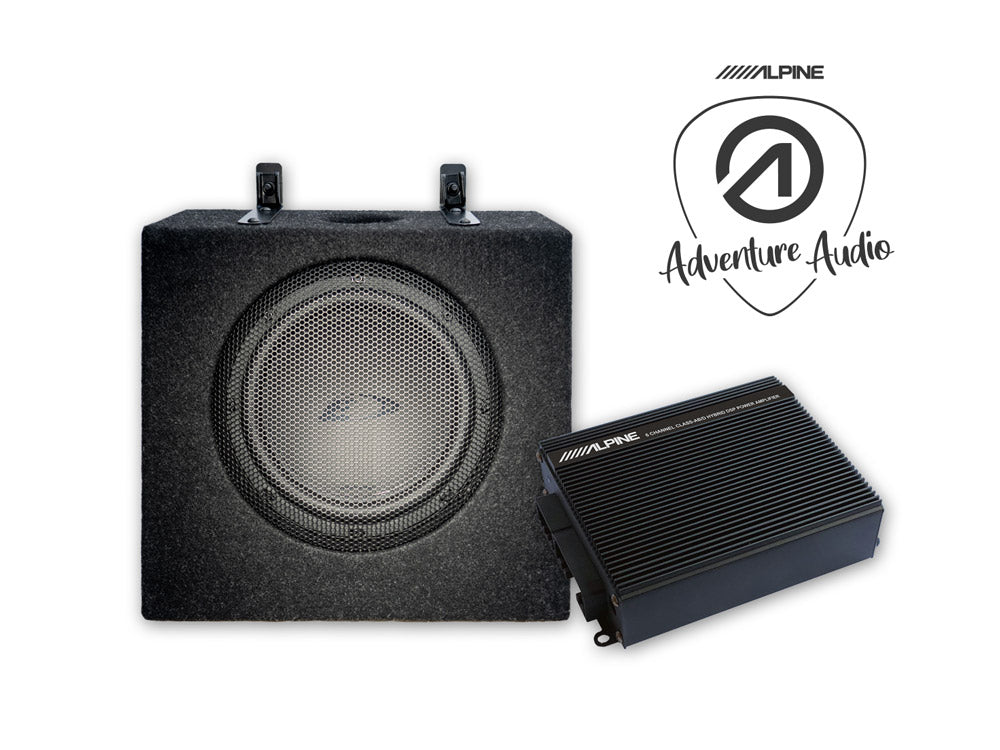

Upgrade your Alpine Adventure Audio speaker system for Volkswagen T6.1 or T6 to Concert Ensemble with the new SPC-D84AT6 550 Watt 6-Channel DSP Amplifier and Subwoofer System.
This audio upgrade will add plenty of power, dynamics and bass to your existing Alpine speaker system to achieve the ultimate listening experience in your vehicle.

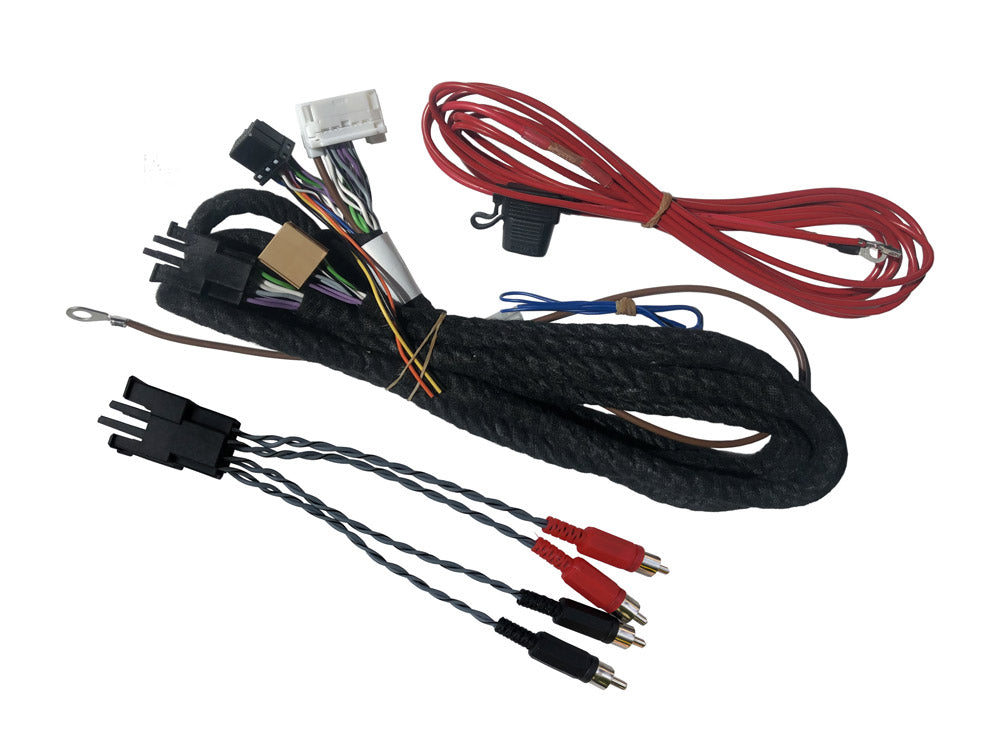

The 550 Watt DSP amplifier is pre-programmed to perfectly match the audio characteristics of the Volkswagen T6.1 and T6, ensuring excellent sound quality, while the included wiring harness for Alpine or other aftermarket radios allows for quick plug-and-play installation in your vehicle.
The included 180-watt subwoofer with a wooden enclosure for installation under the passenger seat delivers powerful bass and is even compatible with the rotating seat on the California camper van.
Note: This system is designed to work with Alpine or other aftermarket radios with RCA pre-amp outputs only. If your T6.1 or T6 has an original Volkswagen radio installed, please select the SPC-D84AT6 instead.
Technical data:

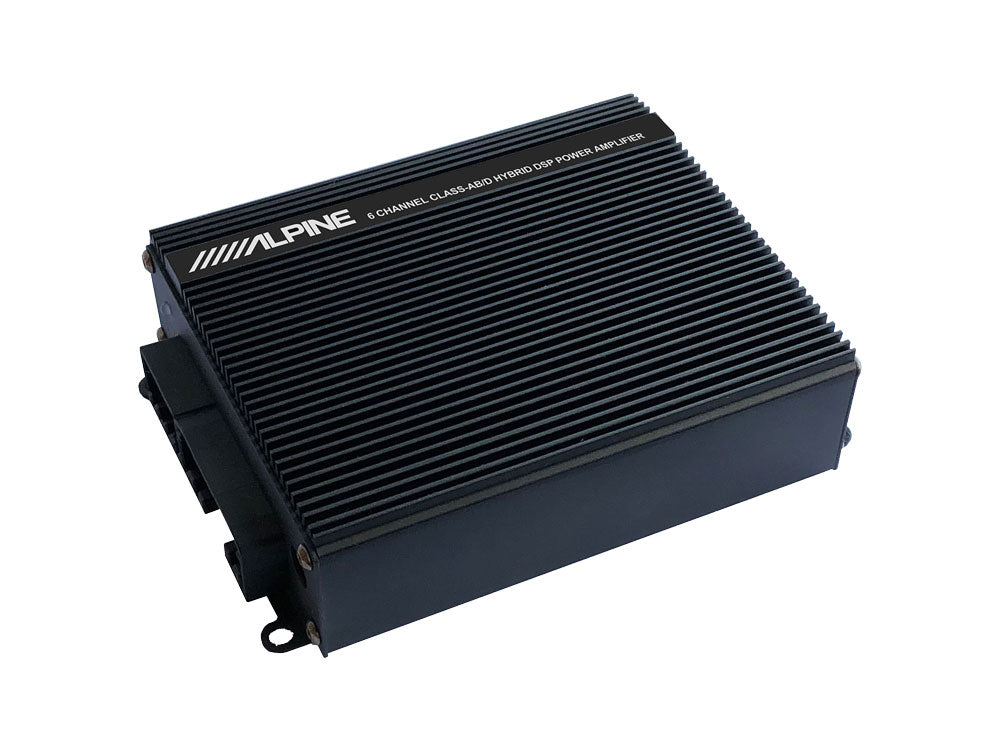

DSP amplifier:
6-channel DSP amplifier.
550 Watts maximum output power
4x 28 watts + 2x 55 watts RMS (<10% THD, 4Ohm)
Class AB (channels 1-4) and Class D (channels 5+6) amplification circuits.
4x Low-level inputs.
Dimensions: 100 mm x 40 mm x 122 mm (134 mm with connected connectors).
Pre-programmed VW T6.1 / T6 sound settings with digital time correction.
Adjustments for left-hand drive or right-hand drive vehicles.
Designed to work with an Alpine or other aftermarket radio with RCA preamp outputs.

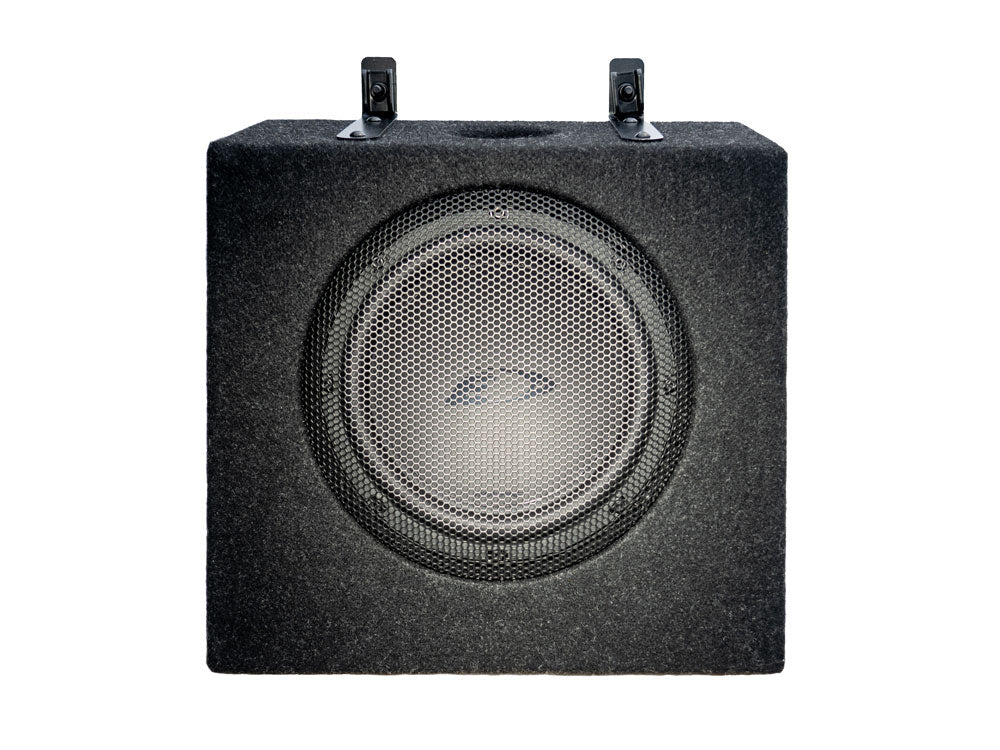

Subwoofers:

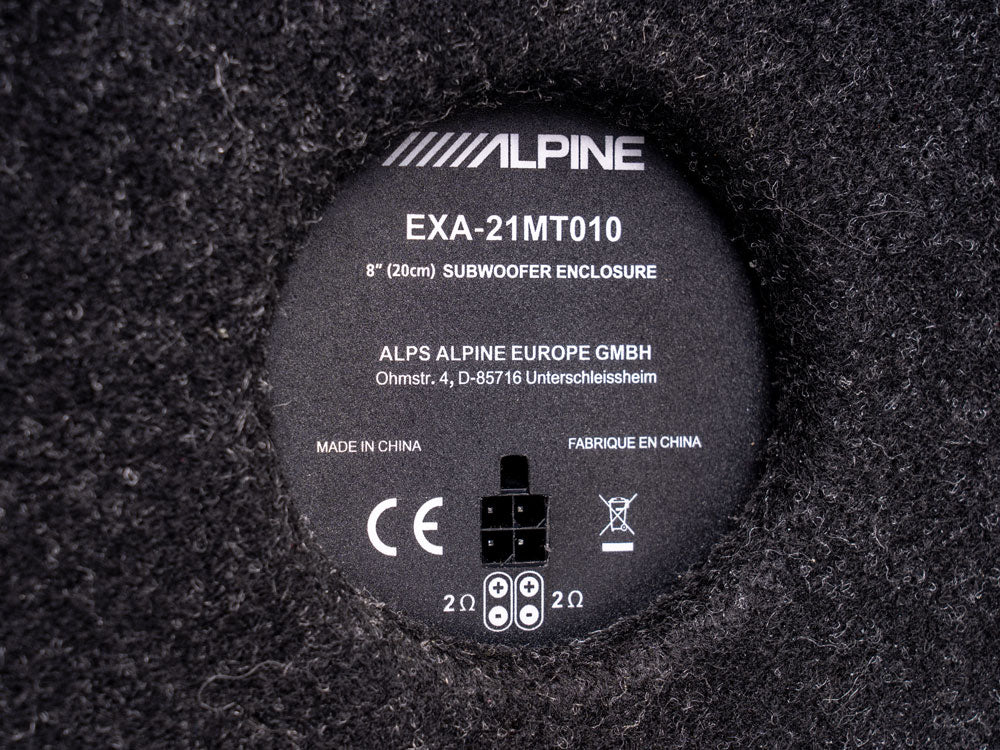

20 cm (8 inch) subwoofer with dual voice coil (2 Ohm + 2 Ohm).
Peak power of 180 Watts / RMS power handling of 60 Watts.
Frequency range: 34Hz – 1.5kHz.
Includes installation brackets for VW T6.1 / T6 installation under the seat.
Dimensions: 355mm x 330mm x 170mm.
Sensitivity: 91dB 1W/W.
Includes subwoofer grille.
