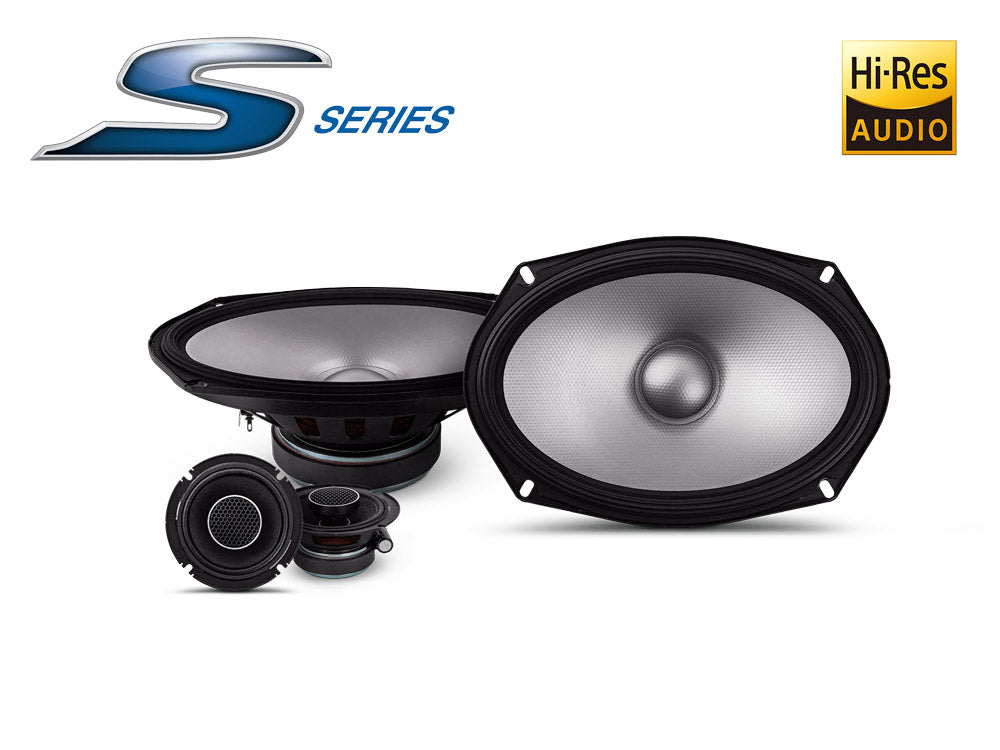

Alpine S2-S69C

The next generation S2-S69C 6 x 9-inch S-Series component speakers have been redesigned and are certified for High-Resolution Audio, offering a new standard for entry-level audio performance.

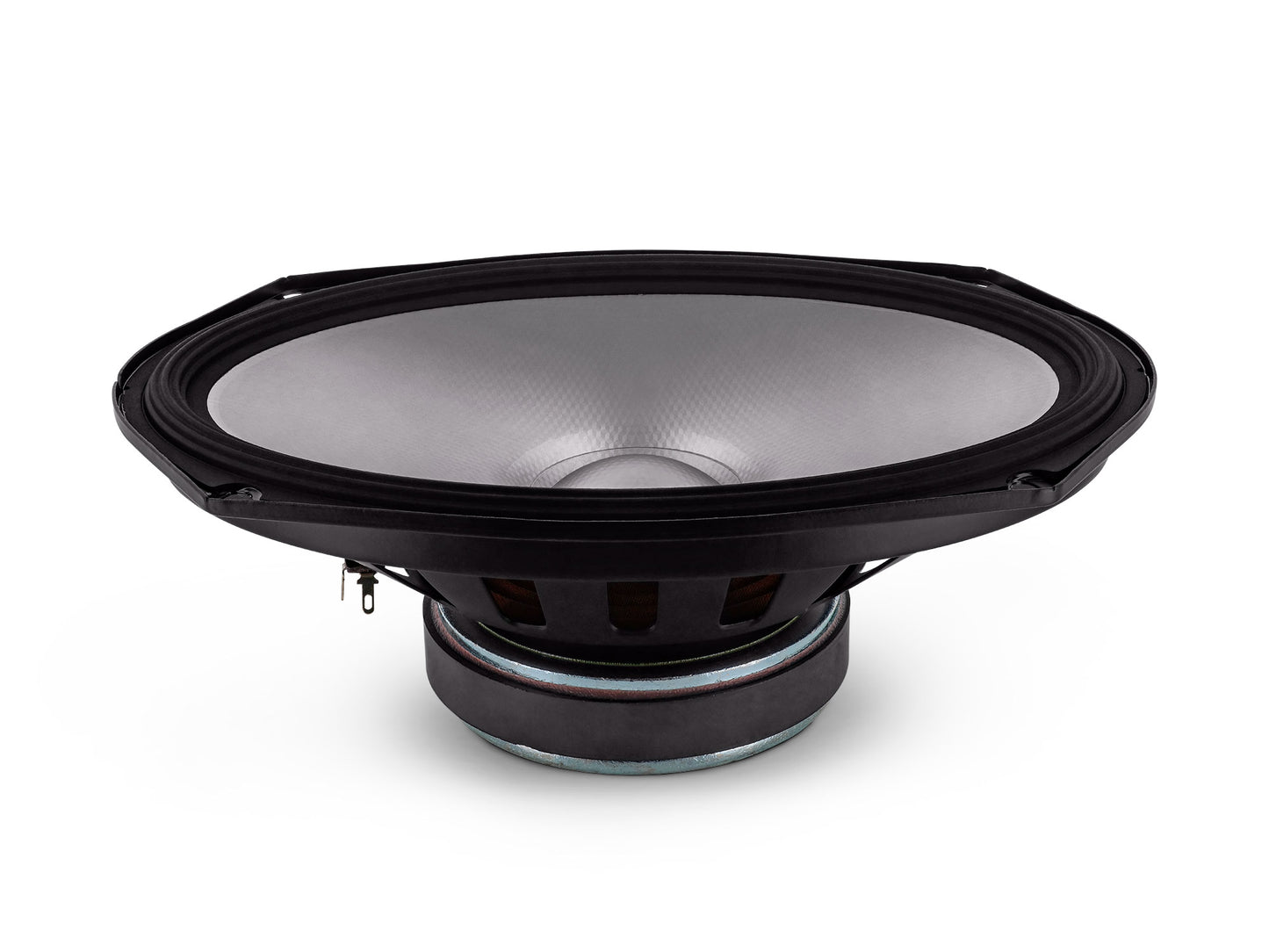

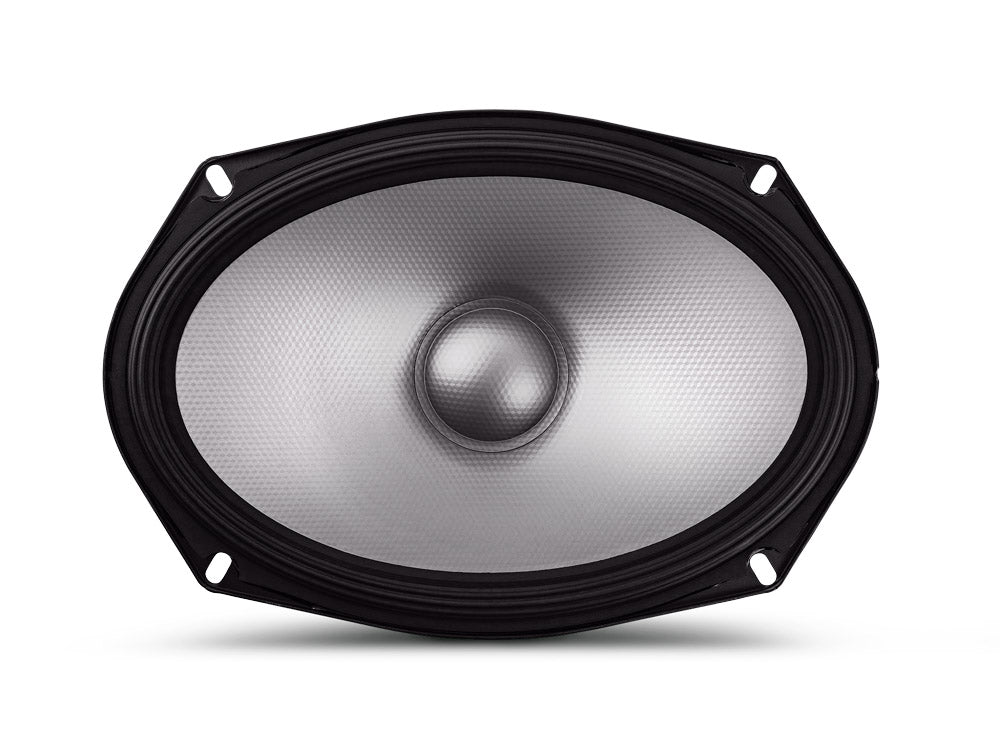

We've packed superior performance into these speakers by using highly efficient materials and design elements. The lightweight woofer cone, made from a combination of polypropylene, fiberglass and mica materials, delivers the essential high output/low distortion sound required for high-resolution audio performance. The Alpine S-Series speakers feature increased magnet sizes for better power handling and best-in-class mid-bass performance.

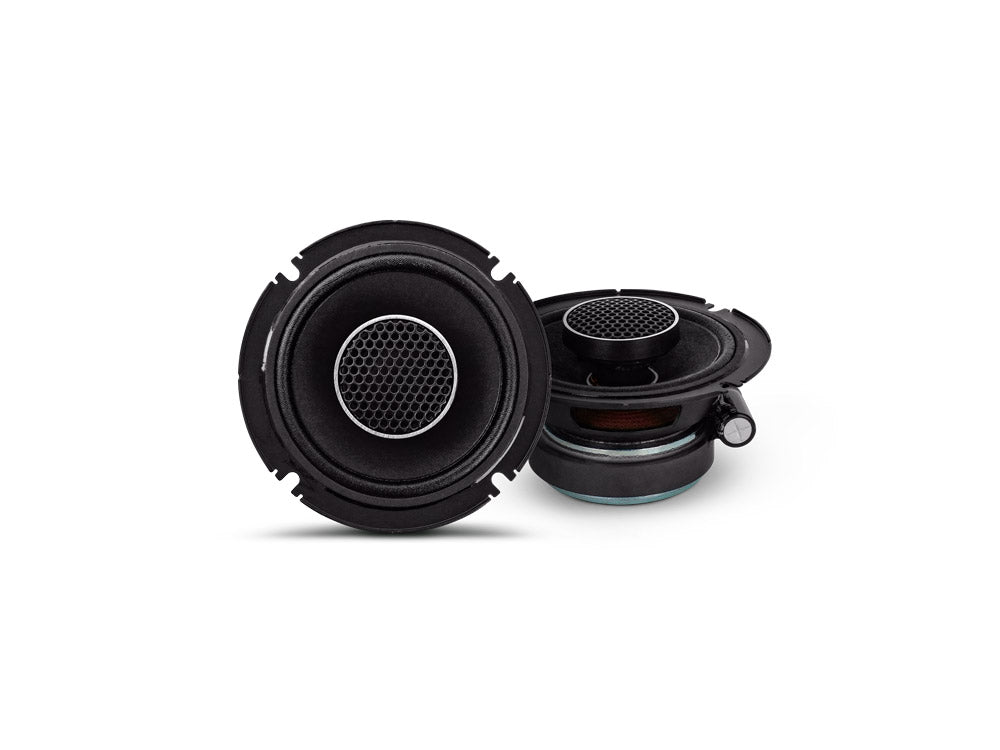

The woofer's HAMR (High Amplitude Multi-Roll) surround brings out the best in the bass by allowing maximum cone movement. A 3-inch (7.9 cm) midrange with 1-inch (2.5 cm) tweeter in a swivel housing delivers all the mid- and high-frequency detail you've been missing from your factory speakers.

All S-Series speakers have a wide range of applications and include several adapters and spacers. With the help of built-in crossovers, these speakers can be installed quickly and easily even at home.

The Alpine S-Series speakers are available in coaxial and component configurations and come in a variety of sizes, such as 20 cm, 16.5 cm, 13 cm, 10 cm, 6x9 inches, and 6x8 inches.

FEATURES:

Generally:

Woofer Size: 16 cm x 24 cm (6" x 9")
7.9 cm (3 inch) midrange with 2.5 cm (1 inch) tweeter in swivel housing
Certified for high-resolution audio (up to 40 kHz)
Polypropylene, fiberglass and mica cone materials
Lightweight design with high output and low distortion
High-Amplitude Multi-Roll (HAMR) Surround
Compatible with KTE-S69G speaker grille (sold separately)


SPECIFICATIONS:

Effect:
Peak power: 260 watts
RMS power: 85 watts

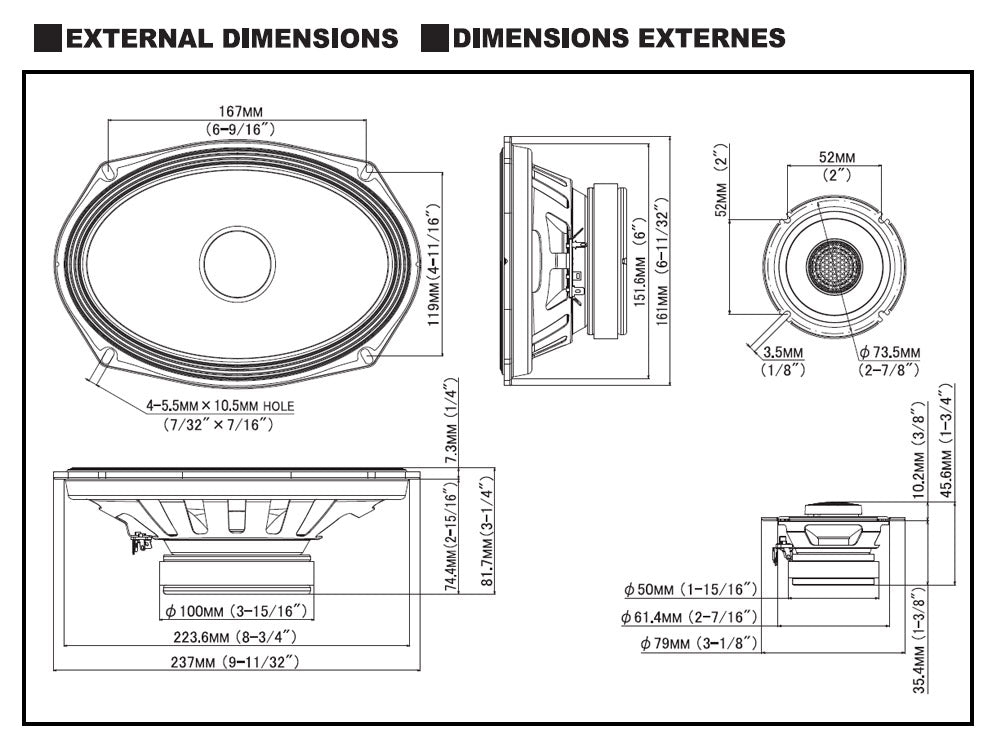

Woofer dimensions:
Cutout diameter: 15.2 cm x 22.4 cm oval
Mounting depth: 7.4 cm
Mounting height: 7.3 mm
Magnet: 100.0 mm

Mid-range tweeter dimensions:
Cutout diameter (flush mount): 6.2 cm circle
Mounting depth: 3.5 cm
Mounting height: 10.2 mm
Generally

Frequency range: 55 Hz - 40 kHz (Hi-Res Audio certified)
Impedance: 4 ohms
Sensitivity: 90 dB/W
