Alpine S2-S69

The next generation S2-S69 6 x 9 inch S-Series coaxial speakers have been redesigned and are certified for High-Resolution Audio, offering a new standard for entry-level audio performance.

We've packed superior performance into these speakers by using highly efficient materials and proprietary design elements. The lightweight woofer cone, made from a combination of polypropylene, fiberglass and mica materials, delivers the essential high output/low distortion sound required for high-resolution audio performance. Alpine S-Series speakers feature increased magnet sizes for better power handling and best-in-class mid-bass performance.

The woofer's HAMR (High Amplitude Multi-Roll) surround brings out the best in the bass by allowing maximum cone movement. A 2.5 cm (1 inch) dome tweeter delivers all the high-frequency detail you've been missing from your factory speakers.

All S-Series speakers have a wide range of applications and include several adapters and spacers. With the help of built-in crossovers, these speakers can be installed quickly and easily even at home.

The Alpine S-Series speakers are available in coaxial and component configurations and come in a variety of sizes, such as 20cm, 16.5cm, 13cm, 10cm, 6x9 inches and 6x8 inches.

FEATURES:

Generally:
Woofer Size: 16 cm x 24 cm (6" x 9")
Integrated 2.5 cm (1 inch) tweeter (coaxial)
Certified for high-resolution audio (up to 40 kHz)
Polypropylene, fiberglass and mica cone materials
Lightweight design with high output and low distortion
High-Amplitude Multi-Roll (HAMR) Surround

Compatible with KTE-S69G speaker grille (sold separately)

SPECIFICATIONS:

Power management:
Peak power: 260 watts
RMS power: 85 watts

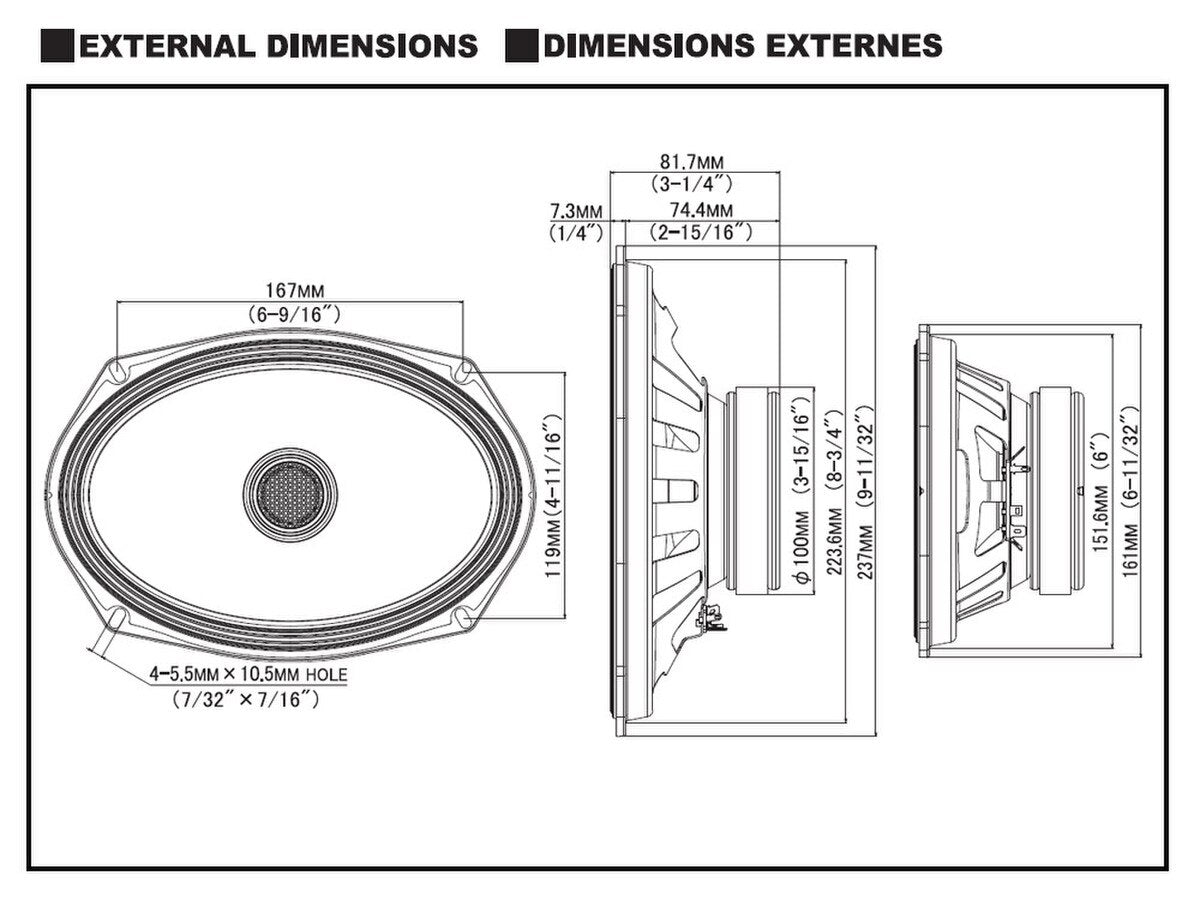

Woofer dimensions:
Cutout diameter: 15.2 cm x 22.4 cm oval
Mounting depth: 74.4 mm
Mounting height: 7.3 mm
Magnet: 100.0 mm

Generally:
Frequency range: 55 Hz - 40 kHz (Hi-Res Audio certified)
Impedance: 4 ohms
Sensitivity: 90 dB/W
