Alpine S2-S65

Newly designed and Hi-Res Audio certified, the next generation of S-Series S2-S65 16.5 cm (6-1/2") coaxial speakers offer a new standard in entry-level audio performance.

We've packed these speakers with exceptional capability by using high-performance materials and proprietary design elements. The lightweight woofer, made from a combination of polypropylene, fiberglass and mica materials, delivers the necessary high-end sound with low distortion required for Hi-Res Audio performance. Alpine S-Series speakers feature larger magnets for higher output and best-in-class mid-bass performance.

The bass's High Amplitude Multi-Roll (HAMR) surround brings out the best in the bass by allowing maximum diaphragm movement. A 2.5 cm (1") dome tweeter provides all the high-frequency detail you've been missing from your factory-installed speakers.

All speakers in the S-Series line have a wide vehicle fitment range and include multiple adapters and spacers. With the help of in-line crossovers, these speakers can be installed quickly and easily even at home.

Alpine S-Series speakers are available in coaxial and component configurations and come in a variety of sizes, such as 20 cm, 16.5 cm, 13 cm, 10 cm, 6x9 inches and 6x8 inches.

- Woofer size: 16.5 cm (6.5”)
- Integrated 2.5 cm (1") tweeter (coaxial)
- Hi-Res Audio certified (up to 40 kHz)
- Polypropylene, fiberglass and mica cone material
- Lightweight design with high output and low distortion
- High-Amplitude Multi-Roll (HAMR) surround
- Compatible with KTE-S65G speaker grille (sold separately)

Power capacity
- Maximum power: 240 Watts
- RMS Power: 80 Watts

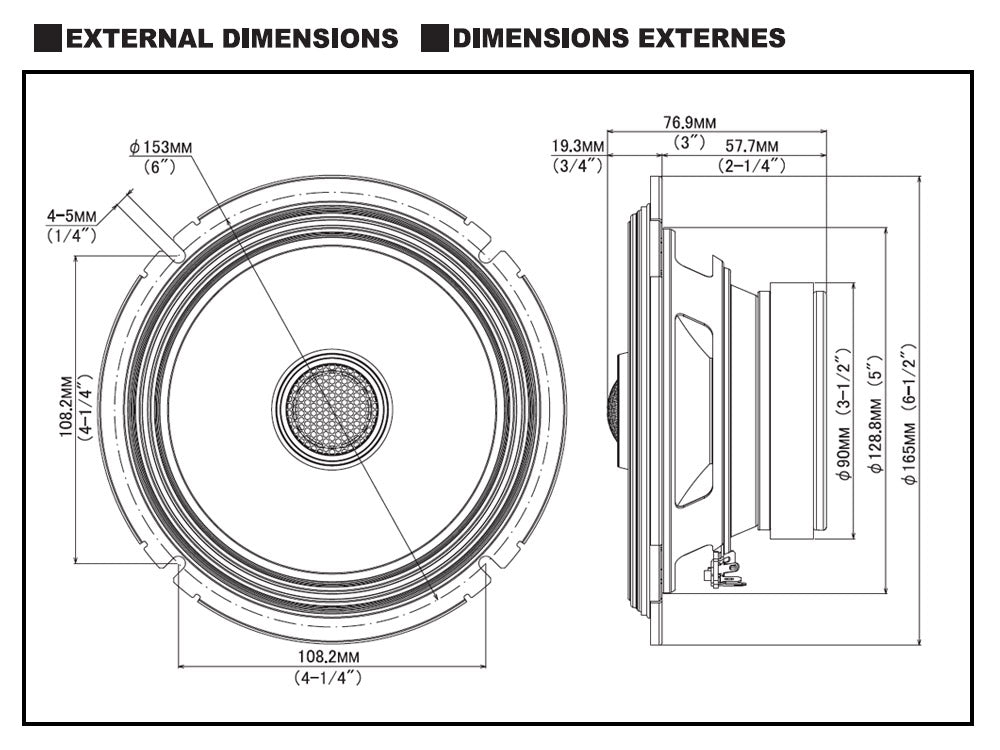

Woofer Dimensions
- Cutout diameter: 128.8 mm
- Mounting depth: 57.7 mm
- Mounting height: 19.3 mm
- Magnet: 90.0 mm

Generally
- Frequency range: 55 Hz - 40 kHz (Hi-Res Audio certified)
- Impedance: 4 Ohms
- Sensitivity: 88 dB/W
