Alpine S2-S40C

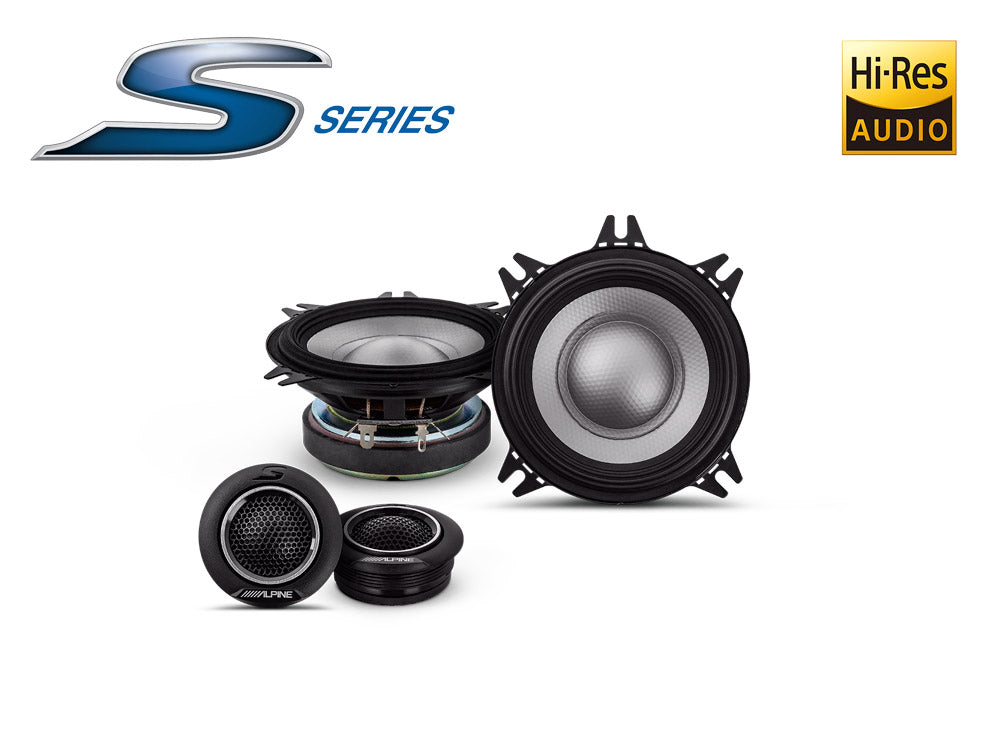

Newly designed and Hi-Res Audio certified, the next generation of S-Series S2-S40C 10cm (4”) component speakers offer a new standard in entry-level audio performance.

We've packed these speakers with exceptional capability by using high-performance materials and proprietary design elements. The lightweight woofer, made from a combination of polypropylene, fiberglass and mica materials, delivers the necessary loudness with low distortion required for High-Res Audio performance. Alpine S-Series speakers feature larger magnets for higher output and best-in-class mid-bass performance.

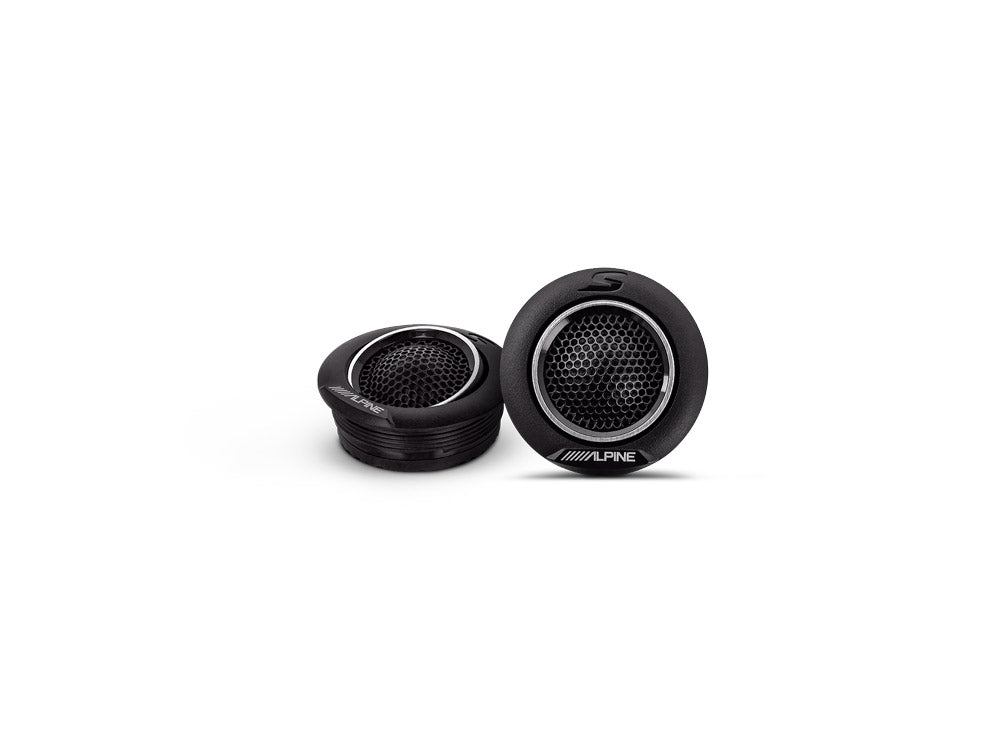

The bass's High Amplitude Multi-Roll (HAMR) surround brings out the best in the bass by allowing maximum diaphragm movement. A 2 cm (3/4") dome tweeter provides all the high-frequency detail you've been missing from your factory-installed speakers.

All speakers in the S-Series line have a wide vehicle fitment range and include multiple adapters and spacers. With the help of in-line crossovers, these speakers can be installed quickly and easily even at home.

Alpine S-Series speakers are available in coaxial and component configurations and come in a variety of sizes, such as 20cm, 16.5cm, 13cm, 10cm, 6x9 inches and 6x8 inches.

Generally
- Woofer size: 10 cm (4”)
- 2 cm (¾“) component tweeters with rotatable housing
- Hi-Res Audio certified (up to 40 kHz)
- Cone material: Polypropylene, fiberglass and mica
- Lightweight design with high output and low distortion
- High-Amplitude Multi-Roll (HAMR) surround

Power capacity
- Maximum power: 140 Watts
- RMS Power: 45 Watts

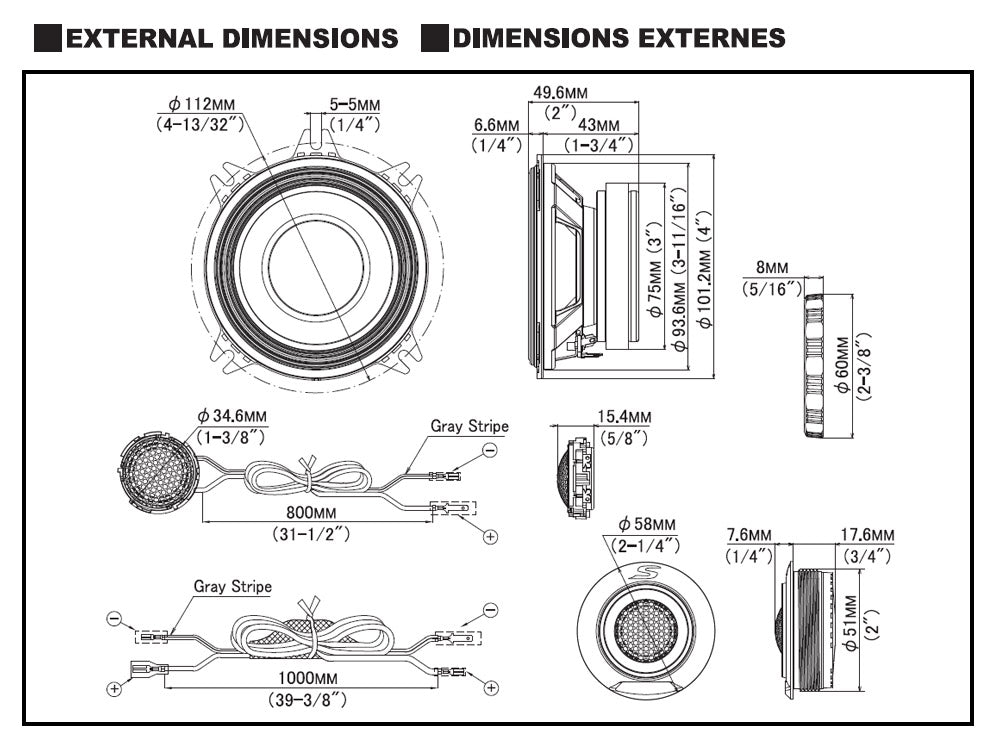

Woofer Dimensions
- Cutout diameter (flush mount): 93.6 mm
- Mounting depth: 43.0 mm
- Mounting height: 6.6 mm
- Magnet: 75.0 mm

Dimensions for Tweeter
- Cutout diameter (flush mount): 51 mm
- Mounting depth: 17.6 mm
- Mounting height: 7.6 mm

Generally
- Frequency range: 100 Hz - 40 kHz (Hi-Res Audio certified)
- Impedance: 4 Ohms
- Sensitivity: 85 dB/W
