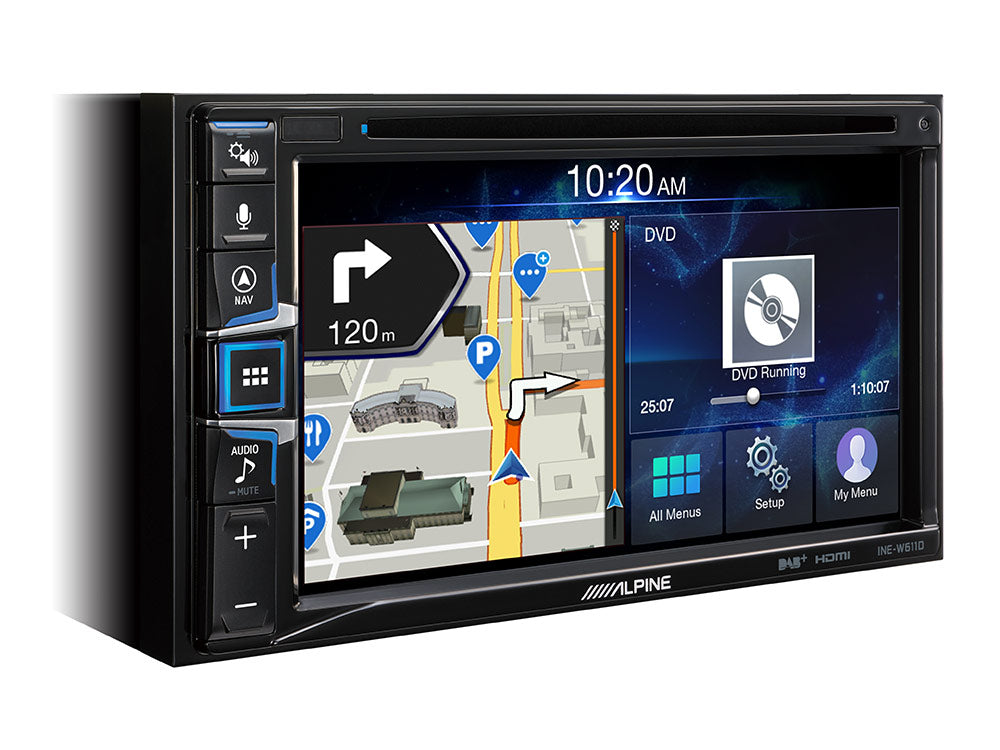

Alpine INE-W611D

The new INE-W611D navigation system is designed for cars and motorhomes that want a flush-mounted installation rather than a tablet-style system. This unit is a fantastic all-in-one solution with built-in iGo Primo navigation using TomTom maps, as well as a CD/DVD drive.

The 6.5-inch touchscreen displays navigation maps, menus and movies clearly. Enjoy DAB+ digital radio and use authorized apps in your car with Apple CarPlay and Android Auto. Take advantage of your two USB ports, which allow you to charge your phone and play music from your USB stick at the same time.

Display

Screen size: 6.5 inches
LCD type: Transparent type TN LCD
Number of pixels: 1,152,000 (800 × 480 × 3 (RGB))
Effective pixel count: 99% or more
Lighting system: LED

Tuner

FM frequency range: 87.5 – 108.0 MHz
AM/MW frequency range: 531 - 1,602 KHz
LW frequency range: 153 – 281 KHz
Mono usable sensitivity: 9.3 dBf (0.8 μV/75 ohms)
50 dB silence sensitivity: 13.5 dBf (1.3 μV/75 ohms)
Alternative channel selectivity: 80 dB

DAB

Frequency range BAND III: 174.928 - 239.2 MHz
Frequency range L-BAND: 1,452.96 - 1,490.624 MHz
Usable sensitivity: -101 dBm
Signal-to-noise ratio: 85 dB

USB

USB requirements: USB 2.0
Maximum current consumption: 1500 mA (CDP support)
USB class: USB (Mass Storage Class)
File system: FAT16/32
Decoding format: MP3/WMA/AAC/FLAC/OGG/APE/MP2
Number of channels: 2-channel (stereo)
Total Harmonic Distortion: 0.016% (at 1 kHz)
Dynamic range: 95 dB (at 1 kHz)
Signal-to-noise ratio: 85 dB
Channel separation: 75 dB (at 1 kHz)

HDMI

Input format: 480p/720p

Navigation

GPS receiving frequency: 1575.42 ±1 MHz
GPS reception sensitivity: -130 dBm max.

Bluetooth

Bluetooth specification: Bluetooth v4.0
Frequency band: 2,402 – 2,480 MHz
Output power: -6~+4 dBm Ave. (Power class 2)
HFP (Hands-Free Profile)
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)

Generally

Power requirement: 14.4 V DC (11–16 V allowed)
Operating temperature: 4°F to +140°F (-20°C to +60°C)
Maximum output power: 50W x 4
Preout (Front, Rear): 4V/10k ohm (max.)
Preout (Subwoofer): 4V/10k ohm (max.)
Weight (unit only): 2.05 kg

Chassis dimensions

Width: 178mm
Height: 100mm
Depth: 142mm
