Alpine ILX-F905D

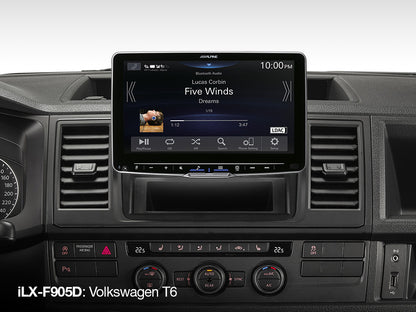

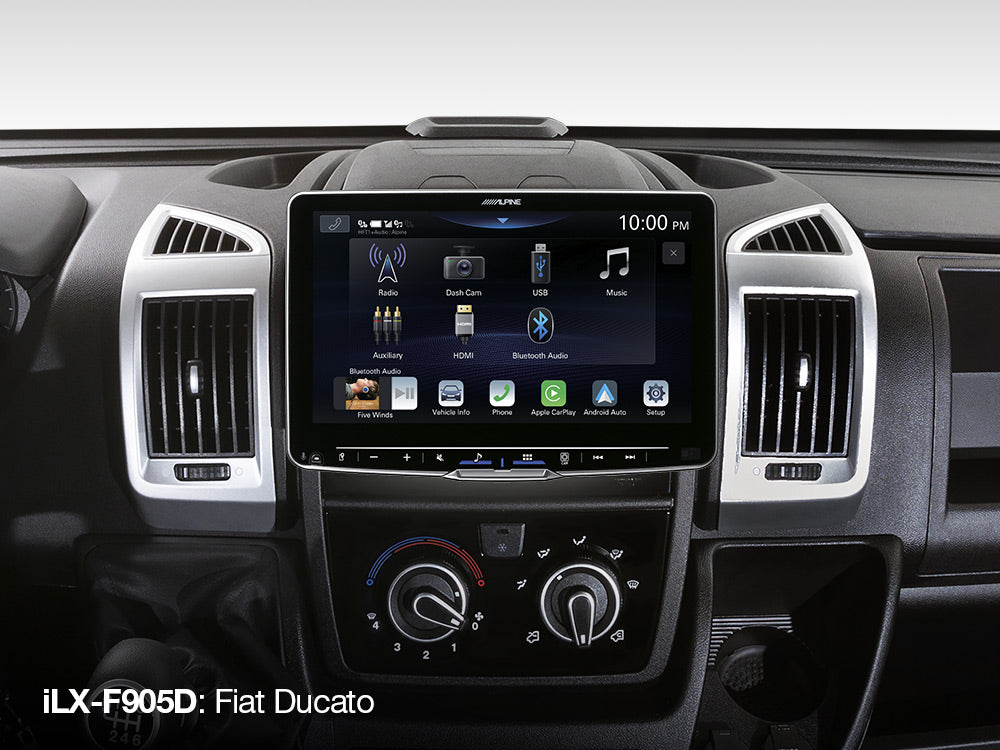

The Alpine Halo9 iLX-F905D is the second generation of Alpine's world-famous Halo product line and features a 9-inch high-resolution WXGA touchscreen. It is compatible with almost any vehicle with a 1DIN or 2DIN installation socket. The ultra-thin screen appears to float above the dashboard and can be adjusted in various ways for the best position.

Experience wireless compatibility with Apple CarPlay and Android Auto (wired), DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming with this fantastic head unit.

Bring exceptional sound quality to your vehicle: The Alpine Halo9 is the world's first head unit with a built-in Class-D amplifier and features a host of professional sound adjustment features, such as 2-way X-overs, a parametric EQ, digital time correction and much more.

Please note: Due to the weight of the large screen, we do not recommend mounting this radio in dashboards using only a traditional 1DIN frame. Use radio kits that are securely anchored to the dashboard.

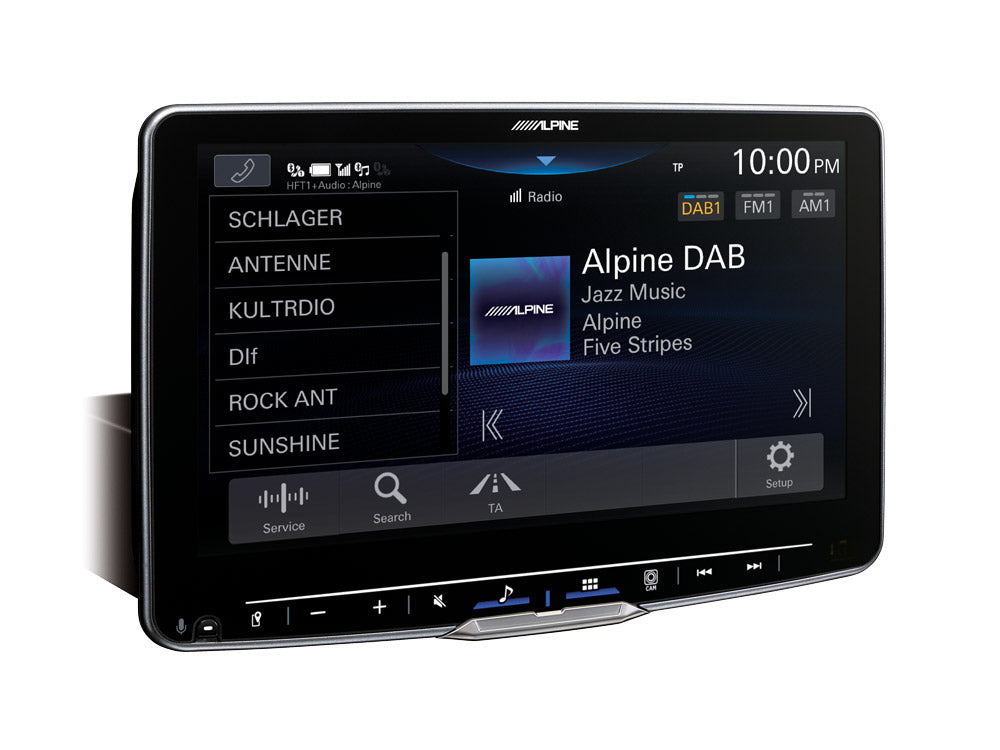

Radio / DAB tuner

Preset stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
Memory: Auto Memory
Search: Local, DX, Preset, Service
RDS functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB+/DMB support
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Auto Ensemble/Service Memory
Service search function
PTY search function
Alphabetical search function

Bluetooth

Built-in BLUETOOTH® module V4.2
HFP (Hands-Free Profile) Compatible
A2DP (Advanced Audio Distribution Profile) Compliant
AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Phonebook synchronization
Speed ​​Dial: 4 Preset Memories (per phone)
Call history: Outgoing calls / Incoming calls / Missed calls
Redial function
Speech volume level adjustment: (Outgoing and incoming)
24 Menu language
Microphone included
Works with iPhone®
Compatible with iPhones with lightning connector
Various search functions and album art display
Battery charging

Connection

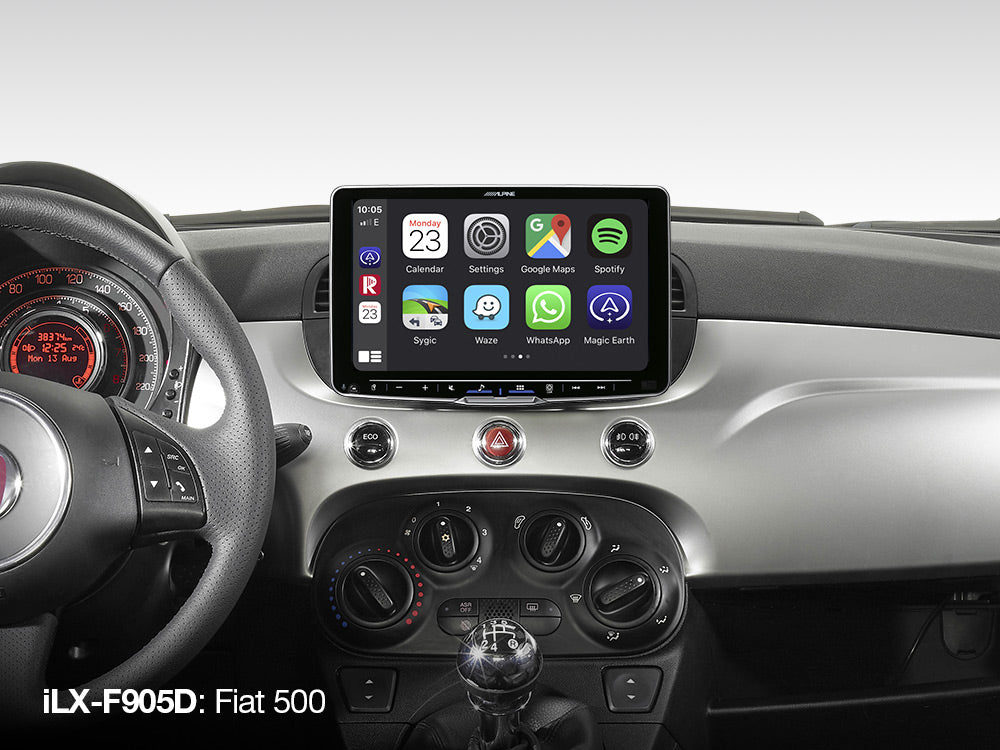

Works with Apple CarPlay wirelessly (requires CarPlay-enabled iPhone)

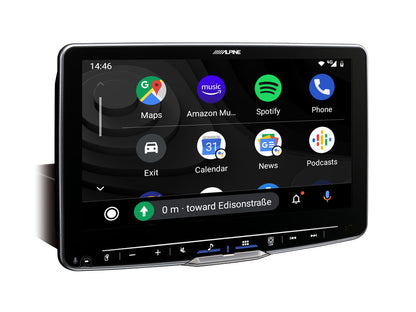

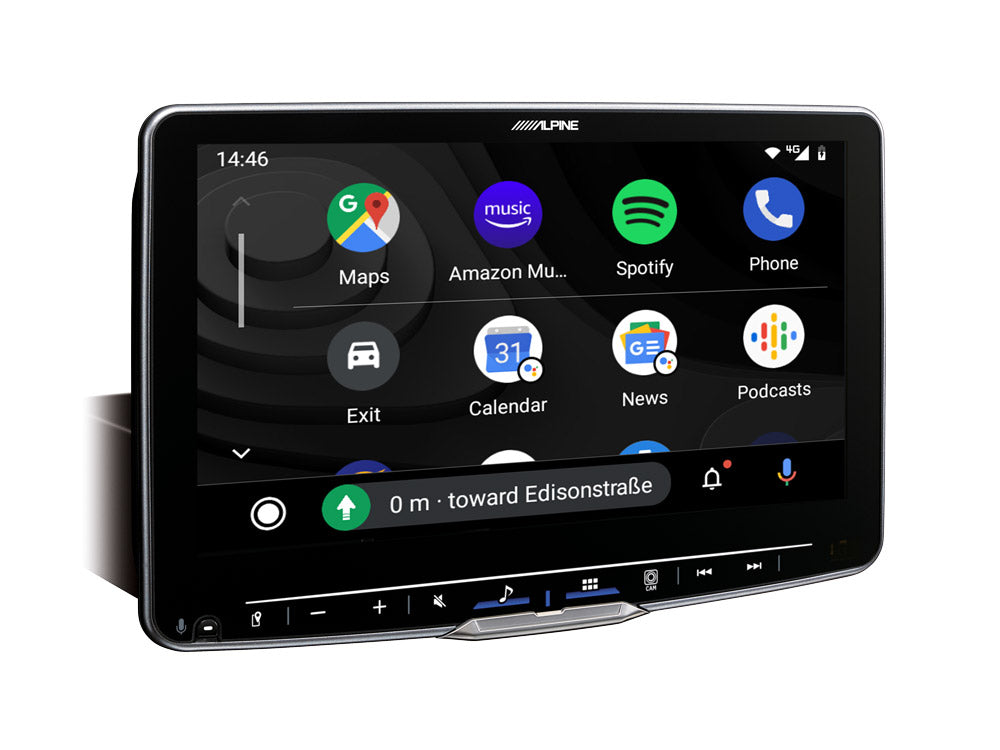

Works with Android Auto (requires Android Auto-enabled smartphone, wired connection)
Dash-Cam Link for DVR-C320S for playback and control of your dash cam

Navigation function

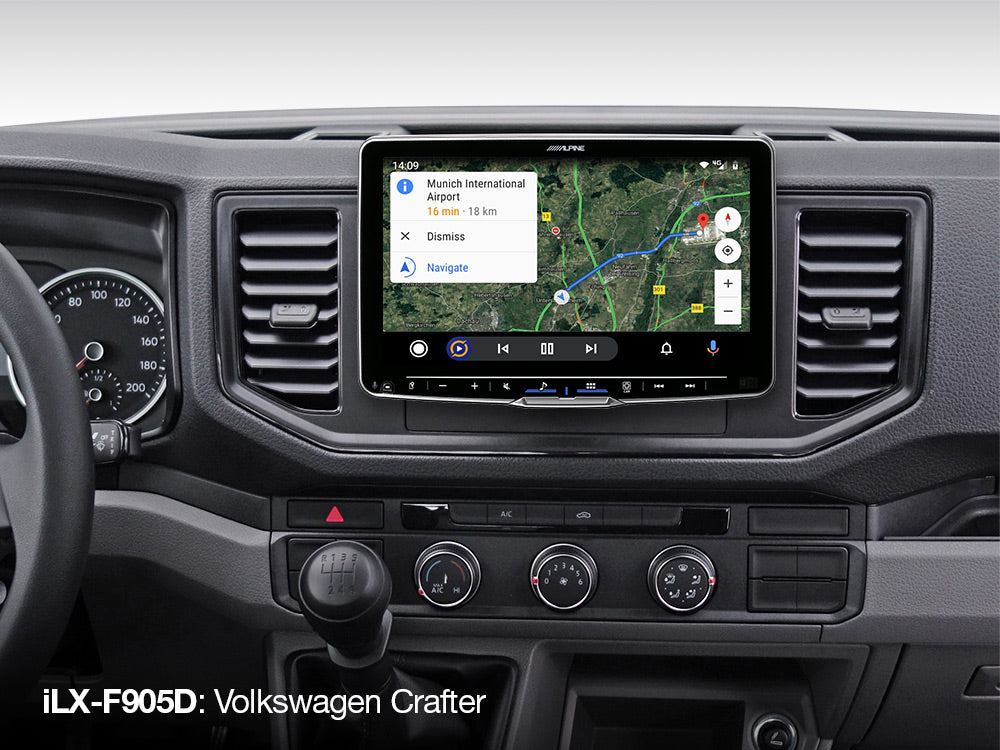

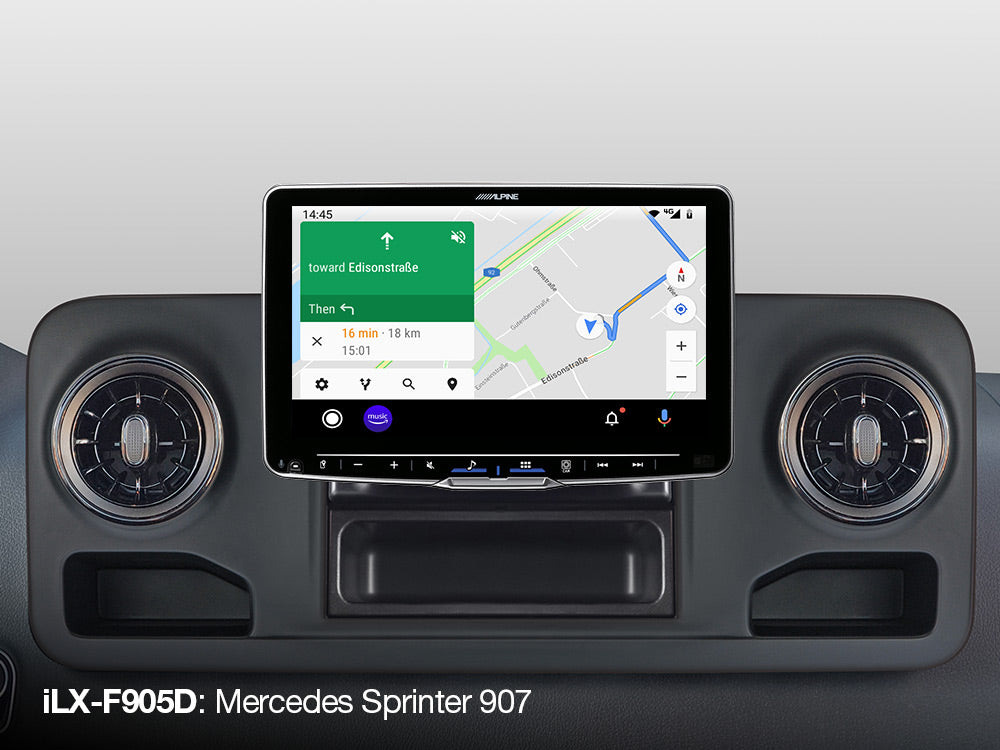

Online navigation function with Apple CarPlay and Android Auto compatible navigation apps
Includes GPS-enabled navigation antenna

USB Media Connection

2x USB cables included
USB port 1: data port / USB port 2: charging port
Music playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
Video playback: MP4, MOV, FLV, MKV compatible
Supported video encoding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
Various search functions included

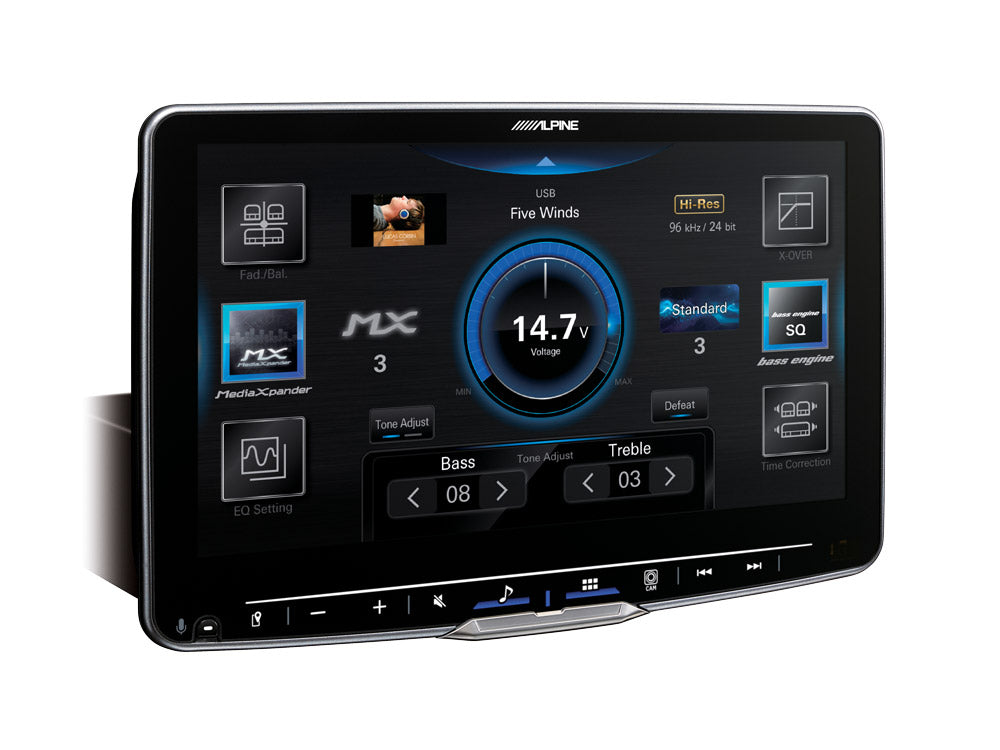

Sound adjustment

Bass Engine SQ and Bass Engine PRO sound tuning
Subwoofer level adjustment
6V PreOut
10 Equalizer presets
13-channel parametric EQ x4 audio channels + 4-channel for subwoofer
6-channel digital time correction
2-way digital crossover
Independent volume adjustment for source

Generally

4x 50 Watts Class-D High Power Amplifiers
9-inch capacitive touchscreen WXGA display (1280 x 720p)
Display angle adjustable after installation

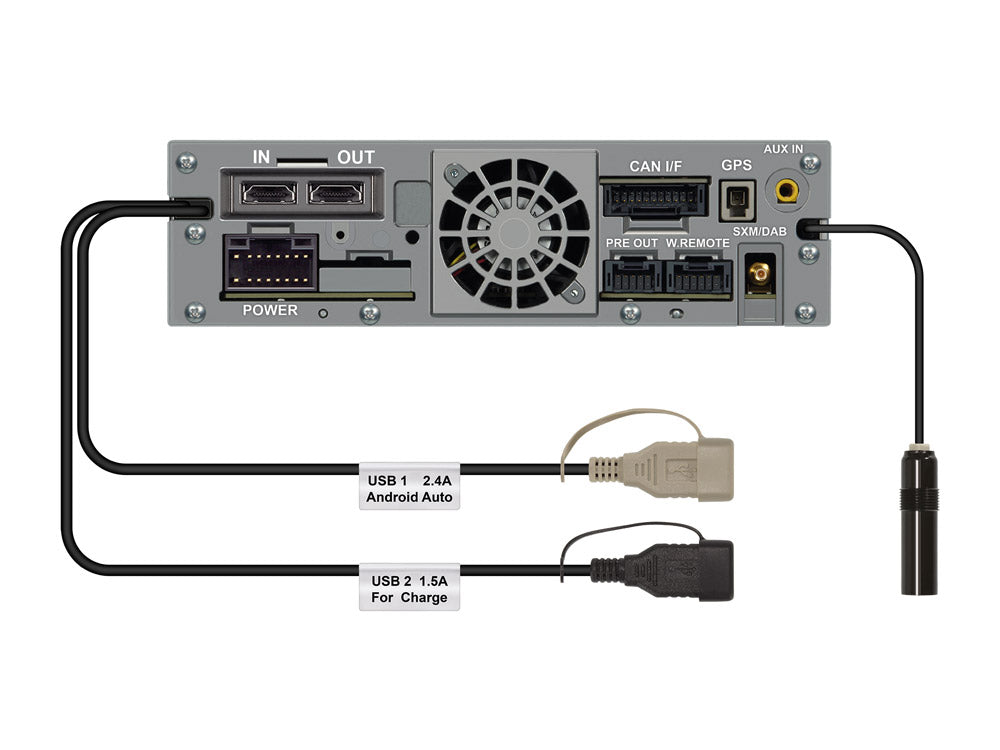

3 PreOuts (6 V, Front / Rear / Subwoofer)
1 A/V AUX input (3.5mm micro jack)
1 HDMI input / 1 HDMI output
2 USB ports (1x USB data port / 1x USB charging)
Steering wheel remote control ready
Vehicle display interface ready (UART connection)
Remote control ready
2x Camera Connection (Camera Direct Connection) Note: does not support KCX-C250MC camera switch box
Camera guidance (adjustable)
Live contrast adjustment
Menu language: 24 languages
Automatic dimmer
Anti-theft code
Not affected by engine start-stop

Screen:

Screen size: 9 inches, capacitive WXGA
Number of pixels: 2,764,800 pixels (1280 x 3 x 720)
Lighting system: White LED backlight
Effective pixel count: 99.99%
Color system: NTSC, PAL

Max Power Output Values:

Max Power Output: 4x 50 W

Radio / DAB Tuner:

FM range: 87.5 - 108.0 MHz
AM range: 531 - 1,602 kHz
DAB band III: 174 – 240 MHz
Alternative channel selection: 80 dB
Signal-to-noise ratio: 65 dB / 90 dB
DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB profile 1/BSAC/DMB profile 2/AAC

WiFi:

Receiving frequency: IEEE 802.11 B/g/n (2.4 GHz)
Channels: 1 – 13 ch (2.4 GHz)
Security protocol: WPA3/WPA2-PSK (TKIP, AES)

USB:

USB requirements: USB 2.0
USB 1: data port / 2400 mA (Mass Storage Class)
USB 2: charging port / 1500 mA (CDP support)
USB Class: Mass Storage Class, Play From Device
File system: FAT16 / FAT32 / exFAT
Decoding FLAC, MP3, WMA, AAC, WAV, APE
Video playback: MP4, MOV, FLV, MKV compatible
Supported video encoding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
Number of channels: 2-channel (Stereo)
Frequency response: 5 - 40 kHz ±1 dB *Frequency response may vary depending on encoding software/bitrate
Total Harmonic Distortion (at 1 kHz): 0.005%
Dynamic range (at 1 kHz): 95 dB
Signal-to-noise ratio: 95 dB

GPS:

GPS-compatible navigation antenna included
GPS frequency: 1575.42 +/- 1.023 MHz
Reception sensitivity (search): -136 dB max

BLUETOOTH®:

BLUETOOTH® Version: Bluetooth V4.2
Output power: +4 dBm Max. (Power class 2)
HFP (Hands-Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Headset Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)

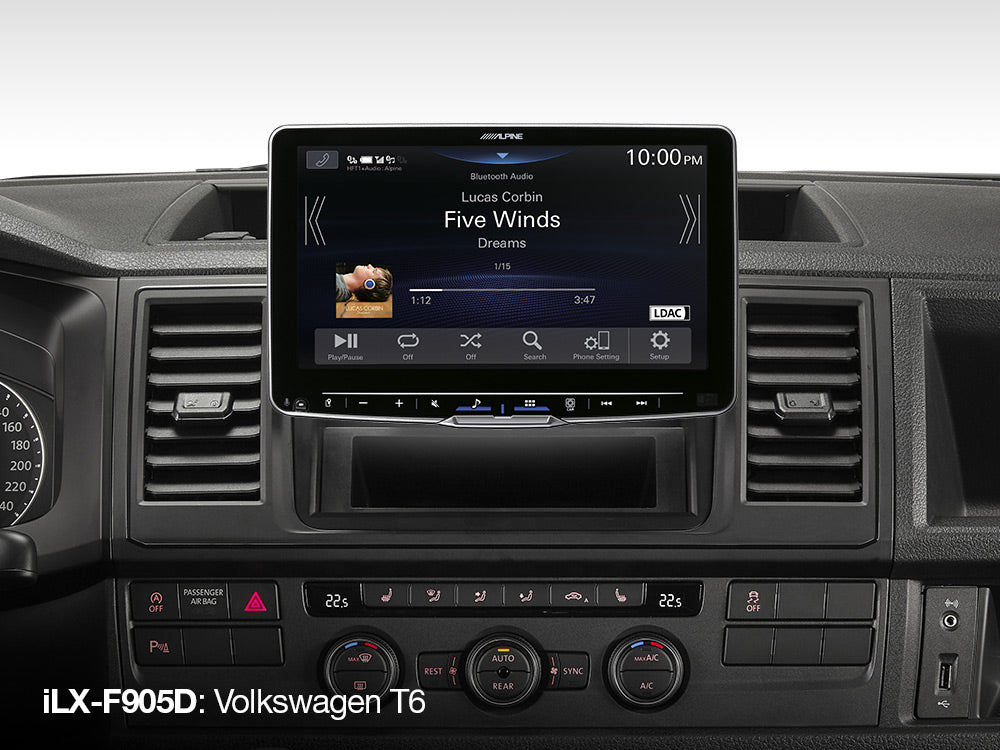

Supports LDAC Audio Codec

Sound adjustment:

Subwoofer level adjustment: 0 to +15
Subwoofer phase setting: 0° or 180°
BASS ENGINE SQ: 5 modes, Level 0 to +6
For detailed audio setting bands and frequencies, please see the owner's manual PDF below in the SUPPORT section.

HDMI section:

Input format: 720p/480p/VGA

Generally:

Power supply: 14.4 V. DC (allowable 11-16V)
Pre-output voltage level (before clipping): 6 V / 10 kohm
Weight: 2.3 kg
Chassis size (W x H x D) mm: 178 x 50 x 150 mm
Display size (W x H x D) mm: 232 x 151 x 55 mm
