Alpine iLX-705D

The Alpine iLX-705D is an advanced multimedia car stereo with a high-resolution touchscreen, designed to provide an enhanced and seamless in-car entertainment experience. With support for Apple CarPlay (wireless) and Android Auto (wired), as well as DAB+ radio and Bluetooth connectivity, this unit offers a complete solution for your in-car needs.

- Apple CarPlay and Android Auto: Seamless integration with your smartphone for easy access to apps, music, and maps.
- DAB+ Radio: Crystal clear digital sound with more channels to choose from.
- Bluetooth connection: Wireless streaming and hands-free calling.
- USB input: For easy playback of music and videos from USB devices.
- HDMI input: For connecting external video sources.
- Equalizer: 13-band parametric EQ and digital time correction for precise sound adjustment.
- Camera input: Support for rear view camera for increased safety when parking.

FEATURES:

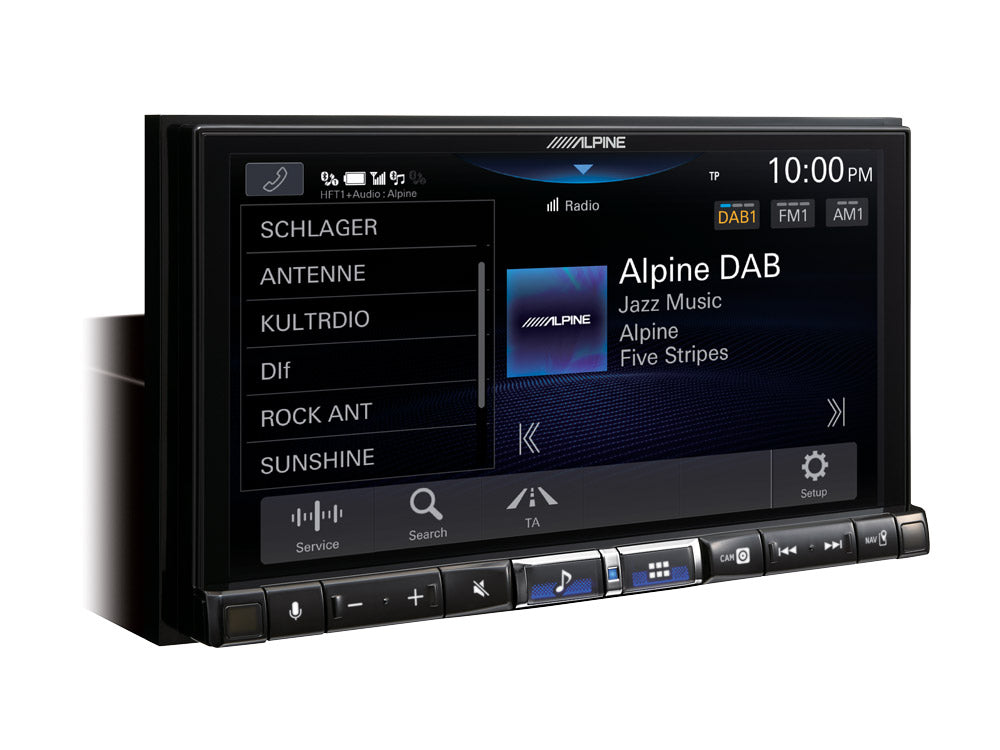

Radio / DAB tuner:

Preset stations: (FM: 3x12 / DAB: 3x12 / AM: 2x12)
Memory: Auto Memory
Search mode: Local, DX, Preset, Service
RDS functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB+/DMB support
DAB+ slideshow service
DLS (Dynamic Label Service)
RDS reset (where available)
Automatic ensemble/service memory
Search function for services
PTY search function
Alphabet search function

BLUETOOTH®

Built-in BLUETOOTH® V4.2 module
Compatible with HFP (Hands Free Profile)
Compatible with A2DP (Advanced Audio Distribution Profile)
Compatible with AVRCP (Audio / Video Remote Control Profile) Ver.1.5
Phonebook synchronization
Speed ​​dial: 4 preset memory (per phone)
Call history display: Outgoing calls / Incoming calls / Missed calls
Redial function
Speech volume level adjustment: (outgoing and incoming)
24 Menu language
Microphone included
Works with iPhone®

Compatible with iPhones with a Lightning or USB-C connector
Various search functions and album cover display
Battery charging

Connection:

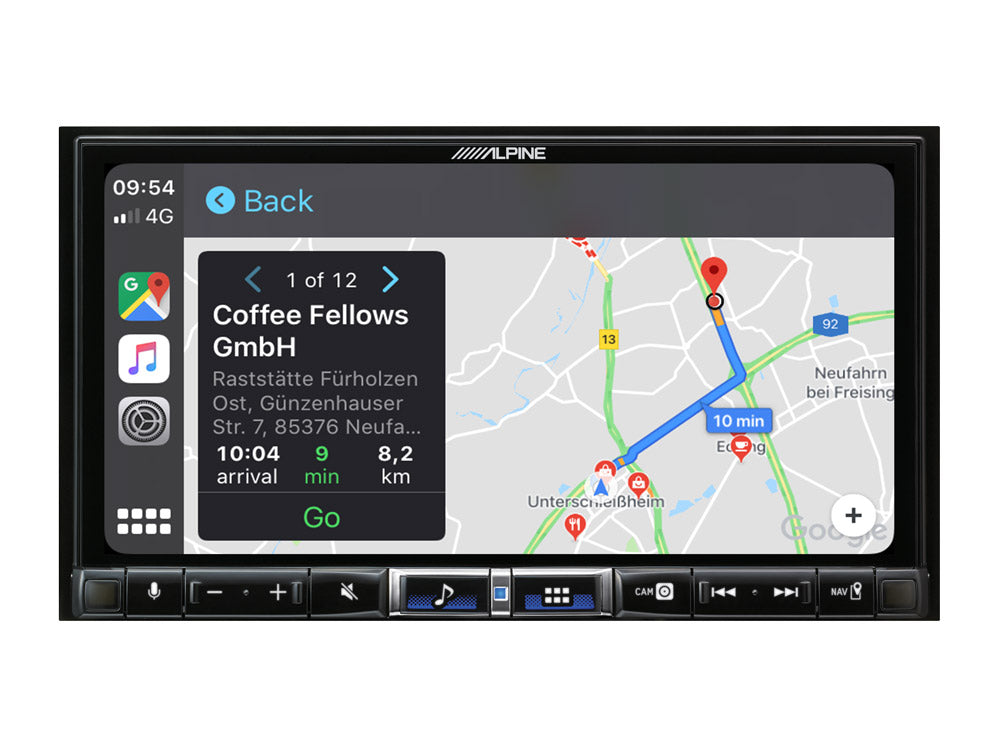

Works wirelessly with Apple CarPlay (requires iPhone with CarPlay support)

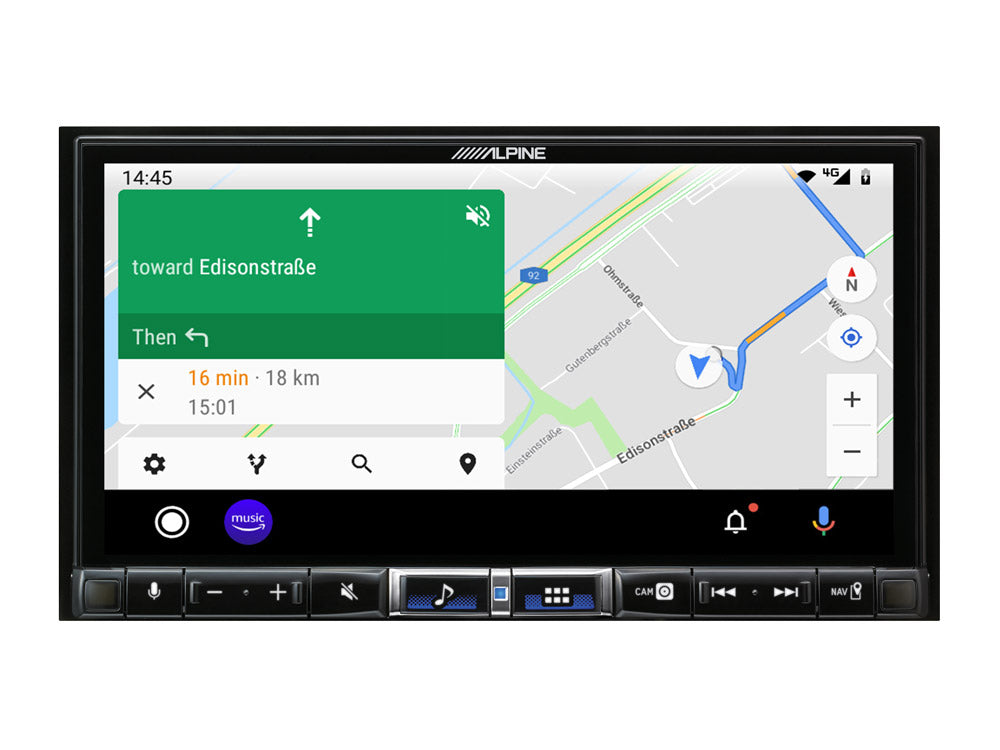

Works with Android Auto (requires Android Auto-enabled smartphone, wired connection)
Dash-Cam Link for DVR-C320S to enable playback and control of your dashcam

Navigation Function:

Online navigation function with navigation apps compatible with Apple CarPlay and Android Auto
Includes GPS-enabled navigation antenna.

USB media connection:

2x USB cable included
USB port 1: data port / USB port 2: charging port
Music playback: Compatible with FLAC, MP3, WMA, AAC, WAV, APE
Video playback: Compatible with MP4, MOV, FLV, MKV
Supported video encoding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
Various search functions are included.

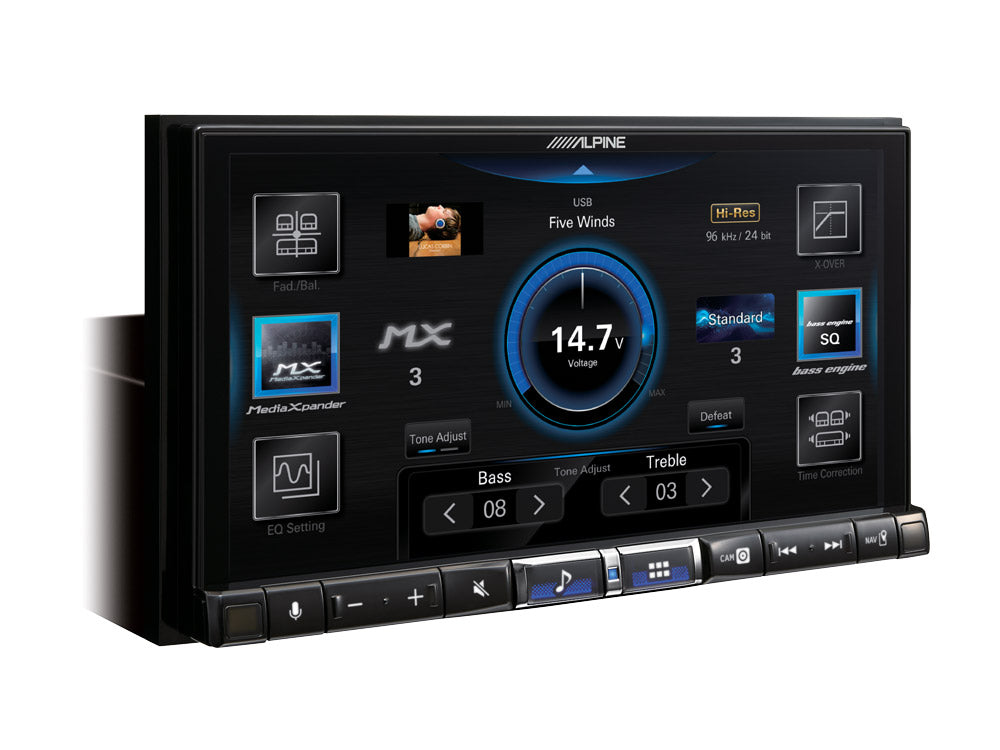

Sound setting:

Bass Engine SQ and Bass Engine PRO sound tuning
Subwoofer level adjustment
6V PreOut
10 Equalizer presets
13-channel parametric EQ x4 audio channels + 4-channel for subwoofer
6-channel digital time correction
2-way digital crossover filter
Independent source volume level setting

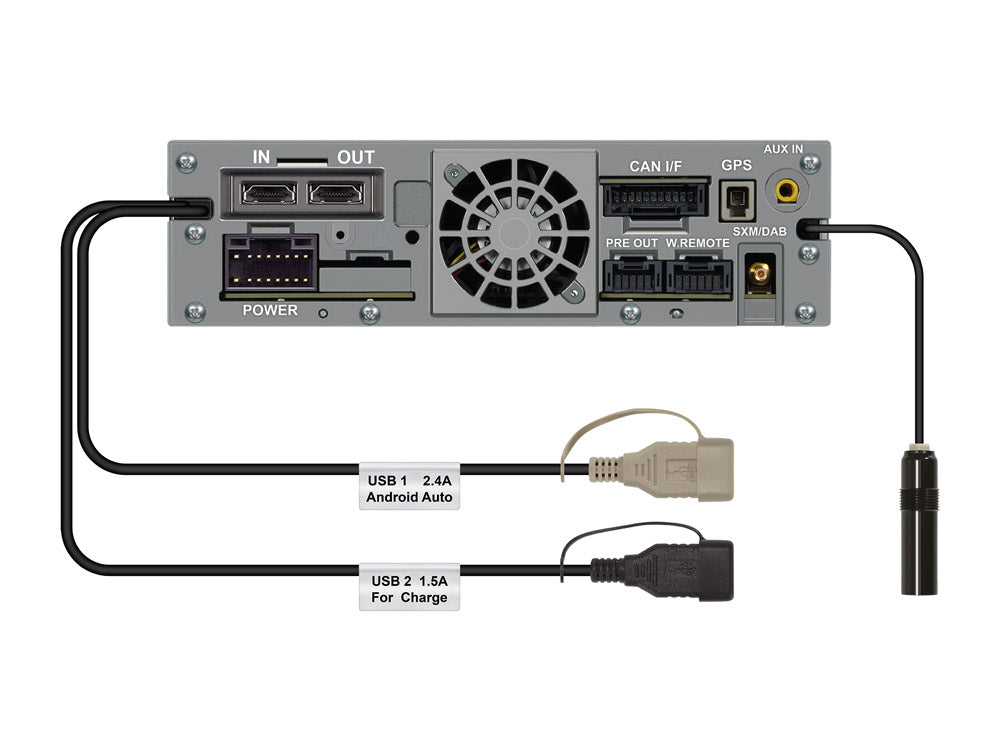

Generally:

4x 50 watt high-power Class-D amplifiers
7-inch WXGA capacitive touchscreen (1280 x 720p)
3 low-level outputs (6 V, front/rear/subwoofer)
1 A/V AUX input (3.5mm micro jack)
1 HDMI input / 1 HDMI output
2 USB ports (1x USB data port / 1x USB charging)
Prepared for remote control on the steering wheel
Prepared for vehicle display interface (UART connection)
Prepared for remote control
2x camera connections (Camera Direct connector) Note: does not support KCX-C250MC camera switch.
Camera distance lines (adjustable)
Contrast adjustment
Menu Language: 24 languages
Automatic dimmer
Security code for anti-theft protection

Screen:

Screen size: 7-inch capacitive WXGA
Number of picture elements: 2,764,800 pixels (1280 x 3 x 720)
Lighting system: White LED backlight
Effective pixel count: 99.99%
Color system: NTSC/PAL

Radio / DAB tuner:

FM tuning range: 87.5 - 108.0 MHz
AM tuning range: 531 - 1.602 kHz
DAB Band III: 174 – 240 MHz
Alternative channel selectivity: 80 dB
Signal-to-noise ratio: 65 dB / 90 dB
DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC

Wi-Fi:

Receiving frequency: IEEE 802.11 B/g/n (2.4 GHz)
Channels: 1 – 13 channels (2.4 GHz)
Security protocol: WPA3/WPA2-PSK (TKIP, AES)
USB

USB requirements: USB 2.0
USB 1: data port/2400mA (mass storage class)
USB 2: charging port / 1500 mA (CDP support)
USB Class: Mass Storage Class, play from device
File system: FAT16 / FAT32 / exFAT
FLAC, MP3, WMA, AAC, WAV, APA Decoding
Video playback: Compatible with MP4, MOV, FLV, MKV
Supported video encoding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
Number of channels: 2-channel (stereo)
Frequency range: 5 - 40 kHz ±1 dB *Frequency range may vary depending on encoder software/bitrate

Total Harmonic Distortion (at 1 kHz): 0.005%
Dynamic Range (at 1 kHz): 95 dB
Signal-to-noise ratio: 95 dB

GPS:

GPS-compatible navigation antenna included
GPS frequency: 1575.42 +/- 1.023 MHz
Reception sensitivity (search): - 136 dB max

HDMI:
Input format 720p / 480p / VGA

Generally:

Power requirement: 14.4 V. DC (11-16V allowed)
Output voltage (before clipping): 6 V / 10k ohms

Dimensions and weight:
Weight: 1.4 kg
Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
Screen size (W x H x D) mm: 171 x 96 x 18 mm
