Alpine ILX-702D

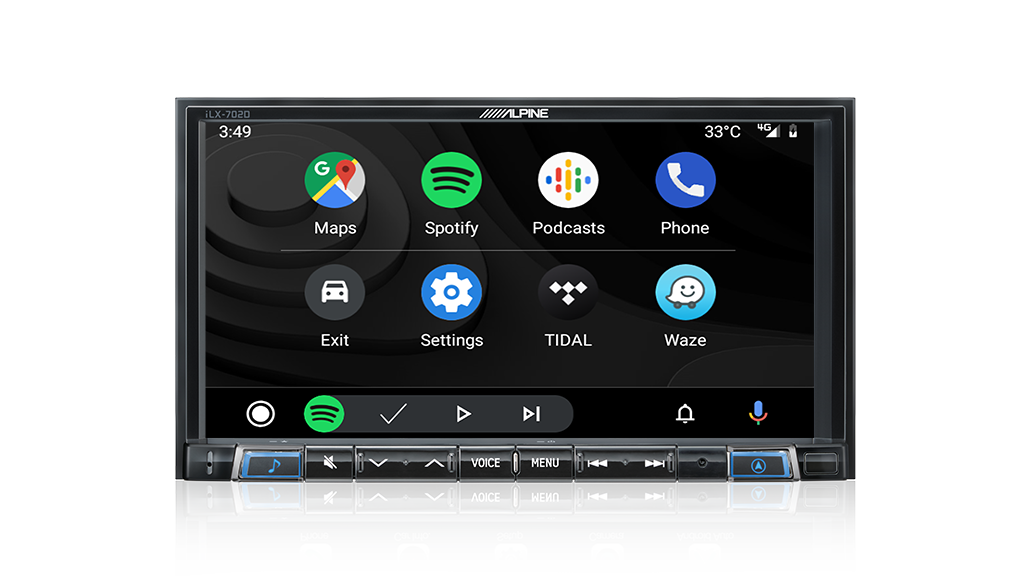

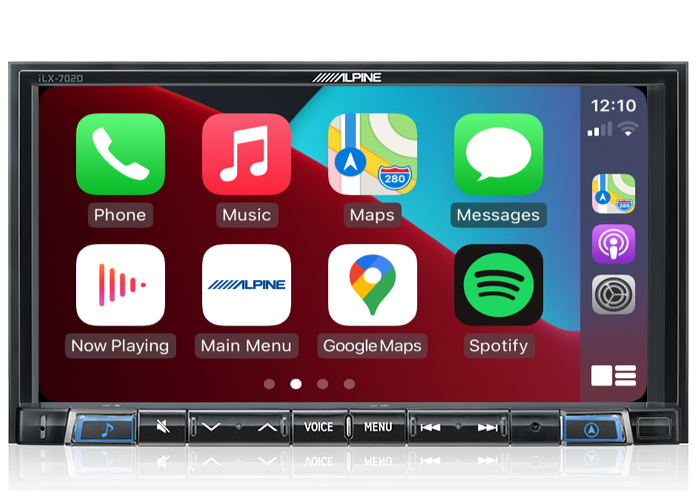

Innovation continues with the iLX-702D, Apple CarPlay and Android Auto, giving you the safety and convenience of phone connectivity in your vehicle. Apple CarPlay and Android Auto offer a wealth of smartphone options via the 7-inch touchscreen, allowing you to get directions, make calls, send and receive messages and listen to music in a way that allows you to maintain full focus on the road. Simply connect your smartphone and drive.

When using Apple CarPlay and Android Auto, you can control parts of your smartphone via the 7-inch capacitive screen or activate Siri and voice recognition for minimized distraction.

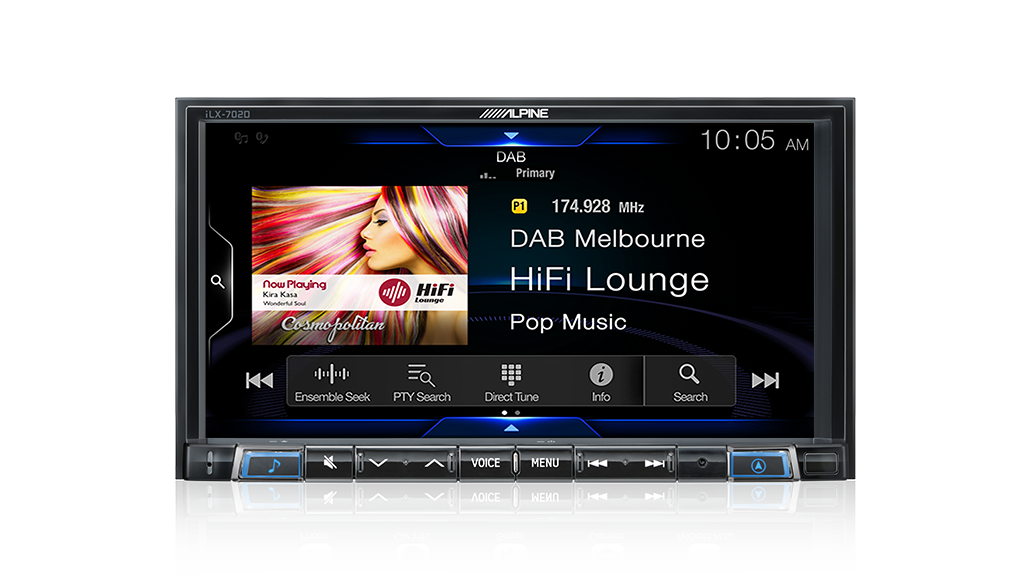

Enjoy all your favorite music with an unlimited number of options such as Spotify, Tidal, Qobuz, iHeart Radio, TuneIn, podcasts and even DAB+ digital radio which provides a wide range of digital radio stations.

A wide range of entertainment options are enabled by the iLX-702D with HDMI and USB connectivity enabling high-quality video and audio playback. In addition, DVDs and CDs can be played in high definition using the optional DVE-5300 optical drive.

For a detailed list of apps that have been approved by Apple for CarPlay, go to their website here: http://www.apple.com/au/ios/carplay/

*Spotify can be used via Android Auto, Apple CarPlay and Alpine Connect for Android.

Screen:
Screen size: 7-inch capacitive WVGA
LCD type: Transparent type TN LCD
Operating system: TFT Active Matrix
Number of picture elements: 1,152,000 pixels (800 x 3 x 480)
Lighting system: White LED backlight
Effective pixel count: 99.99%
Color system: NTSC, PAL

Maximum output power: 4x50 W

FM receiver:
Tuning range: 87.5 - 108.0 MHz
Alternative channel selectivity: 80 dB
Signal-to-noise ratio: 65 dB
Stereo separation: 35 dB

MW(AM) tuner:
Tuning range: 531 – 1.602 kHz
Usable sensitivity (IEC standard): 25.1 μV / 28 dBf
LW tuner
Setting range: 153 – 281 kHz
Usable sensitivity (IEC standard): 31.6 μV / 30 dBf

USB:
USB requirements: USB 2.0
Max. Current consumption: 1500 mA (CDP support)
USB Class: Mass Storage Class, play from device
File system: FAT 16/32
MP3 decoding: MPEG-1/2 AUDIO Layer-3
WMA decoding: Windows Media Audio™
AAC decoding: ACC-LC format ′′.m4a′′ file
FLAC decoding
Number of channels: 2-channel (stereo)
Frequency range: 5 – 20k Hz ±1 dB
Total Harmonic Distortion (at 1 kHz): 0.008%
Dynamic Range (at 1 kHz): 95 dB
Signal-to-noise ratio: 100 dB
Channel separation (at 1 kHz): 85 dB

GPS/Glonass:
GPS/Glonass compatible navigation antenna included

BLUETOOTH®:
BLUETOOTH version®: Bluetooth V2.1+EDR
Output power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands-Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Headset Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)

Adjusting sound:
Subwoofer level adjustment: 0 to +15
Subwoofer phase adjustment: 0° or 180°

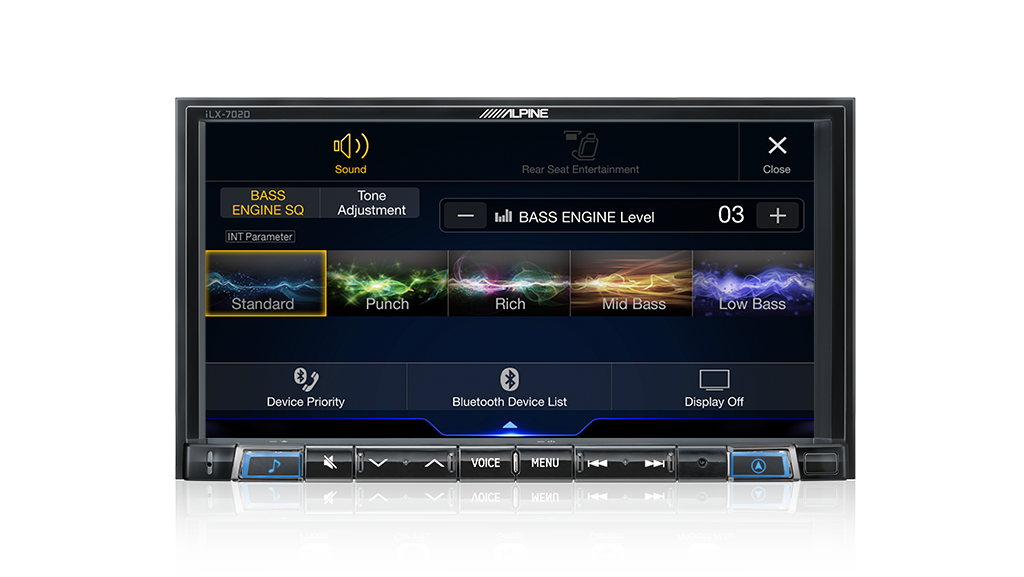

BASS ENGINE SQ: 5 modes, level 0 to +6
High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/Oct.
HighPassFilter (gain): -12 to 0 dB
Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
LowPassFilter (steepness): Off / -6 / -12 / -18 / -24 dB/oct.
LowPassFilter (gain): -12 to 0 dB
Time correction: 0.0 – 9.9 ms (step 0.1 ms)
Dual HD EQ front + rear
Parametric equalizer (band 1): 20 – 100 Hz
Parametric equalizer (band 2): 63 – 315 Hz
Parametric equalizer (band 3): 125 – 500 Hz
Parametric equalizer (band 4): 250 – 1k Hz
Parametric equalizer (band 5): 500 – 2k Hz
Parametric equalizer (band 6): 1k – 4k Hz
Parametric equalizer (band 7): 2k – 7.2k Hz
Parametric equalizer (band 8): 5.8k – 12k Hz
Parametric equalizer (band 9): 9k – 20k Hz
Parametric equalizer (gain): -14 to +14
Application volume level setting: -14 to +14

HDMI input:
Input format 720p/480p/VGA
Output format 480p

Generally:
Power requirements: 14.4 V. DC (11-16V allowed)
Low level output MAX: 2 V / 10k ohms

Measure:
Chassis size (W x H x D) mm: 178 x 100 x 147 mm
