Alpine HDZ-65C

Superior audio performance!
Alpine introduces the all-new Alpine Status audio system, using the same technology and design concepts derived from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created the "Alpine Status" to achieve High-Resolution Sound at a more accessible price. The Alpine Status system is also extremely flexible: all components can be purchased and used in a "standalone" configuration.

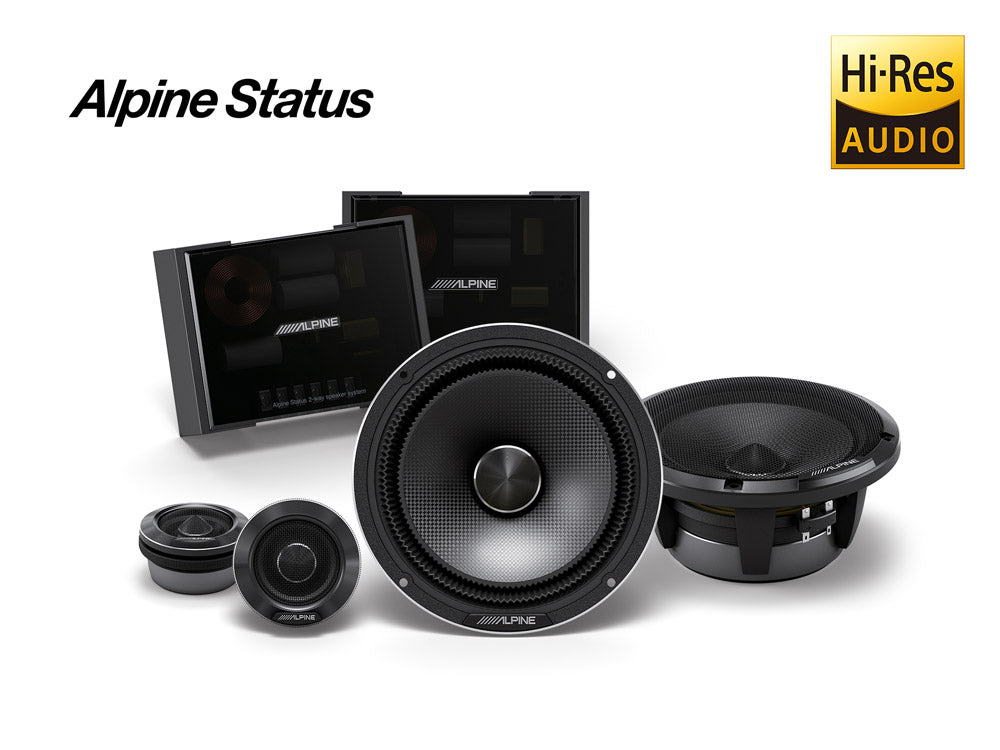

For the audiophile looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The HDZ-65C 2-way component speaker set with a high-resolution bandwidth of 55Hz – 40kHz includes a 170mm door woofer and a 70mm ring radiator tweeter with 25mm voice coil. They also include advanced crossover filters.

All speaker cones are made from the same Carbon Composite material to create a consistent sonic identity during playback. They closely match the look and feel of the AlpineF#1Status speakers, using a very similar design and motor mount, as well as identical construction materials for the highest sound quality.

Studio recording specifications.
Alpine Status achieves 192kHz/24-bit playback, which is 6.5 times the amount of digital audio data in a typical CD or digital streaming service, and surpasses the standard 96kHz/24Bit high-resolution specification found in most aftermarket audio solutions. This allows Alpine Status to capture and accurately reproduce details such as the artist's breathing or a musician's subtle interaction with an instrument. This capability not only reproduces music as the artist originally intended, but also emulates the experience of a studio recording in the vehicle.

Features:
Hi-Res Audio certified 2-Way speaker system.
AlpineF#1Status speaker trickle-down technology.
Maximum Peak Power: 300 Watts.
Maximum RMS Power: 100 Watts.

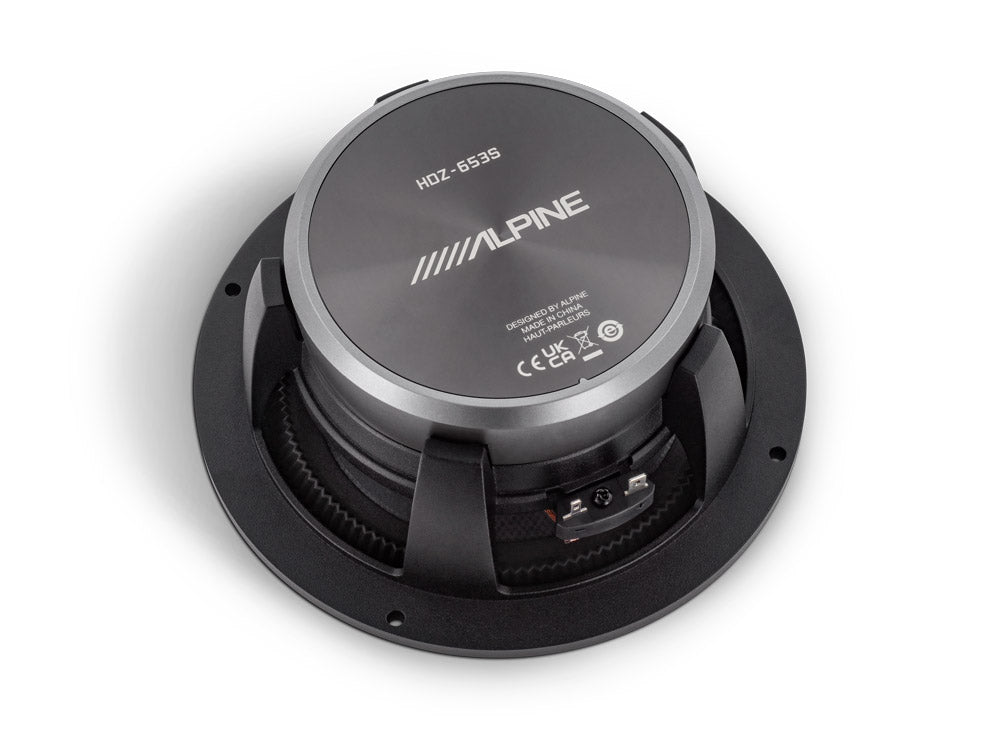

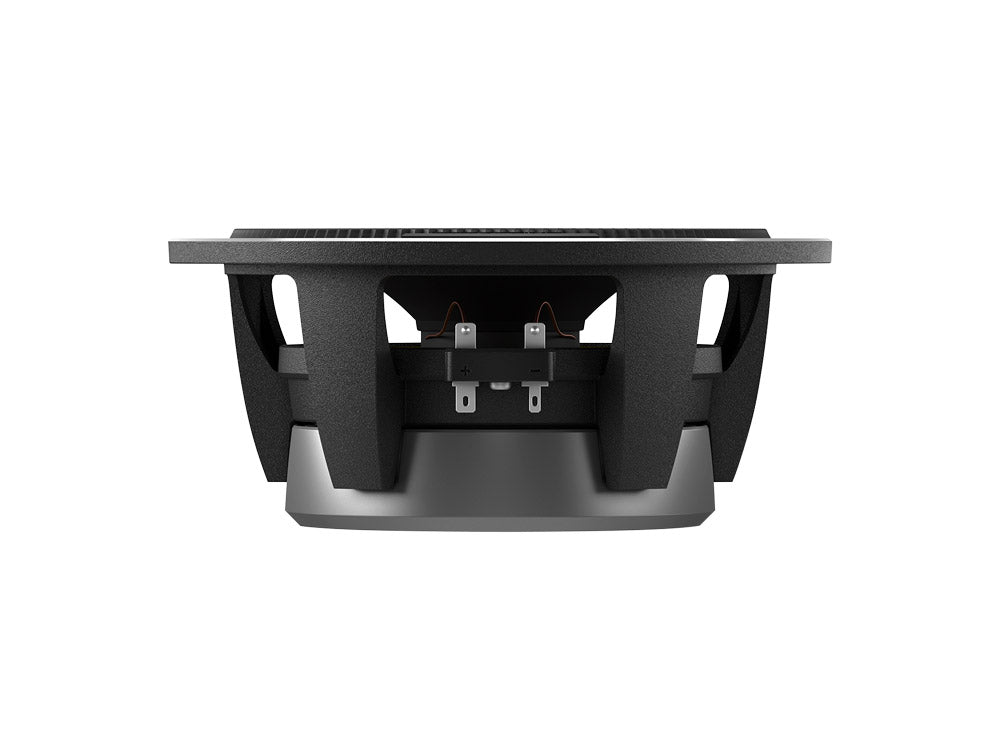

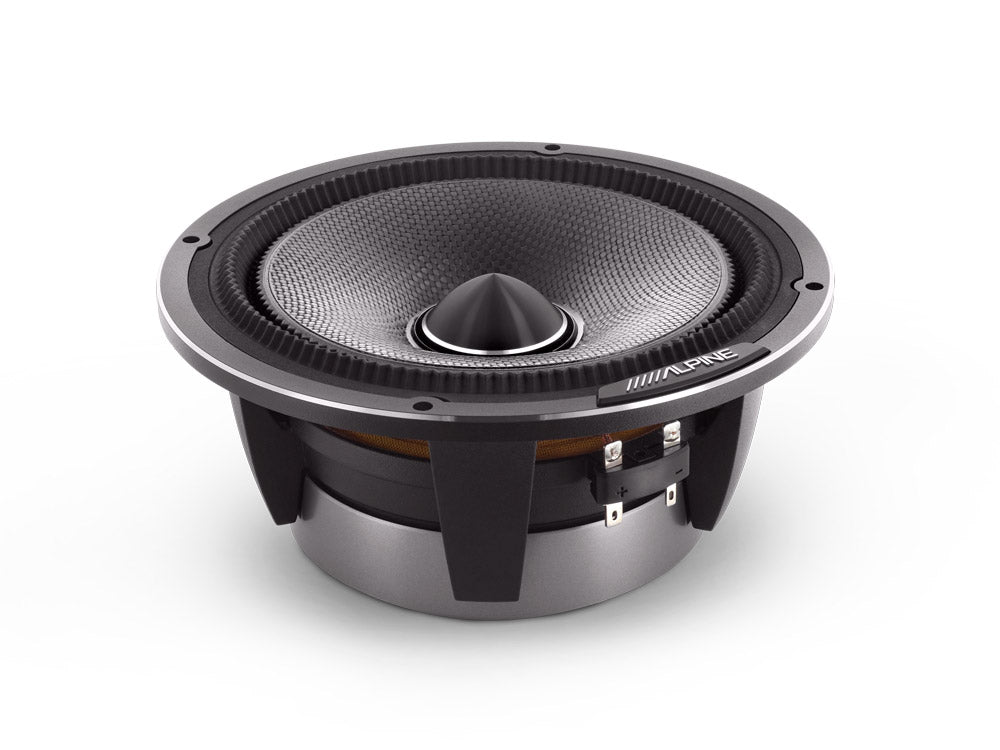

Woofer diameter: 170mm (177mm with attached grill).

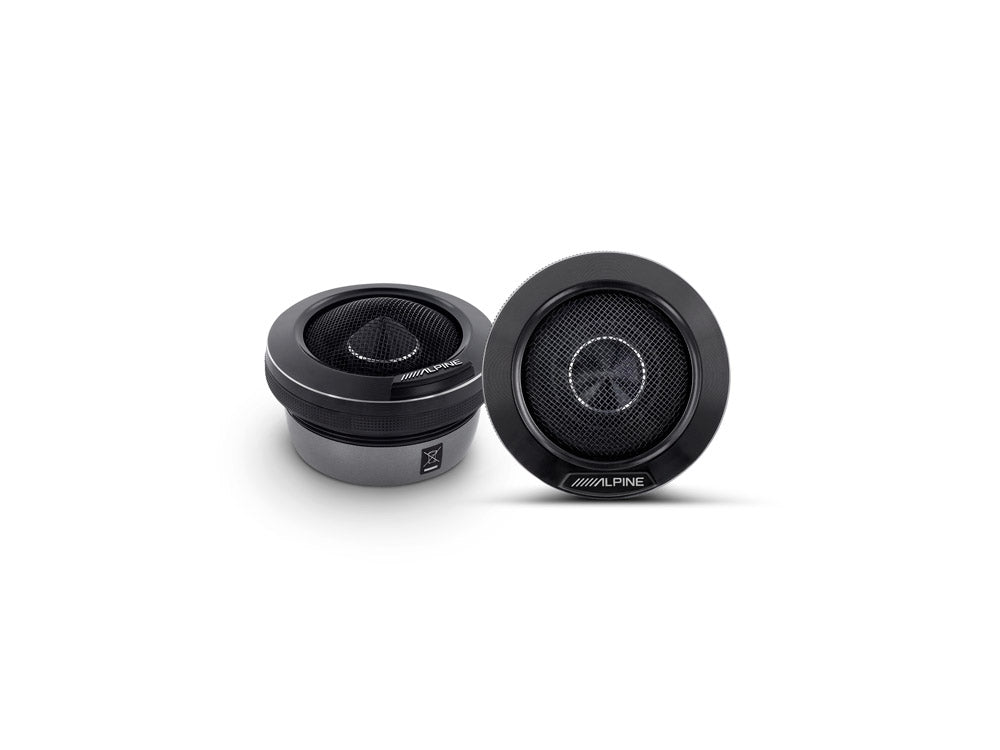

Tweeter diameter: 70mm (25mm voice coil).
Aluminum die-cast baskets.
Ring-radiator tweeters.
Backed carbon fiber cones.
Double-gathered edge.

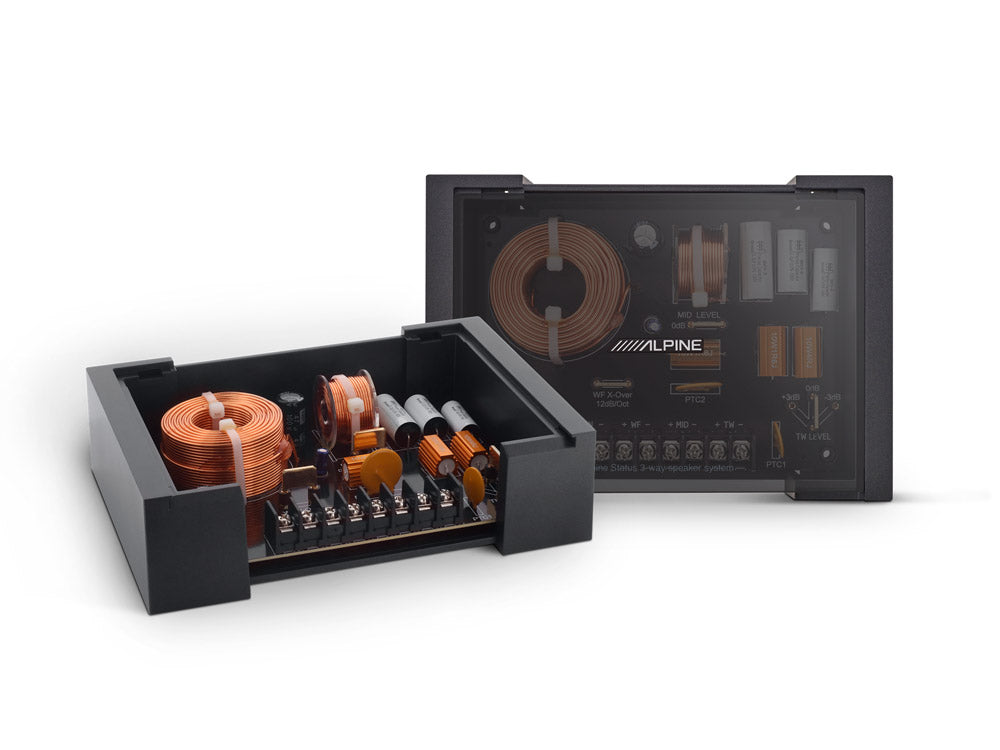

High-end X-Over networks.
Speaker grills included.
Integrated Wave Guide on all speakers.

Specifications:
Impedance 4Ω.
Sensitivity 88dB SPL (2.83 V @ 1 m).
Frequency Response: 55Hz – 40kHz.
Mounting depth: woofer 67mm.
Cutout diameter: woofer 142mm.
Recommended amplification: up to 100W RMS per channel.
Ferrite magnet (woofer).
Neodymium magnet (mid-range speaker and tweeter).

Thiele & Small Parameters Door Woofer:
Re: 3.58 Ohm
fs: 62 Hz
Weight: 18.341 g
Rms: 1.436 kg/s
Cms: 0.359 mm/N
BI: 6.407 N/A
Qms: 4,979
Qes: 0.624
Qts: 0.554
Vase: 8.9526 l
Sd: 132.73 cm2
