Alpine HDZ-653

Alpine introduces the all-new Alpine Status audio system: using the same technology and design concepts derived from the third generation Ultra High-Resolution AlpineF#1Status system, Alpine has created "Alpine Status" to bring high-resolution audio to a more accessible and affordable price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in a "stand-alone" configuration.

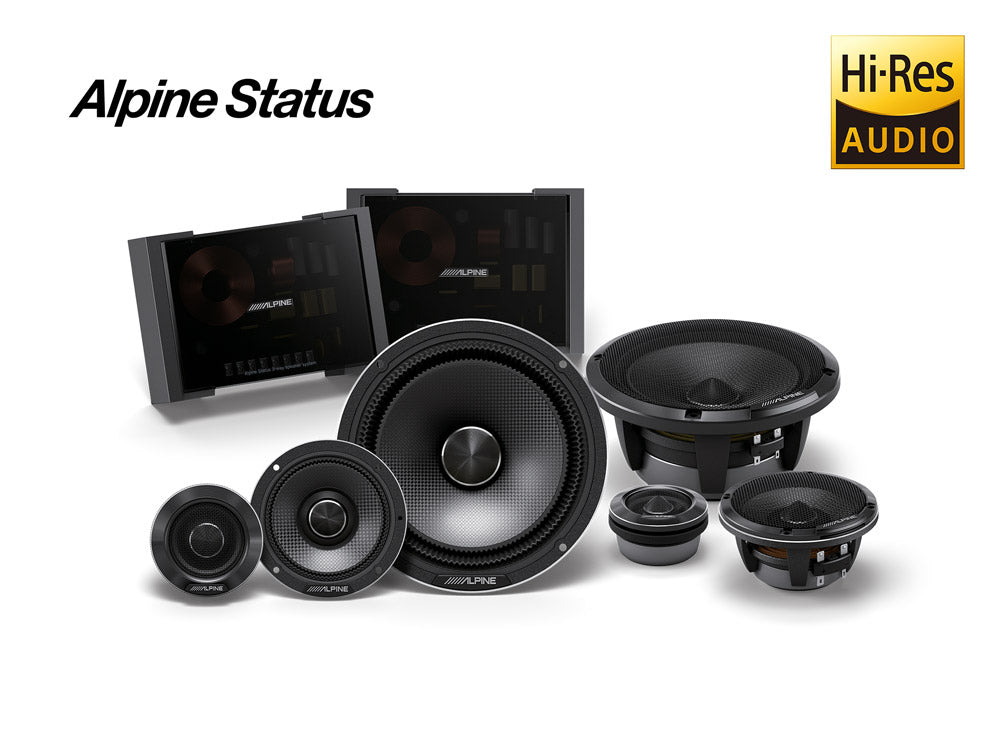

For the audiophile looking to build the ideal sound system, Alpine Status offers a wide range of Hi-Res Audio compatible speakers. The HDZ-653 3-way speaker set with a high-resolution bandwidth of 55Hz – 40kHz includes a 170mm door woofer, a 96mm midrange and a 70mm ring radiator tweeter with a 25mm voice coil. They also include high-quality speaker crossovers.

All speaker cones are made from the same carbon fiber composite material to create a consistent sonic identity during playback. They closely approximate the look and feel of the AlpineF#1Status speakers, with a very similar design and motor layout, as well as identical construction materials for the highest sound quality.

Hi-Res Audio certified 3-way speaker system
AlpineF#1Status speaker technology
Maximum peak power: 300 Watts
Maximum RMS power: 100 Watts

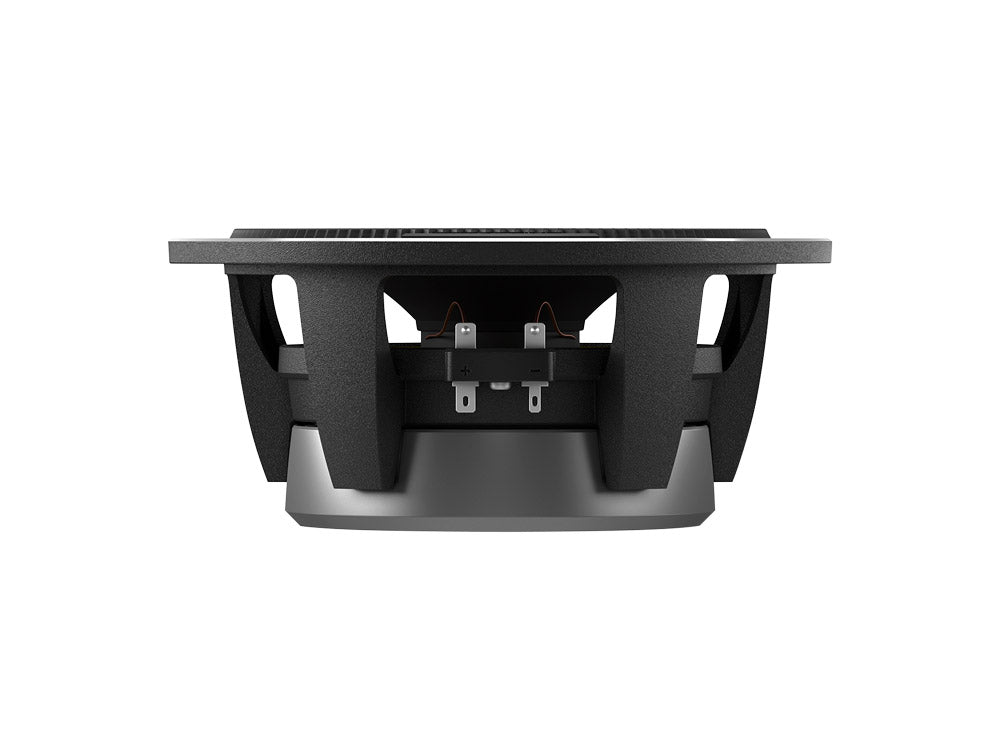

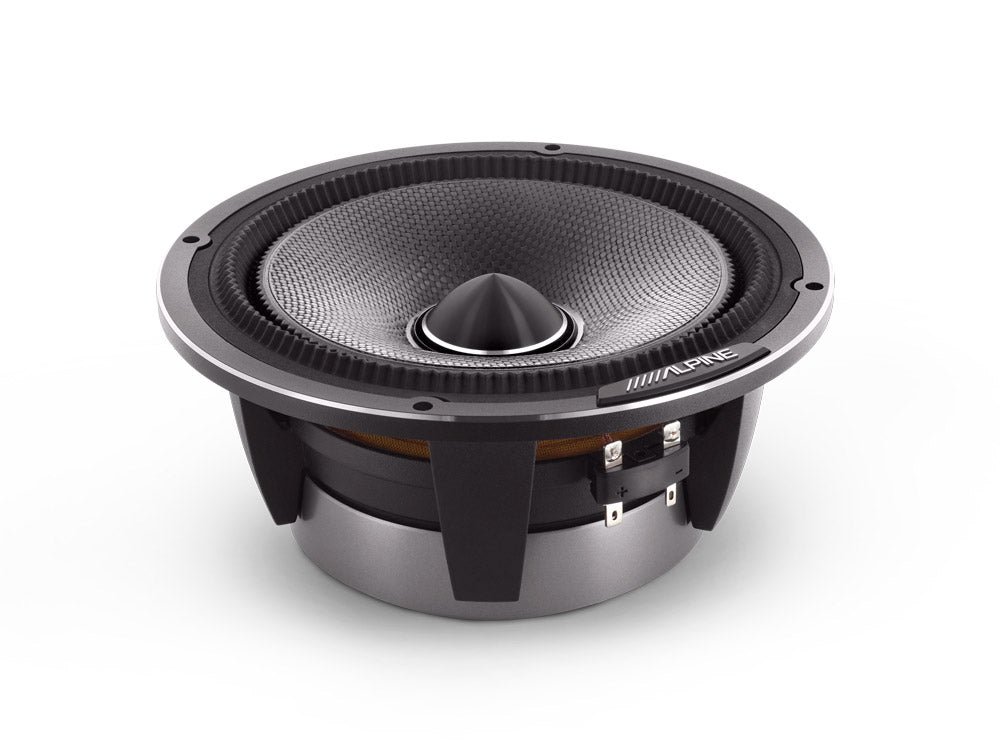

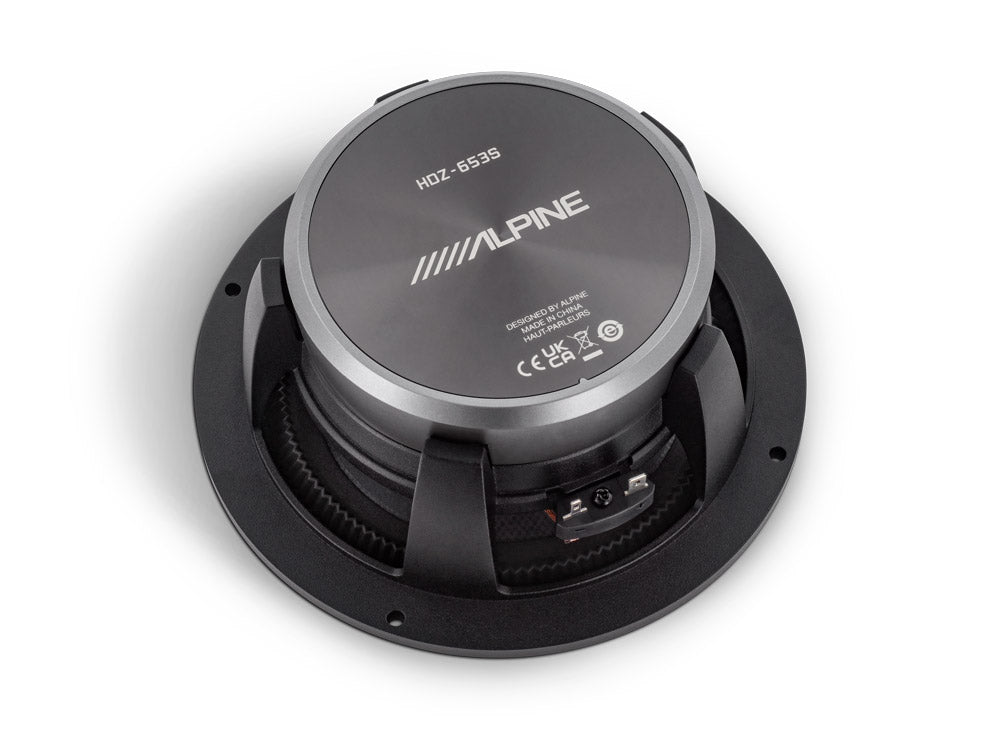

Woofer diameter: 170mm (177mm with grille fitted)

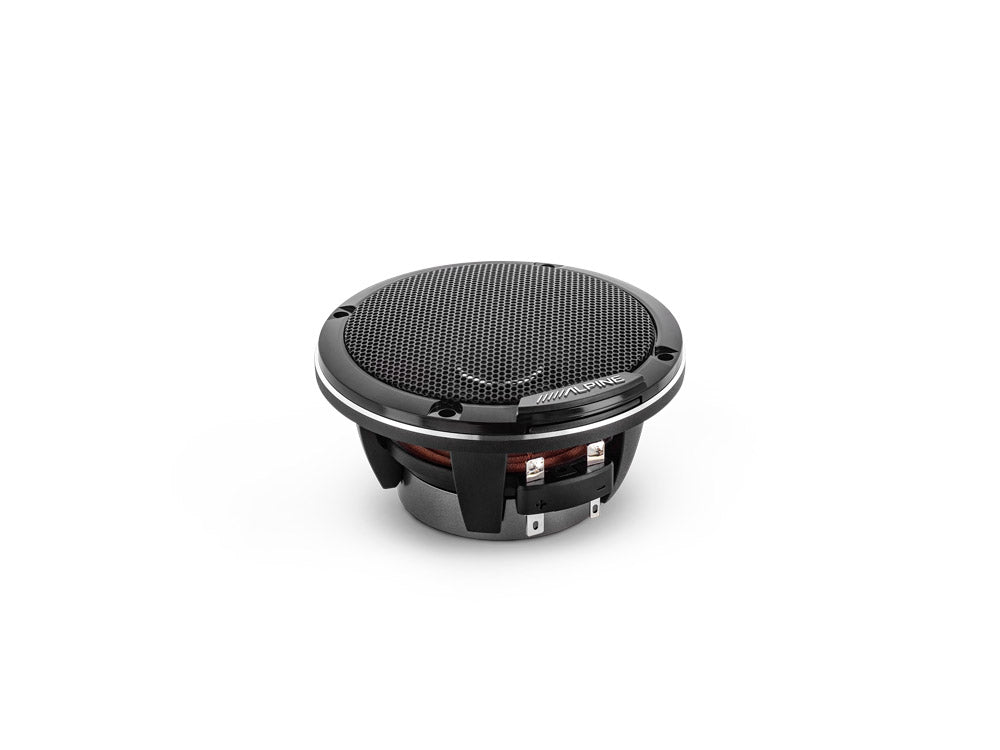

Midrange diameter: 96mm

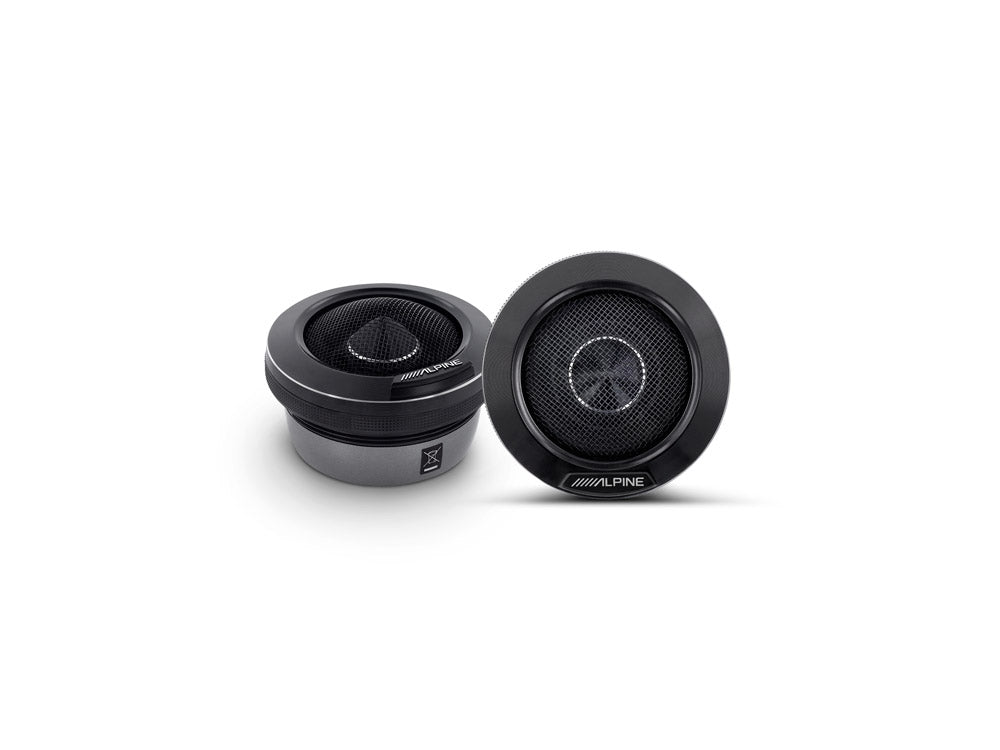

Treble diameter: 70mm (25mm voice coil)
Aluminum cast baskets
Ring radiator tweeters
Baked carbon fiber cones
Double edge

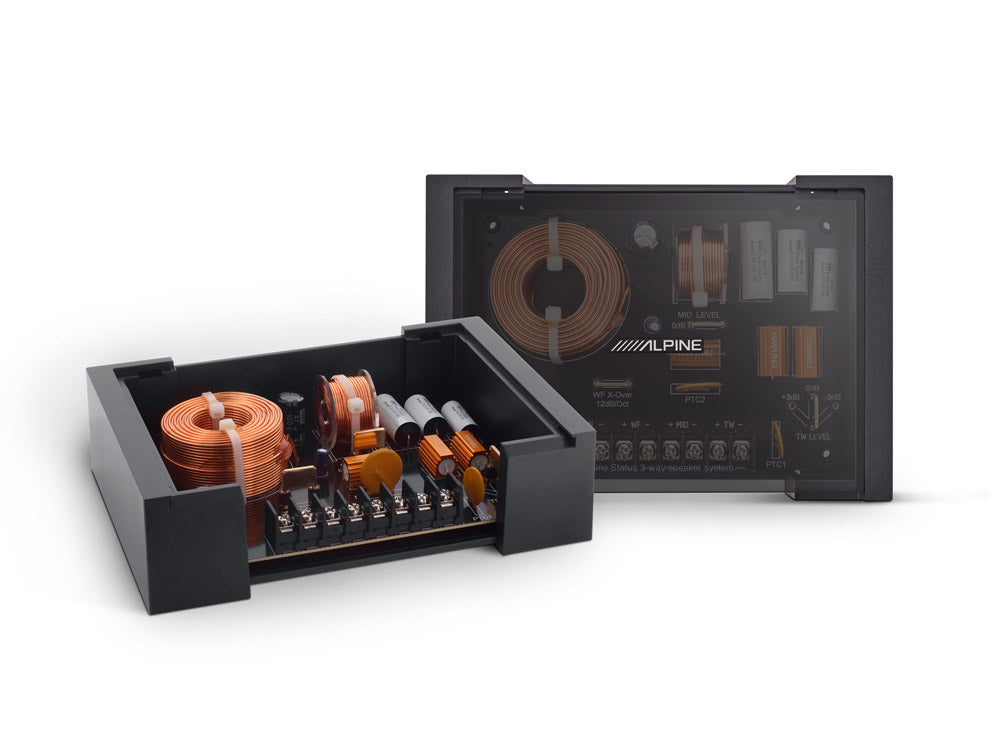

High-end X-Over network
Included speaker grilles
Integrated waveguide on all speakers

Impedance: 4Ω
Sensitivity: 88dB SPL (2.83 V @ 1 m)
Frequency response: 55Hz – 40kHz
Mounting depth: woofer 67mm / midrange 39mm
Cutout diameter: woofer 142mm / midrange 79mm
Recommended amplification: up to 100W RMS per channel
Ferrite magnet (woofer)
Neodymium magnet (midrange and tweeter)
