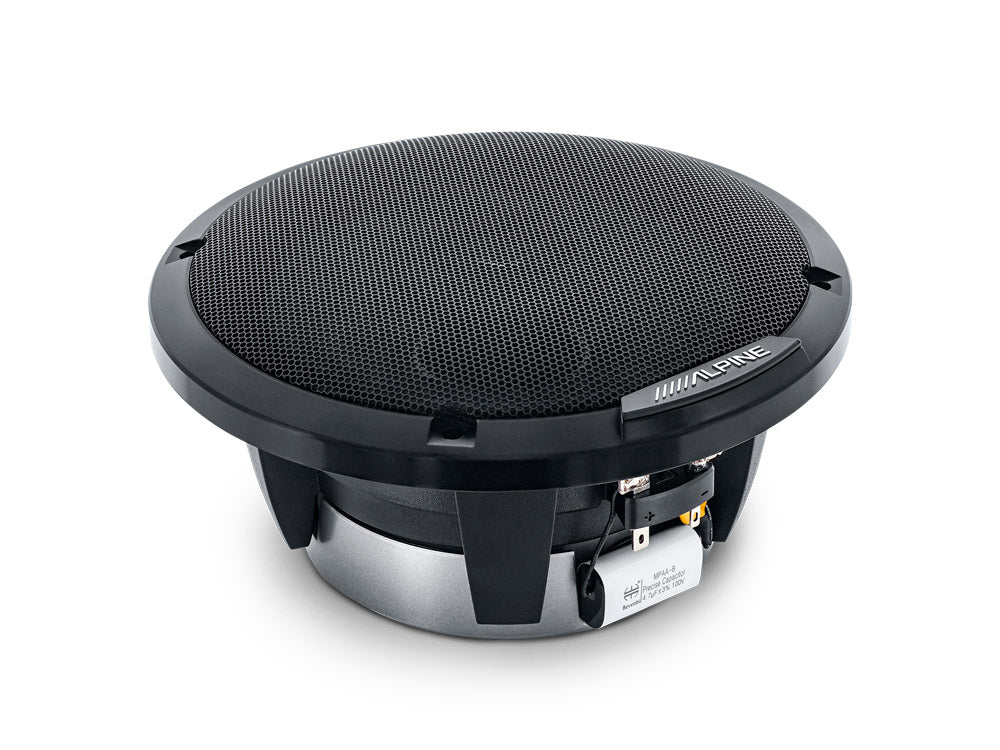

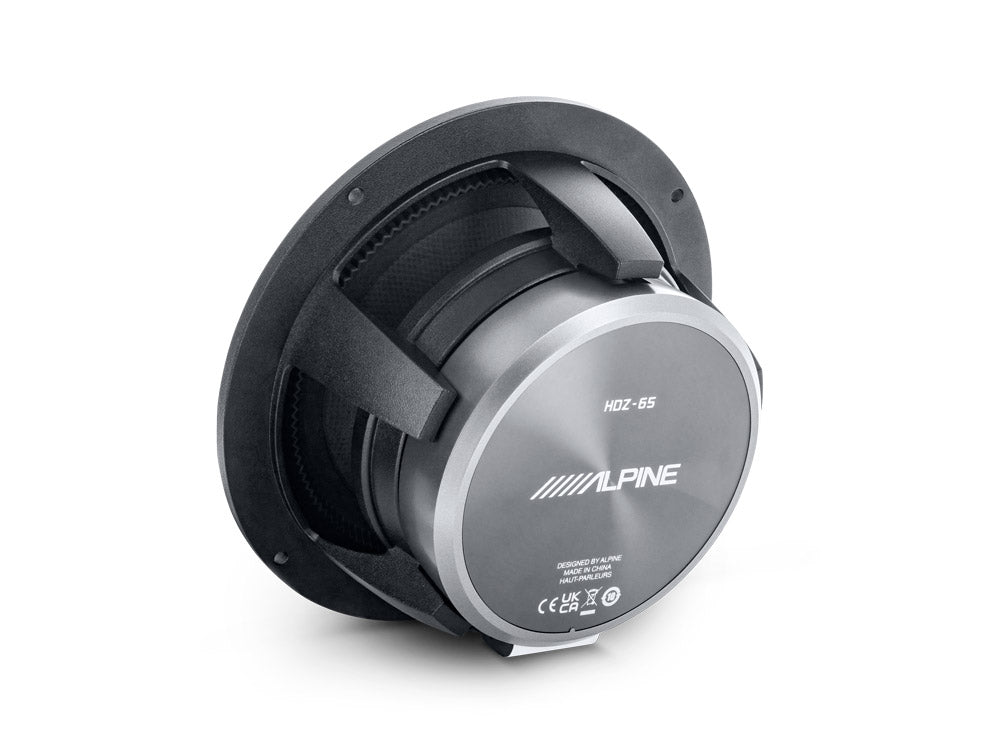

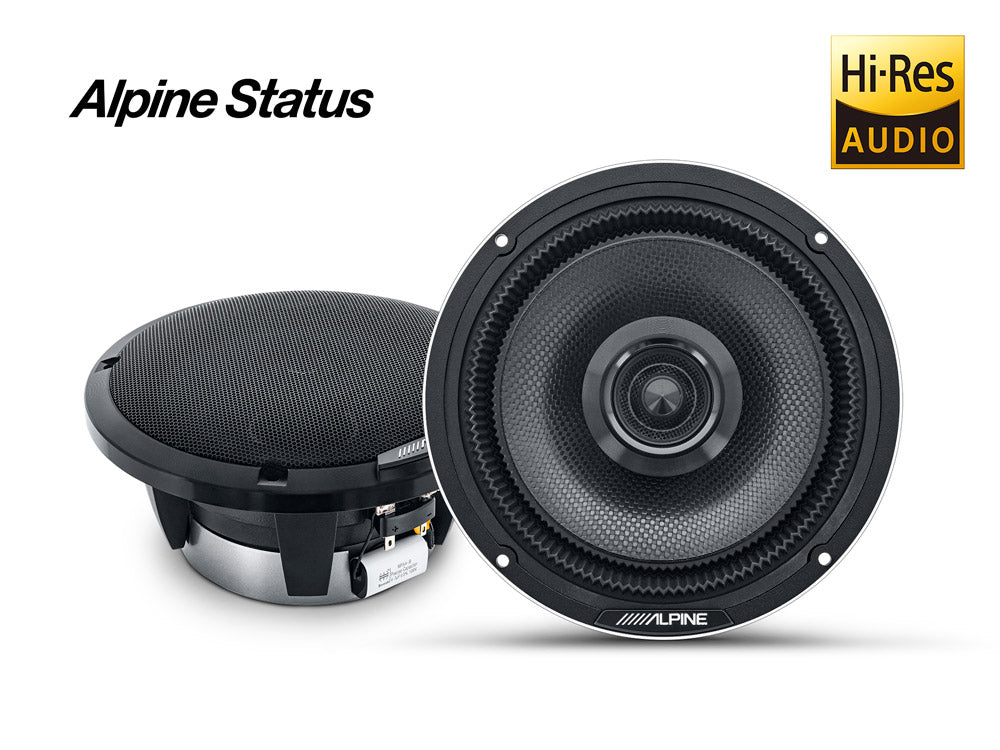

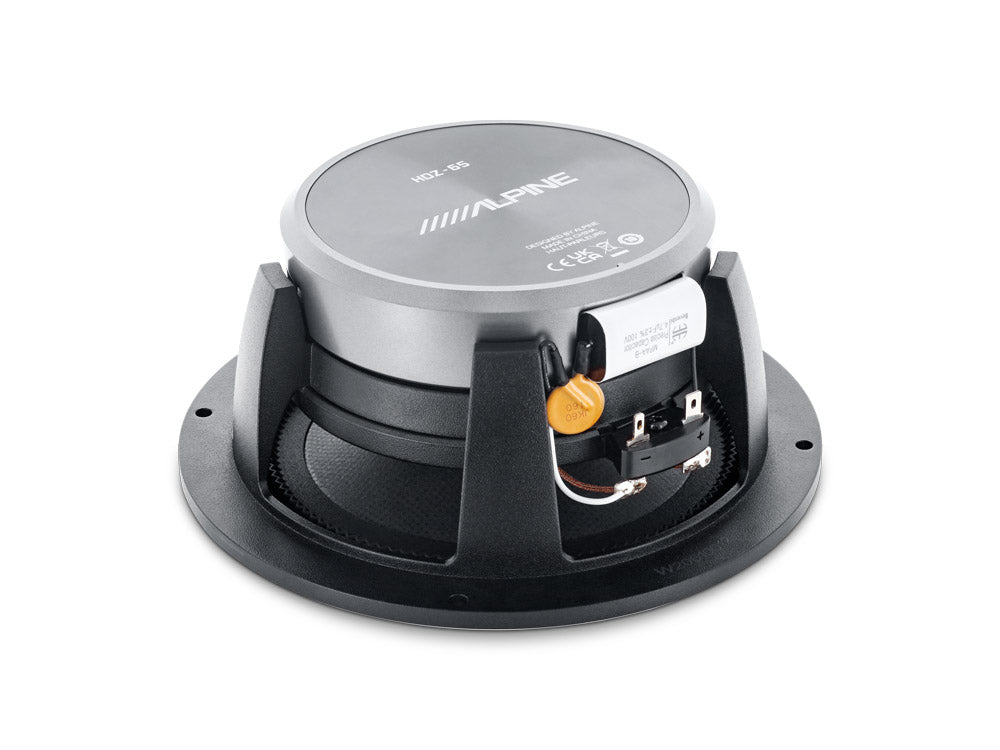

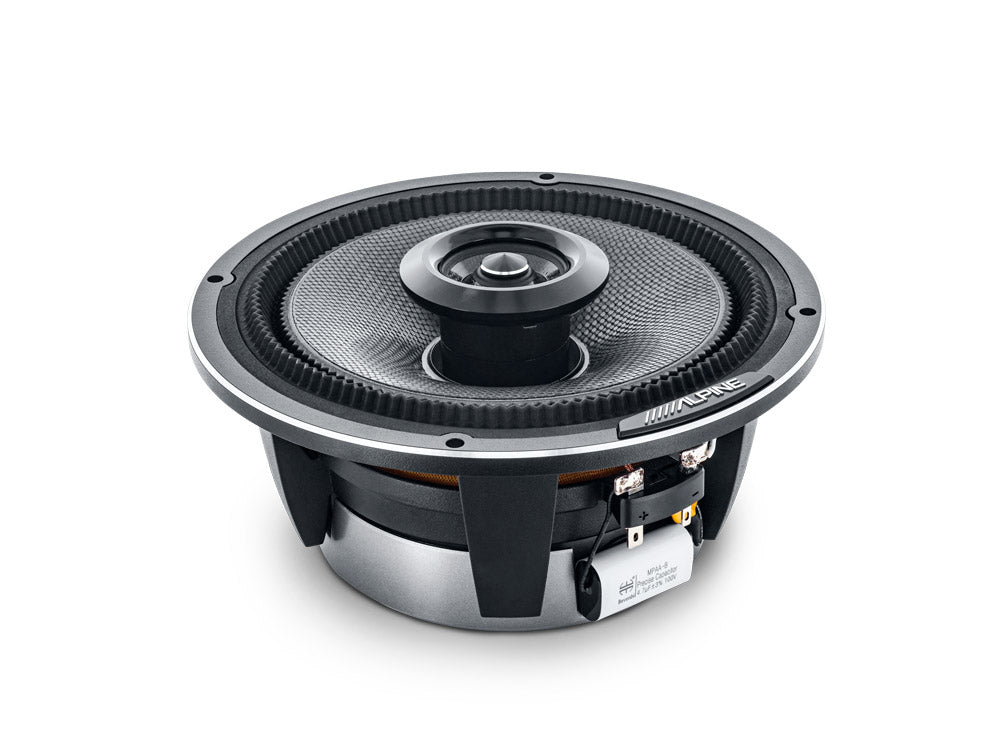

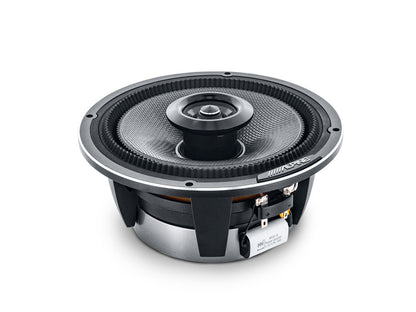

Alpine HDZ-65

Alpine introduces the all-new Alpine Status audio system: using the same technology and design concept from the third generation Ultra High-Resolution AlpineF#1Status system, Alpine has created "Alpine Status" to achieve high-resolution audio at a more accessible and affordable price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in a "stand-alone" configuration.

For the audiophile looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio compatible speakers. The HDZ-65 coaxial 2-way speakers with a high-resolution bandwidth of 55Hz – 40kHz include 170mm door woofers with integrated 40mm Slim-Fit tweeters.

All speaker cones are made from the same carbon fiber composite material to create a consistent sonic identity during playback. They are very similar in look and feel to the AlpineF#1Status speakers, with a very similar design and motor layout, as well as identical construction materials for the highest sound quality.

Hi-Res Audio certified 2-way coaxial speaker system
AlpineF#1Status speaker technology
Maximum peak power: 300 Watts
Maximum RMS power: 100 Watts
Woofer diameter: 170mm (177mm with grille fitted)
Aluminum cast baskets
Supported carbon fiber cones
Double edge
Included speaker grilles
Integrated waveguide on the tweeters

Impedance: 4Ω
Sensitivity: 88dB SPL (2.83 V @ 1 m)
Frequency response: 55Hz – 40kHz
Mounting depth: woofer 67mm / midrange 39mm
Cutout diameter: woofer 142mm / midrange 79mm
Recommended amplification: up to 100W RMS per channel
Ferrite magnet (woofer)
Neodymium magnet (midrange and tweeter)
