Alpine HCE-C1100

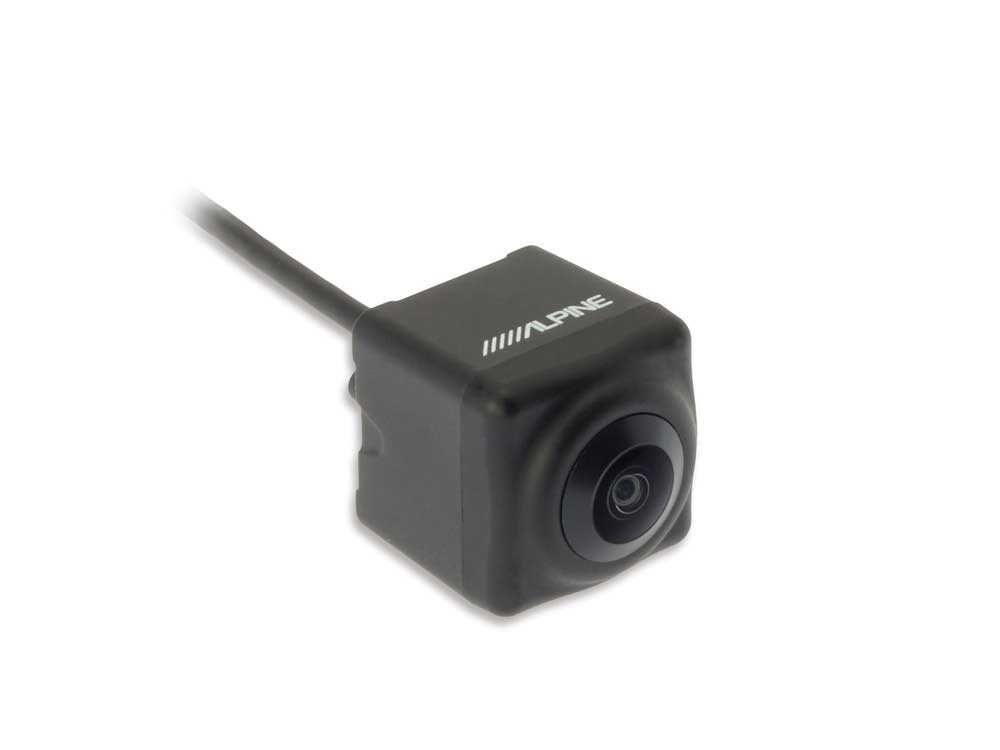

Alpine Rear View Camera HCE-C1100

A rear view camera is a great way to improve your parking skills and make reversing safer. The camera image automatically turns on when you engage reverse gear.

Thanks to HDR technology, the image quality is much better compared to conventional camera systems - for easier operation and greater safety.

The cameras are very small, so they are easy to install and do not change the appearance of the car.

Specifications:
HDR rear view image
RCA video signal output (NTSC)
Synchronization of the vehicle's reverse signal.

Camera:
Color CMOS image sensor
Automatic exposure adjustment
Automatic white balance adjustment

Measure:
Camera: 23.6 x 23.6 x 24.0 mm
Box unit: 38 x 25 x 15 mm
Camera cable length: 0.5 m
Camera extension cable length: 7m
Reverse/ACC/Video/GND cable length: 3m

Generally:
Power requirements: DC 9V to DC 15.6V
Negative ground
Power consumption: 1.2W (12V)
Operating temperature (box unit): -30 °C - +70 °C
Camera weight: 27 g (camera only)
Box weight: 83 g (including cord)

Camera:
Output image: Mirror image, composite video NTSC, aspect ratio 4:3
Output capacity: 75 ohms (1Vp-p)
Image sensor: 1/3.7 inch CMOS image sensor
Effective number of pixels: 640 (H) x 480 (V), approximately 0.3 megapixels
Lens focal length: f = 1.34 mm
Lens brightness: f = 1: 2.0
Field angle: Horizontal = 131°, Vertical = 103°
S/N ratio: 40.5 dB or more
Resolution (horizontal. center area): 330 TV lines
Operating temperature: -30°C - +70°C
Illumination range: approximately 1.5 to 100k lux
