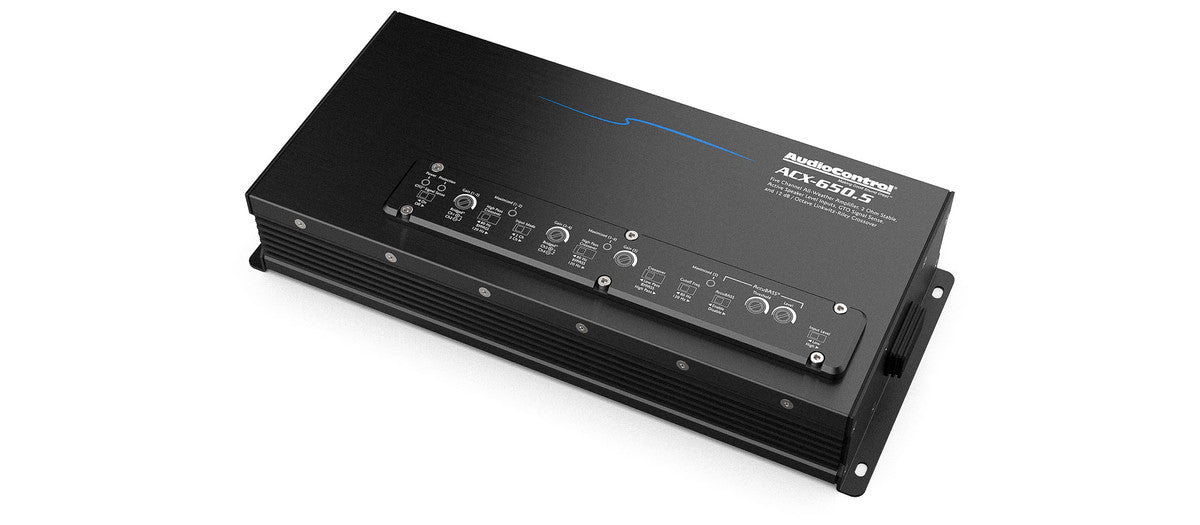

Audio Control ACX-650.5

Compact High Power 5-Channel Amplifier.

The AudioControl ACX-650.5 All-Weather Amplifier delivers honest power levels to the sound system in your boat, UTV, motorcycle and more. The ACX-650.5 will ensure your outdoor speakers deliver plenty of punch and clarity, all day long. Easy-to-install, heavy-duty quick-connect connectors make installation quick and painless, making the ACX-650.5 All-Weather Amplifier the perfect solution for your next adventure.

Inputs:
- High and low level Inputs: 6.
- Input voltage Low level: 500 mV – 6 Vrms.
- Input voltage High level: 1 Vrms – 12 Vrms.

Outputs:
- Continuous (RMS) power at 14.4V:
- 4 Ω – 50 W x 4 + 200 W x 1
- 2 Ω – 75 W x 4 + 350 W x 1
- Bridged 4 Ω – 150 W x 2

Performance:
- Frequency response: 26 Hz – 22 kHz
- Signal-to-noise ratio: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: less than 0.05%
- Crossover filter: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- IP rating: IPX6

Generally:
- Recommended fuse size: 30A

Weight and dimensions:
- Dimensions: 11.97" W x 5.31" D x 2.36" H
- Weight: 2.63 kg

What's in the box: ACX-650.5, Manual, Warranty
