FISCUBE 38359 - Audi OEM DVB-T Digital TV for MMI 3G / MMI 3G Plus

OEM-menu driven operation by using:
MMI oparation panel
Multifunctional steering wheel (if available)
No installation of additional screens, speakers or operation panels neccessary

Key Features:
E13 certification - 10R-03-12423
TV - Tuner - Emulation
Standby current < 0,01 mA
Input aerials 2x F-connector
USB connection
Dimesion (LxBxH): 11,4cm x 9,2cm x 3,1cm

USB connection:

USB connection for an external HDD* or memory stick
USB-source format using FAT32
Playing MP3 as well as Video files
Display of information about track as well as interpret on the MMI screen
Last-Position-Memory
For music files - the last listen track will start again from the beginning
For video files - will start again directly where the video has been stoped playing
Supported audio files: *.mp3, *.wav
Supported video files: *.mpg; *.dat; *.vob; *.avi (MPEG4 ASP, XviD, DivX4.0/5.0/6.0)
Recorded file format: *.mpg
DVB-T:

Integrated automotiv receiver
Record TV through USB connection
Replay of records at a later date
EPG - Electronic Program Guide (if available)
Videotext
Frequence: 145.1MHz ~ 862 MHz
Channel bandwidth: 6/7/8 MHz
Video/Audio decoding: MPEG II
No HDTV
No MPEG4
No CAM-slot for Pay-TV smart cards (e.g. needed in the Netherlands)
Resolution: 720x576 (PAL) / 720x480 (NTSC)

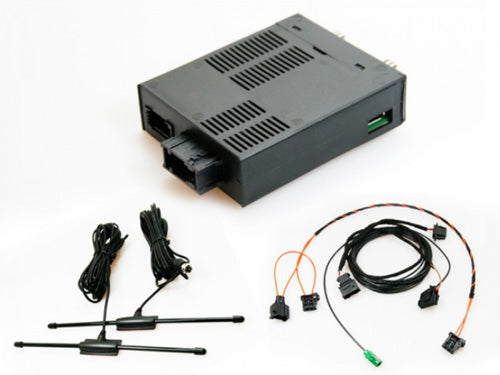

Whats Included in the Package:

FISCUBE interface
Specific wiring
2 active aerials
Why Use FISCUBE:

The FISCUBE is not only a multimedia box - but a unit that has been specifically developed to work as an OEM system. All of it's functions are integrated into the existing infotainment system of the vehicle. It is not necessary to install additional speakers, screens or separate control units in your vehicle. You get everything displayed on the original existing vehicle screen.

The CUBE is operated by using the existing car controls or can be multi-function steering wheel operated. You will not need to add any new components, such as remote control's or additional displays.

The system has a unique single box design incorporating all components, allowing for a fast and uncomplicated installation.

FISCUBE Audi OEM DVB-T Digital TV

Audi Fiscube OEM DVB-T Digital TV Compatibility Chart

Car Model Year Radio Description Notes
A4 8K vehicles with MMI High 3G (HDD) 3,4
A5 8T vehicles with MMI High 3G (HDD) 3,4
A6 4F vehicles with MMI High 3G (HDD) 3,4
A8 4E vehicles with MMI High 3G (HDD) 3,4
Q5 8R vehicles with MMI High 3G (HDD) 3,4
Q7 4L vehicles with MMI High 3G (HDD) 3,4
A6 4G vehicles with MMI High 3G Plus (HDD) 3,4
A7 4G vehicles with MMI High 3G Plus (HDD) 3,4
A8 4H vehicles with MMI High 3G Plus (HDD) 3,4
NOTE 3: Suitable for vehicles without factory fitted TV. Not suitable for vehicles with factory fitted TV or retrofitted Multimedia Adapter.In case of factory fitted TV item number 33945 needs to be used for connecting multimedia devices.


FISCUBE Audi OEM DVB-T Digital TV

Kompatibilitetsdiagram för Audi Fiscube OEM DVB-T Digital TV

Bilmodell År Radiobeskrivning Noteringar
A4 8K Fordon med MMI High 3G (HDD) 3,4
A5 8T Fordon med MMI High 3G (HDD) 3,4
A6 4F Fordon med MMI High 3G (HDD) 3,4
A8 4E Fordon med MMI High 3G (HDD) 3,4
Q5 8R Fordon med MMI High 3G (HDD) 3,4
Q7 4L Fordon med MMI High 3G (HDD) 3,4
A6 4G Fordon med MMI High 3G Plus (HDD) 3,4
A7 4G Fordon med MMI High 3G Plus (HDD) 3,4
A8 4H Fordon med MMI High 3G Plus (HDD) 3,4
NOTERING 3: Lämplig för fordon utan fabriksinstallerad TV. Inte lämplig för fordon med fabriksinstallerad TV eller retrofittad Multimediaadapter. Om fordonet har fabriksinstallerad TV krävs artikelnummer 33945 för att ansluta multimedienheter.
